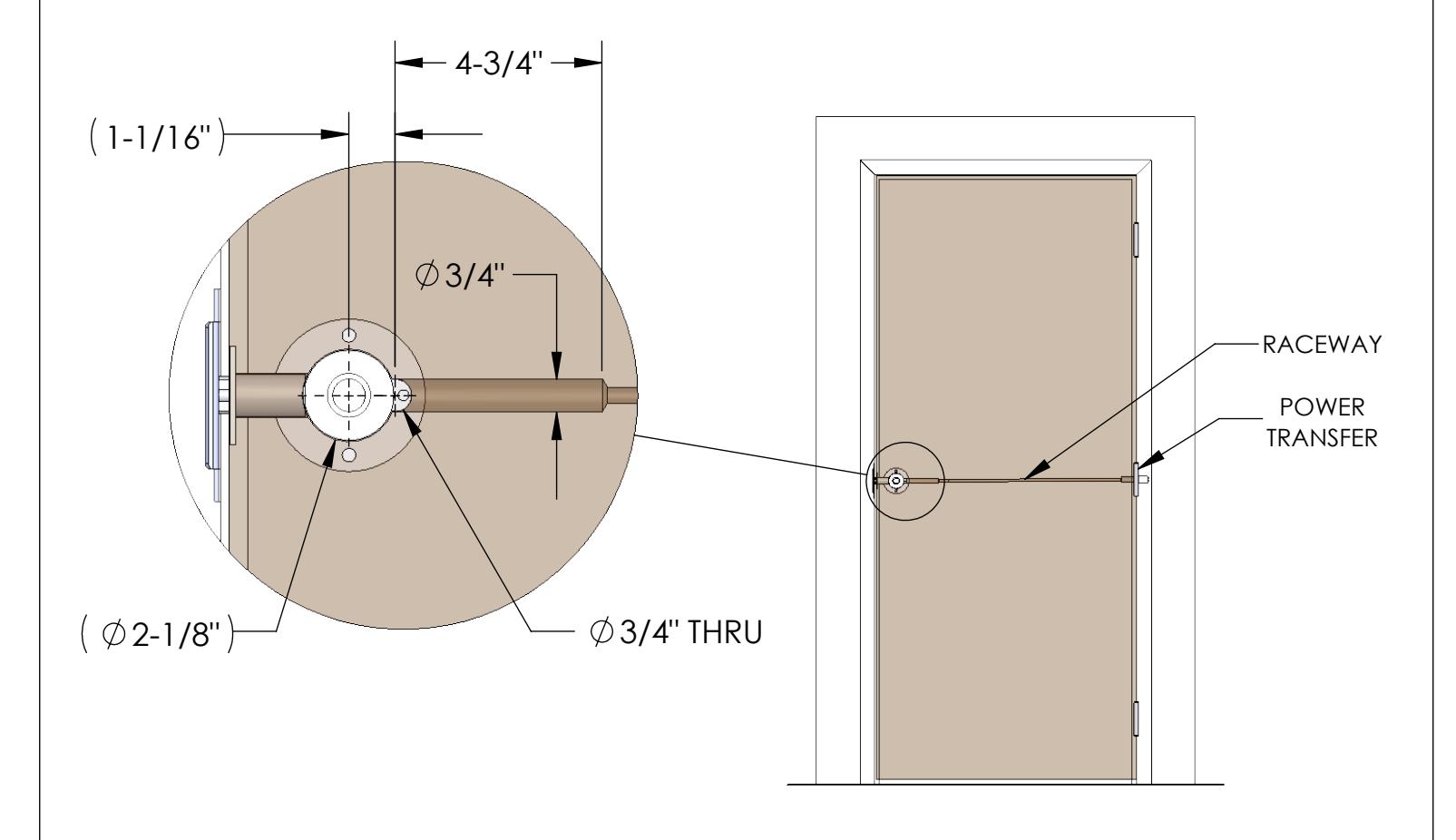

ELECTRIC CYLINDRICAL LOCK TEMPLATE DOOR PREPARATION
1500 ELECTRIC MONITOR 1510/1520 ELECTRIC LOCKING/UNLOCKING
Notes:
- 1. This door preparation is in addition to the door preparation shown on the manufacturer's mechanical cylindrical lock template.
- 2. The door manufacturer to provide the door with adequate construction and reinforcement for proper support and installation of the door hardware.
- 3. The door manufacturer to provide a 3/8" raceway through the door between the cylindrical lock and the low voltage power transfer for wire routing.
