ELECTRIC CYLINDRICAL LOCK INSTRUCTIONS MOTOR-CONTROLLED ELECTRIC LOCKING/UNLOCKING
1510 - Fail Safe (Power Lock):
Outside trim is locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of a power failure.
1520 - Fail Secure (Power Unlock):
Outside trim is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power failure.
Key Function:
The latch bolt may be momentarily retracted with a key even though the lockset is electrically locked.
Electrical Specifications:
Voltage: 12-24V AC/DC (11V - 30V)
Current: 250mA MAX Inrush, 10mA MAX Holding
Non-polarized Leads

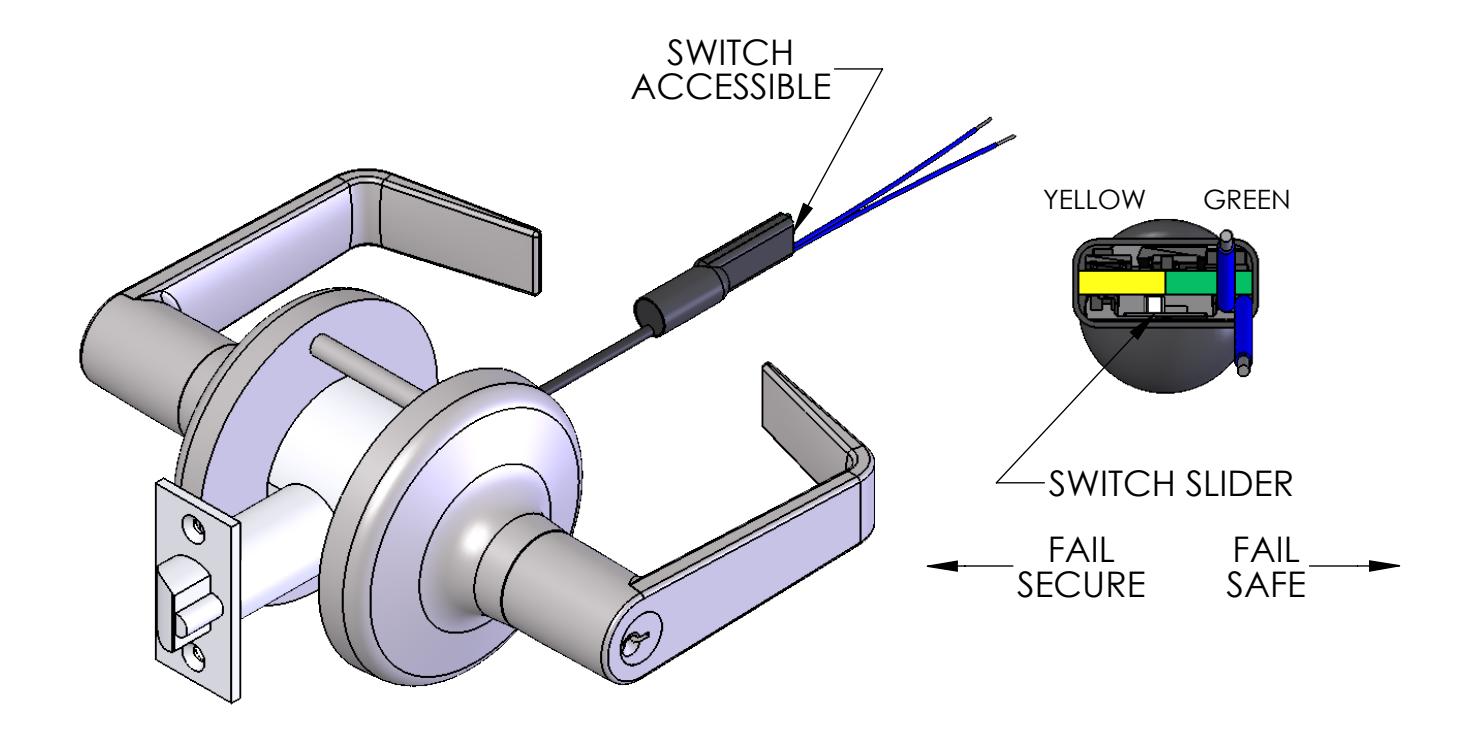

Switch Slider Settings:
Yellow: Fail Secure Green: Fail Safe
| 2-Conductor Wire Run | |
|---|---|
|
Distance
12V/24V |
Wire Gauge |
| 125'/250' | 22 |
| 200'/400' | 20 |
| 300'/600' | 18 |
| 500'/1000' | 16 |
| 750'/1500' | 14 |
| 1250'/2500' | 12 |
Note: Power must be applied to the lock after a switch slider setting change.
