ELECTRIC CYLINDRICAL LOCK INSTRUCTIONS AE - AUTHORIZED EGRESS (REQUEST-TO-EXIT)
Description:

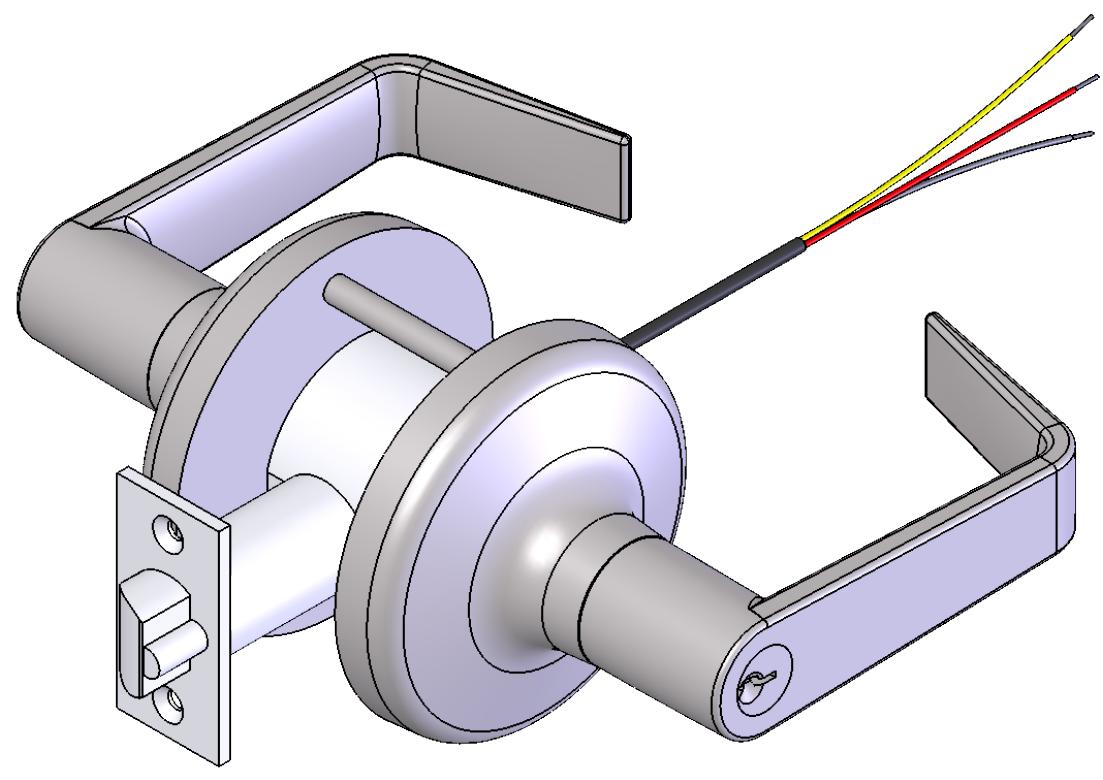

Monitors the use of the INSIDE trim.
Electrical Specifications:
SPDT Monitor Switch
Switch "A" Contacts Rated: 1A @ 250VAC
Switch "B" Contacts Rated: 3A @ 125VAC, 2A @ 30VDC
Switch "C" Contacts Rated: 0.5A @ 30VDC
Wire Color Codes:
YELLOW - Common RED - Normally Open GRAY - Normally Closed
| Manufacturer's Series | Switch |
Manufacturer's Series
Switch |
|---|---|---|
| Arrow QL | B |
PDQ GT
C |
| Corbin 3300 | B |
Sargent 10 Line
A |
| Design Hardware Z | B |
Schlage ND
A |
| Falcon T | C |
Tell LC2400
B |
| General Lock L100 | B |
Yale 5400LN
B |
| Hager 3400 | B |
