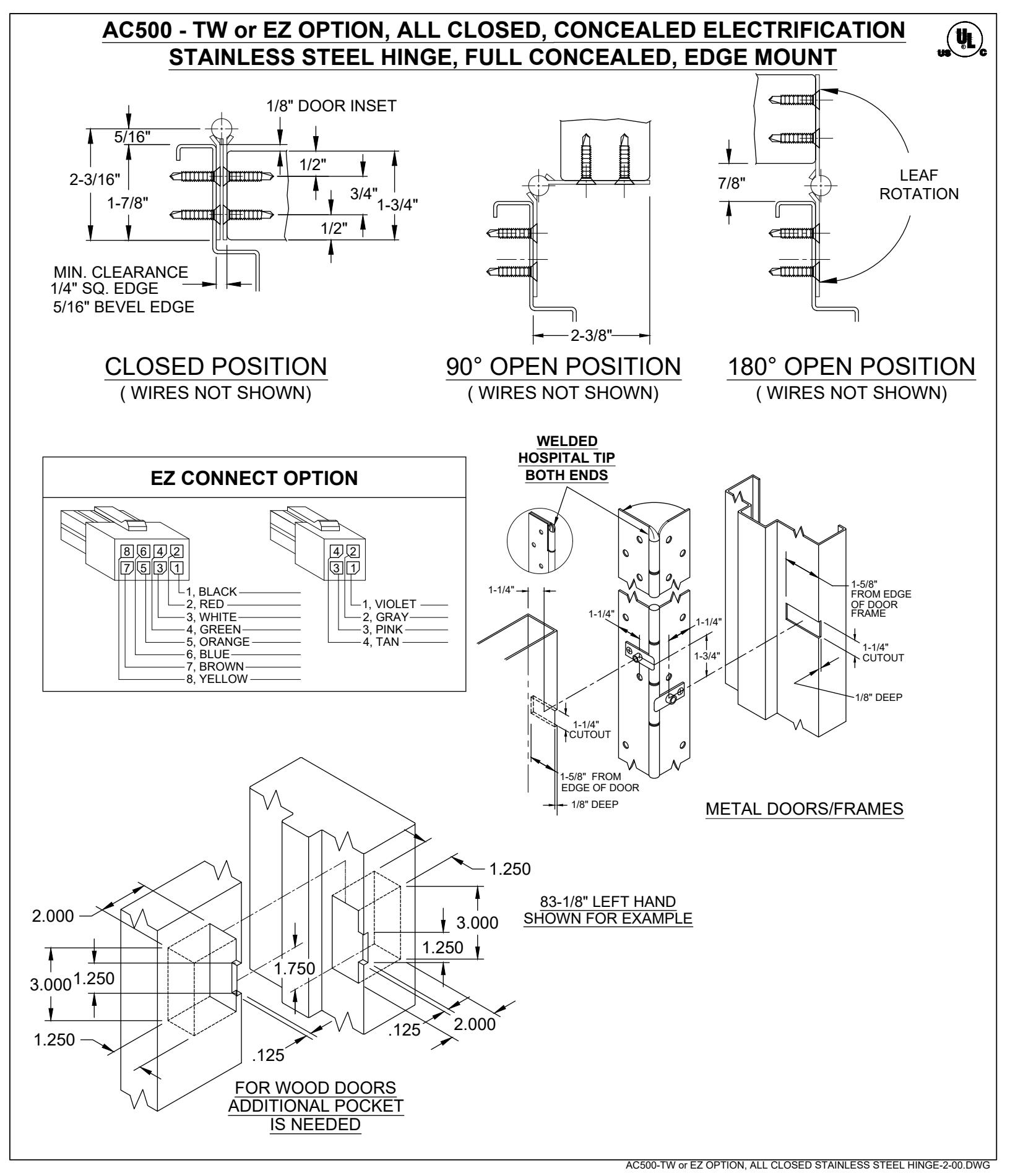

View PDFAC500 - TW or EZ OPTION, ALL CLOSED, CONCEALED ELECTRIFICATION STAINLESS STEEL HINGE, FULL CONCEALED, EDGE MOUNT
www.abhmfg.com E-mail: abhinfo@abhmfg.com 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

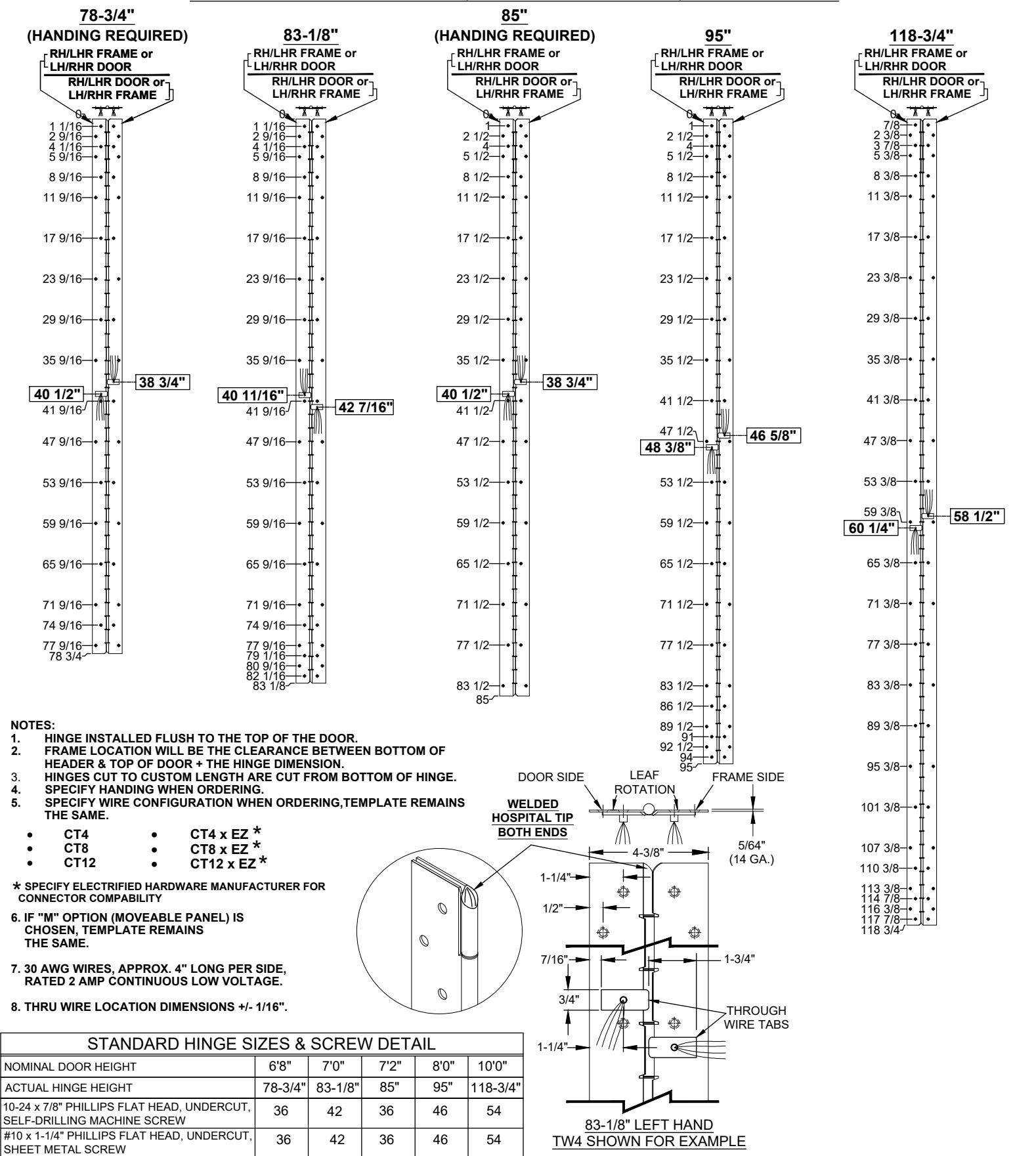

AC500-"TW" or "EZ" OPTION, ALL CLOSED CONCEALED ELECTRIFICATION
AC500-TW or EZ OPTION, ALL CLOSED STAINLESS STEEL HINGE-1-00.DWG
NOTE: THIS DRAWING IS NOT TO SCALE.
