Stainless Steel Pin & Barrel Hinge

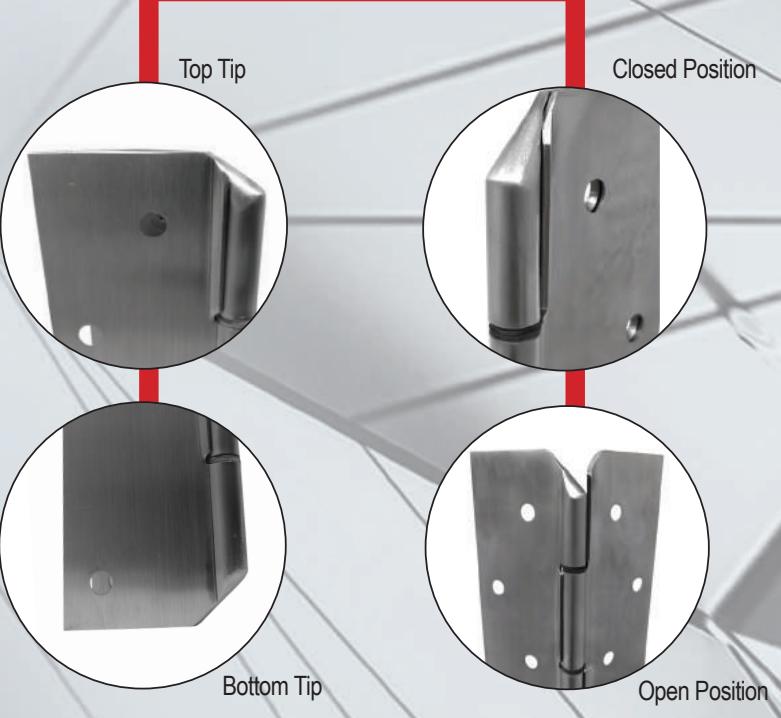

For use in behavioral health facilities, hospitals, correctional facilities, or any institution where there are ligature risks. ABH custom designed the AC500 to by using our welded hospital tip and hinge leafs with flanges to encase the barrel. While most hospital tips are designed to work only in the closed door position, this design works whether the hinge is open or closed.

Features

• Barrel cut at 45° and welded to close all gaps at the top and bottom

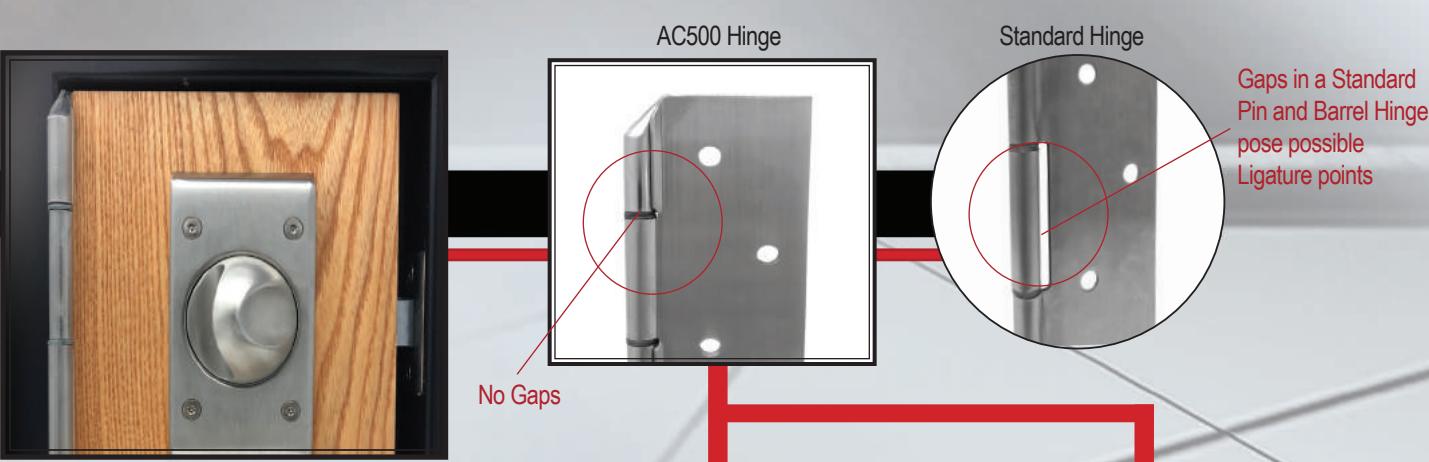

• Each barrel is encased in the hinge leaf flange to close all gaps ("No See Through" Design)
• Also available in A505 and A515 models
• PATENT PENDING

Technical Specifications:

Hinge Material: 304 Stainless Steel

Finishes: Satin Stainless –

Other Finishes by Request

Fasteners: Pin-In-Torx Screws

Meets ANSI BHMA 156.26 Grade 1

Notes:

Behavioral health product applications are intended to provide a safer solution than traditional applications, they do not eliminate risk.

https://omh.ny.gov/omhweb/patient_safety_standards/guide.pdf
