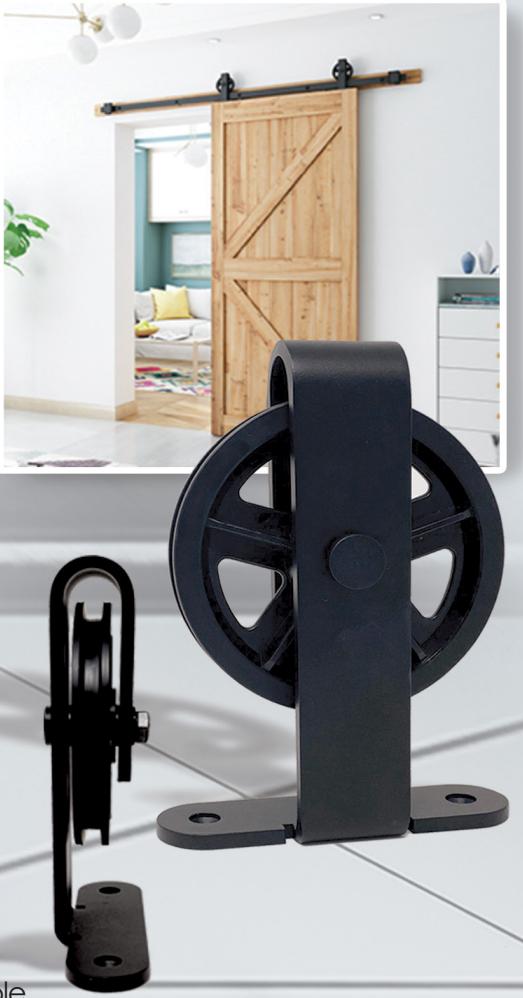

Sliding Door System

Configurations:

• Single
• • SDS1060-For 36" Openings
• • SDS1080-For 48" Openings

Track Lengths Supplied

• SDS1060- 78-3/4"
• SDS1080- 102-3/4"( 78-3/4" + 24")

Features:

• Solid steel wheel with a polymer resin contact surface for smooth operation
• Door Thickness 1-3/8", 1-3/4", 2-1/4"
• Product Weight 17 lbs.
• 250 lb. panel capacity
• 5 year warranty
• Soft Close Option Available "SC"

Finishes:

• Black Powder Coated
• Custom Powder Coated Options Available Concact Factory (Add Prefix "C") to beginning of part #. (Example: CSDS-1060)

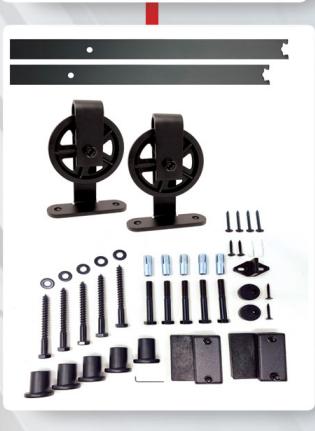

Kits include:

• 2 ea. Steel Flat Track
• 5 ea. Steel Track Brackets
• 2 ea. Steel Top Mount Rollers
• 2 ea. Anti-Jump Blocks
• 2 ea. Steel Track Stops
• 1 ea. Sliding Door Guide
• Mounting Fasteners
