ABH Overhead Stop & Holder Compatibility Chart
Open the original PDF document
View PDFCORBIN-RUSSWIN CLOSER X ABH HOLDER COMPATIBILITY CHART
BASED ON 36" DOORS, 90 DEG. OPENING, BUTT HINGES
| CONCEALED | SURFACE | |||||||
| CORBIN-RUSSWIN CLOSER |
1000
1000 ADJ |
1000SL
1000SA |
4000 | 4400 | 7000 |
8000 &
HD8000 |
9000 | 9000A |
| DC6200/DC6400 (Reg. Arm) | No | No | Yes | Yes | Yes/2,3 | Yes | Yes | Yes |
| DC6200/DC6400 (Reg. Arm) x 294F40 | Yes/4 | Yes | Yes | Yes | Yes/3 | Yes/2 | Yes/2 | Yes/2 |
| DC6210/DC6410 (Par.Arm) | Yes | Yes | Yes | No | No | No | No | No |
| DC6210/DC6410 (Par.Arm) x A13 | Yes | Yes | Yes | Yes/1 | Yes | No | No | No |
| DC6210/DC6420 (Par.Arm) x M83 | Yes | Yes | Yes | Yes/1 | Yes | No | No | No |
| DC6220-DC6420 (Top Jamb) | No | Yes | Yes | No | No | No | No | No |
| DC6220/DC6420 (Top Jamb) x Drop Plate | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
| DC3200 (Reg. Arm) | No | No | Yes | Yes | Yes/2,3 | Yes | Yes | Yes |
| DC3210 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| DC3210 (Par. Arm) x M83 | Yes | Yes | Yes | Yes/1 | Yes | Yes | Yes/1 | Yes/1 |
| DC3220 (Top Jamb) | No | Yes | Yes | No | No | No | No | No |
| DC3220 (Top Jamb) x Drop Plate | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
| DC8200 (Reg. Arm) | No | Yes | Yes | Yes | Yes/2,3 | Yes/2 | Yes | Yes |
| DC8200 (Reg. Arm) x 754F24 Plate | Yes | Yes | Yes | Yes | Yes/3 | Yes/2 | Yes/2 | Yes/2 |
| DC8210 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| DC8210 (Par. Arm) x A13 | Yes | Yes | Yes | Yes/1 | No | No | Yes/1 | No |
| DC8210 (Par. Arm) x M83 | Yes | Yes | Yes | Yes/1 | No | No | Yes/1 | No |
| DC8220 (Top Jamb) | No | Yes | Yes | No | No | No | No | No |
| DC8220 (Top Jamb) x Drop Plate | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
1- Minimum 2-7/16" stop width required to install closer bracket and overhead holder bracket in same location
FOR SOME PARALLEL ARM INSTALLATIONS "NO" IS LISTED BECAUSE THE LOCATION OF THE OVERHEAD HOLDER/STOP BRACKET WILL INTERFERE WITH THE PA BRACKET REV 5/15
2- For interference with Holder SNB and Closers or Back Plates, see ABH Template T-CC
3- For 7000 Series, door portion must be mounted with SNB.
4- Back plate inverted
DORMA CLOSER X ABH HOLDER COMPATIBILITY CHART
BASED ON 36" DOORS, 90 DEG. OPENING, BUTT HINGES
| CONCEALED | SURFACE | |||||||
|---|---|---|---|---|---|---|---|---|
| DORMA CLOSER |
1000
1000ADJ |
1000SL
1000SA |
4000 | 4400 | 7000 |
8000 &
HD8000 |
9000 | 9000A |
| 8900x AF90 (Reg. Arm) | No | No | No | Yes/2 | Yes/2,3 | Yes/2 | Yes/2 | Yes/2 |
| 8900 x AF90 (Reg. Arm) x BP89 | No | No | Yes | Yes/2 | Yes/2,3 | Yes/2 | Yes/2 | Yes/2 |
| 8900 x AF89P (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 8900 x PDx AF89 (Par. Arm) | Yes | Yes | Yes | Yes/1 | Yes | No | No | No |
| 8900 x AF89J (Top Jamb) | No | Yes | Yes | Yes | No | No | No | No |
| 8900 x BP89 Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | No | No | No |
| 8600 x AF86 (Reg. Arm) | No | Yes | No | Yes/2 | Yes/2 | Yes/2 | Yes/2 | Yes |
| 8600 x AF86 (Reg. Arm) x BP86 | No | No | Yes | Yes/2 | Yes/2,3 | Yes/2 | Yes/2 | Yes |
| 8600 x AF86P (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 8600 x PD (Par. Arm) | Yes | Yes | Yes | Yes/1 | No | No | No | No |
| 8600 x AF86J (Top Jamb) | No | Yes | Yes | Yes | No | No | No | No |
| 8600 x DP86 Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
| 7400 x AR (Reg. Arm) | No | Yes | No | Yes/2 | Yes/2 | Yes/2 | Yes/2 | Yes |
| 7400 x AR (Reg. Arm) x BP74 | No | No | Yes | Yes/2 | Yes/2,3 | Yes/2 | Yes/2 | Yes |
| 7400 x ARP (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 7400 x PD (Par. Arm) | Yes | Yes | Yes | Yes/1 | Yes | Yes | No | No |
| 7400 x ARJ (Top Jamb) | No | Yes | Yes | Yes | No | No | No | No |
| 7400 x DP74 Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
| 7300 x AR (Reg. Arm) | No | Yes | Yes | Yes/2 | Yes/2,3 | Yes | Yes | Yes |
| 7300 x AR (Reg. Arm) x BP73 | No | Yes | Yes | Yes/2 | No | Yes/2 | Yes/2 | Yes/2 |
| 7300 x ARP (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 7300 x PD (Par. Arm) | Yes | Yes | Yes | Yes/1 | Yes | Yes | No | No |
| 7300 x ARJ (Top Jamb) | No | Yes | Yes | No | No | No | No | No |
| 7300 x DP73 Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | Yes | No | No |
1- Minimum 2-7/16" stop width required to install closer bracket and overhead holder bracket in same location
FOR SOME PARALLEL ARM INSTALLATIONS "NO" IS LISTED BECAUSE THE LOCATION OF THE OVERHEAD HOLDER/STOP BRACKET WILL INTERFERE WITH THE PA BRACKET Rev 5/15
2- For interference with Holder SNB and Closers or Back Plates, see ABH Template T-CC
3- For 7000 Series, door portion must be mounted with SNB.
4- Back Plate Inverted
LCN CLOSER X ABH HOLDER COMPATIBILITY CHART
BASED ON 36" DOORS, 90 DEG. OPENING, BUTT HINGES
| CONCEALED | SURFACE | |||||||
|---|---|---|---|---|---|---|---|---|
| 1000 | 1000SL | 8000 & | ||||||
| LCN CLOSER | 1000ADJ | 1000SA | 4000 | 4400 | 7000 | HD8000 | 9000 | 9000A |
| 4040 (Reg. Arm) | No | No | Yes | Yes | Yes/2,3 | Yes | Yes | Yes |
| 4040 (Reg. Arm) x 4040-18 | Yes/4 | Yes/4 | Yes | Yes | Yes/2,3 | Yes | Yes | Yes |
| 4040P (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 4040P (Par. Arm) x 62A | Yes | Yes | Yes | Yes/1 | Yes | No | Yes/1 | Yes/1 |
| 4040TJ (Top Jamb) | No | No | Yes | Yes | No | No | No | No |
| 4040TJ (Top Jamb) x 4040-18G | Yes | Yes | Yes | Yes | Yes | No | No | No |
| 4010 (Reg. Arm) | No Yes/1000SL | Yes | Yes | Yes/2,3 | Yes/2 | Yes/2 | Yes | |
| 4010 (Reg. Arm) x 4020-18 | Yes/4 | No | Yes | Yes | Yes/3 | Yes | Yes | Yes |
| 4110 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 4110 (Par. Arm) x 62G | Yes | Yes | Yes | No | No | No | No | No |
| 4020 (Top Jamb) | No | Yes | Yes | No | No | No | No | No |
| 4020 (Top Jamb) x 4020-18G | Yes | Yes | Yes | Yes | No | No | No | No |
| 1461R (Reg. Arm) | No | No | Yes | Yes/2 | Yes/2,3 | Yes/2 | Yes/2 | Yes |
| 1461R (Reg. Arm) X 1461-18 | Yes/4 | Yes/4 | Yes/4 | Yes | Yes/3 | Yes | Yes/2 | Yes |
| 1461P (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 1461P (Par. Arm) x 62A | Yes | Yes | Yes | Yes/1 | No | No | Yes/1 | Yes/1 |
| 1461TJ (Top Jamb) | No | Yes | Yes | No | No | No | No | No |
| 1461TJ (Top Jamb) x 1461-18 | Yes | Yes | Yes | Yes | Yes | No | No | No |
| 1261R (Reg. Arm) | No | Yes | No | Yes/2 | Yes/2,3 | Yes/2 | Yes/2 | Yes |
| 1261R (Reg. Arm) x 1260-18 | Yes/4 | Yes/4 | Yes/4 | Yes | Yes/3 | Yes/2 | Yes | Yes |
| 1261P (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 1261P (Par Arm) x 62A | Yes | Yes | Yes | Yes/1 | No | No | Yes/1 | Yes/1 |
| 1261TJ (Top Jamb) | No | Yes | Yes | No | No | No | No | No |
| 1261TJ (Top Jamb) x 1261-18 | Yes | Yes | Yes | Yes | No | No | No | No |
1- For Stop widths up to and including 3-1/4" wide, 62A and 62G shoes are always mounted in the rabbet opposite the door.
FOR SOME PARALLEL ARM INSTALLATIONS "NO" IS LISTED BECAUSE THE LOCATION OF THE OVERHEAD HOLDER/STOP BRACKET WILL INTERFERE WITH THE PA BRACKET REV 5/15
2- For interference with Holder SNB and Closers or Back Plates, see ABH Template T-CC
3- 7000 Series door portion must be mounted with SNB.
4- Back plate inverted
LCN CLOSER X ABH HOLDER COMPATIBILITY CHART
BASED ON 36" DOORS, 90 DEG. OPENING, BUTT HINGES
| CONCEALED | SURFACE | |||||||
|---|---|---|---|---|---|---|---|---|
| LCN CLOSER |
1000
1000ADJ |
1000SL
1000SA |
4000 | 4400 | 7000 |
8000 &
HD8000 |
9000 | 9000A |
| 4031 (Reg. Arm) | No | No | Yes | Yes | Yes/2,3 | Yes | Yes/2 | Yes/2 |
| 4030P (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 4030P (Par. Arm) x 62A | Yes | Yes | Yes | Yes/1 | Yes | Yes | Yes/1 | Yes/1 |
| 4030TJ (Top Jamb) | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| 4030TJ (Top Jamb) x 4030-TJ | Yes | Yes | Yes | Yes | No | No | No | No |
| 4210 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| 4210 (Par. Arm) x 4110-18 | Yes/4 | Yes | Yes | No | No | No | No | No |
| 4510 (Reg. Arm) | No | No | Yes | Yes** | Yes**/*** | Yes | Yes** | Yes** |
| 4510 (Reg. Arm) x 4010-18 | Yrs/4 | Yes/4 | Yes/4 | Yes** | Yes*** | Yes** | Yes** | Yes** |
- 1- For Stop widths up to and including 3-1/4" wide, 62A and 62G shoes are always mounted in the rabbet opposite the door.
- 2- For interference with Holder SNB and Closers or Back Plates, see ABH Template T-CC
- 3- 7000 Series door portion must be mounted with SNB.
- 4- Back plate inverted
FOR SOME PARALLEL ARM INSTALLATIONS "NO" IS LISTED BECAUSE THE LOCATION OF THE OVERHEAD Rev 5/15 HOLDER/STOP BRACKET WILL INTERFERE WITH THE PA BRACKET
NORTON/YALE CLOSER X ABH HOLDER COMPATIBILITY CHART
BASED ON 36" DOORS, 90 DEG. OPENING, BUTT HINGES
| CONCEALED | SURFACE | |||||||
|---|---|---|---|---|---|---|---|---|
| NORTON-YALE CLOSER |
1000
1000ADJ |
1000SL
1000SA |
4000 | 4400 | 7000 |
8000 &
HD8000 |
9000 | 9000A |
| 7500/4400 (Reg. Arm) | No | No | No | Yes/3 | Yes/3.5 | Yes/3 | Yes/3 | Yes/3 |
| 7500/4400 (Reg Arm x 7786HO Plate) | Yes/3,4 | Yes/3,4 | Yes/3,4 | Yes/3.4 | Yes/3.4.5 | Yes/3,4 | Yes/3,4 | Yes/3,4 |
| P7500/P4400 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| P7500/P4400 x 2018S/290 (Par. Arm) | Yes | Yes | Yes | Yes/2 | Yes/2 | Yes/2 | Yes/2 | No |
| J7500/TJ4400 (Top Jamb) | Yes | Yes | Yes | No | No | No | No | No |
| J7500/TJ4400 x 7787/487 Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
| 7700/400 (Reg. Arm) | No | No | No | Yes | Yes/3,5 | Yes/3 | Yes/3 | Yes/3 |
| 7700/400 (Reg Arm x 7786HO Plate) | Yes/3,4 | Yes/4 | Yes/4 | Yes/4 | Yes/3,4,5 | Yes//3.4 | Yes/1,3,4 | Yes/3 |
| R7700/P400 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| P7700/P400 x 2018S-290 (Par. Arm) | Yes | Yes | Yes | Yes/2 | Yes/2 | Yes/2 | Yes/2 | No |
| J7700/TJ400 (Top Jamb) | Yes | Yes | Yes | No | No | No | No | No |
| J7700/TJ400 x 7787/487 Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
| 8000/3000 (Reg. Arm) | No | No | No | Yes/3 | Yes/3,5 | Yes/3 | Yes/3 | Yes/3 |
| 8000/3000 (Reg. Arm x 8146 Plate) | Yes/3 | Yes/3 | Yes | Yes/4 | Yes/3,4,5 | Yes/3,4 | Yes/1,3,4 | Yes/1,3,4 |
| P8000/P3000 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No |
| P8000/P3000 x 2018S/290 (Par. Arm) | Yes | Yes | Yes | Yes/2 | Yes/2 | Yes/2 | Yes/2 | No |
| J8000/J3000 (Top Jamb) | Yes | Yes | Yes | No | No | No | No | No |
| J8000/J3000 x 8146/3146 Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 1600/50BC (Reg. Arm) | No | No | No |
Y
e Yes/3 |
Yes/3,5 | Yes/3 | Yes | Yes |
| P1600/P50BC (Par. Arm) | Yes | Yes | Yes | No | No | No | No | Yes/1,3,4 |
| P1600/P50BC x 2018S/290 (Par. Arm) | Yes | Yes | Yes | Yes/2 | Yes/2 | No | Yes | No |
| J1600/TJ50BC (Top Jamb) | No | Yes | No | No | No | No | No | No |
| J1600/TJ50BC x 1688/214 Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
FOR SOME PARALLEL ARM INSTALLATIONS "NO" IS LISTED BECAUSE THE LOCATION OF THE OVERHEAD HOLDER/STOP BRACKET WILL
INTERFERE WITH THE PA BRACKET
- 1- Do not use SNB to mount back plates
- 2- Minimum 2-7/16" stop width required to install closer bracket and overhead holder bracket in same location
- 3- For interference with Holder SNB and Closers/Back Plates, see ABH Template T-CC
- 4- Back plate inverted
- 5- For 7000 use SNB only REV 5/15
NORTON/YALE CLOSER X ABH HOLDER COMPATIBILITY CHART
BASED ON 36" DOORS, 90 DEG. OPENING, BUTT HINGES
| CONCEALED | SURFACE | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| NORTON |
1000
1000ADJ |
1000SL
1000SA |
4000 | 4400 | 7000 |
8000 &
HD8000 |
9000 | 9000A | |
| 1700 (Reg Arm) | No | No | No | Yes/3 | Yes 3/5 | Yes/3 | Yes/3 | Yes | |
| 1700 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No | |
| 1700 (Par Arm) x 1748 Drop Plate | Yes/4 | Yes/4 | Yes | No | No | No | No | No | |
| 1700 (Top Jamb) | No | No | Yes | No | No | No | No | No | |
| 1700 (Top Jamb) x 1746 Drop Plate | Yes | Yes | Yes | No | No | No | No | No | |
| 9300BC (Reg Arm) | No | No | Yes | Yes/3 | Yes/3 | Yes/3 | Yes/3 | Yes | |
| 9300BC (Par Arm) | Yes | Yes | Yes | No | No | No | No | No | |
| 9300 (Par Arm) x 9388 Drop Plate | Yes/4 | Yes | Yes | No | No | No | No | No | |
| 9300BC (Top Jamb) | No | Yes | Yes | No | No | No | No | No | |
| 9300 (Top Jamb) x 9388 Drop Plate | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| 9500 (Reg Arm) | No | Yes | Yes | Yes/3 | Yes/3,5 | Yes/3 | Yes/3 | Yes/3 | |
| 9500 (Reg Arm) x 9586 Drop Plate | Yes/4 | Yes/4 | Yes/4 | Yes/3 | Yes/3.5 | Yes/3 | Yes/3 | Yes | |
| 9500 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No | |
| 9500 (Par. Arm) x 9588 Drop Plate | Yes/4 | Yes/4 | Yes | No | No | No | No | No | |
| 9500 (Top Jamb) | No | Yes | Yes | No | No | No | No | No | |
FOR SOME PARALLEL ARM INSTALLATIONS "NO" IS LISTED BECAUSE THE LOCATION OF THE OVERHEAD HOLDER/STOP BRACKET WILL INTERFERE WITH THE PA BRACKET
- 1- Do not use SNB to mount back plates
- 2- Minimum 2-7/16" stop width required to install closer bracket and overhead holder bracket in same location
- 3- For interference with Holder SNB and Closers/Back Plates, see ABH Template T-CC
- 4- Back plate inverted
5- For 7000 use SNB only REV 5/15
SARGENT CLOSER X ABH HOLDER COMPATIBILITY CHART
BASED ON 36" DOORS, 90 DEG. OPENING, BUTT HINGES
| CONCEALED | SURFACE | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SARGENT CLOSER |
1000
1000ADJ |
1000SL
1000SA |
4000 | 4400 | 7000 |
8000 &
HD8000 |
9000 | 9000A | |
| 281-O (Reg. Arm) | No | Yes | No | Yes | Yes/5 | Yes/3 | Yes/3 | Yes/3 | |
| 281-0 (Reg. Arm) x 281-B** | Yes/4 | Yes/4 | Yes/4 | Yes/4 | Yes/3,4,5 | Yes/3,4 | Yes/3,4 | Yes | |
| 281-P9 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No | |
| 281-P3 (Par. Arm)* | Yes | Yes | Yes | Yes | Yes | No | Yes | No | |
| 281-O (Top Jamb) | No | Yes | Yes | No | No | No | No | No | |
| 281-OZ x 281B Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes | |
| 351-O (Reg. Arm) | No | No | No | Yes/3 | Yes/3,5 | Yes/3 | Yes | Yes | |
| 351-O (Reg. Arm) x 351-B** | Yes/4 | Yes/4 | Yes/4 |
No
Yes/3,4 |
Yes/3,4 | Yes/3,4 | Yes/3,4 | Yes/3,4 | |
| 351-P9 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No | |
| 351-P3 (Par. Arm)* | Yes | Yes | Yes | Yes/1 | Yes/1 | No | Yes/1 | Yes/1 | |
| 351-O (Top Jamb) | No | Yes | Yes | No | No | No | No | No | |
| 351-OZ x 351B Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | Yes/3 | Yes | No | |
| 1431-O (Reg. Arm) | No | Yes | No | Yes | Yes | Yes/3 | Yes/3 | Yes | |
| 1431-O (Reg. Arm) x 1430-B** | Yes/4 | Yes/4 | Yes/4 | Yes/3,4 | Yes/5 | Yes/3,4 | Yes/3 | Yes/4 | |
| 1431-P9 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No | |
| 1431-P3 (Par. Arm)* | Yes | Yes | Yes | Yes/1 | Yes/1 | No | Yes/1 | Yes/1 | |
| 1431-O (Top Jamb) | No | Yes | Yes | No | No | Yes | No | No | |
| 1431TJ x 18 Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes | |
| 1331-JO (Reg. Arm) | No | Yes | No | Yes | Yes/3,5 | Yes/3 | Yes/3 | Yes | |
| 1331-JO (Reg. Arm) x 1330-B** | Yes/4 | Yes/4 | Yes/4 | Yes/3,4 | Yes/4,5 | Yes/2,3,4 | Yes/2,3,4 | Yes/2,4 | |
| 1331-JP9 (Par. Arm) | Yes | Yes | Yes | No | No | No | No | No | |
| 1331-JO (Top Jamb) | Yes | Yes | Yes | No | No | No | No | No | |
| 1331-JO x 1331B Drop Plate (Top Jamb) | Yes | Yes | Yes | Yes | No | No | Yes | No | |
FOR SOME PARALLEL ARM INSTALLATIONS "NO" IS LISTED BECAUSE THE LOCATION OF THE OVERHEAD HOLDER/STOP BRACKET WILL INTERFERE WITH THE PA BRACKET
- 1- Minimun 3" stop width required to install closer bracket and overhead holder backet in same location.
- 2. Do not use SNB to mount back plates
- 3- For interference with Holder SNB and Closers/Back Plates, see ABH Template T-CC
- 4- Back plate inverted
- 5- For 7000 use SNB only REV 5/15
STANLEY CLOSER X ABH HOLDER COMPATIBILITY CHART
BASED ON 36" DOORS, 90 DEG. OPENING, BUTT HINGES
| CONCEALED | SURFACE | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1000 | 1000SL | 8000 & | |||||||
| STANLEY CLOSER | 1000ADJ | 1000SA | 4000 | 4400 | 7000 | HD8000 | 9000 | 9000A | |
| D-3550/D-3551 REG. ARM | No | Yes | No | Yes/3 | Yes3/5 | Yes/3 | Yes/3 | Yes/3 | |
| D-3550/D-3551 REG. ARM W/P35-180 | Yes/4 | Yes/4 | Yes/4 | Yes/1,3 | Yes/3 | Yes/1,3 | Yes/1,3 | Yes/1,3 | |
| D-3500/D-3551PA ARM | Yes | Yes | Yes | No | No | No | No | No | |
| D-3550/D-3551 PA W/P45-113 | Yes | Yes | Yes | Yes/2 | Yes/2 | Yes/2 | Yes/2 | Yes/2 | |
| D-3500/D-3551 TJ | No | Yes | Yes | No | No | No | No | No | |
| D-3550/D-3551 HD ARM | Yes | Yes | Yes | No | No | No | No | No | |
| D-4550/D-4551 REG. ARM | No | No | No | Yes | Yes/5 | Yes/3 | Yes | Yes | |
| D-4550/D-4551 REG. ARM W/P45-180 | Yes/4 | Yes/4 | Yes/4 | Yes/3 | No | Yes/1,3 | Yes/1,3 | Yes/1,3 | |
| D-4550/D-4551PA ARM | Yes | Yes | Yes | No | No | No | No | No | |
| D-4550/D-4551 PA W/P45-113 | Yes | Yes | Yes | Yes/2 | Yes/2 | Yes/2 | Yes/2 | Yes/2 | |
| D-4550/D-4551 TJ | No | Yes | Yes | No | No | No | No | No | |
| D-4550/D-4551 HD ARM | Yes | Yes | Yes | No | No | No | No | No | |
| D-1650/D-1651 REG. ARM | No | No | No | Yes | Yes/5 | Yes | Yes | Yes | |
| D-1650/D-1651 PA ARM | Yes | Yes | Yes | No | No | No | No | No | |
| D-1650/D-1651 TJ | No | Yes | Yes | No | No | No | No | No | |
| QDC100 REG. ARM | No | No | Yes | Yes | Yes/5 | Yes | Yes/3 | Yes | |
| QDC100 REG. ARM W/8Q00469 | Yes/4 | Yes/4 | Yes/4 | Yes/1 | Yes/5 | Yes | Yes/1,3 | Yes/1,3 | |
| QDC100 PA ARM | Yes | Yes | Yes | No | No | No | No | No | |
| QDC100 TJ | No | No | Yes | No | No | No | No | No | |
| QDC100 TJ W/8Q00470 | Yes | Yes | Yes | Yes | No | No | No | No | |
| QDC100 EDA ARM | Yes/2 | Yes/2 | Yes | No | No | No | No | No | |
| QDC200 REG. ARM | No | Yes | No | Yes | Yes/2,3,5 | Yes/3 | Yes/3 | Yes | |
| QDC200 REG. ARM W/8Q00107 | Yes/4 | Yes/4 | Yes/4 | Yes/1,3 | Yes/1,5 | Yes/1,3 | Yes/1,3 | Yes/1 | |
| QDC200 PA ARM | Yes | Yes | Yes | No | No | No | No | No | |
| QDC200 TJ | No | No | Yes | No | No | No | No | No | |
| QDC200 TJ W/8Q00105 | Yes | Yes | Yes | Yes | No | No | Yes | Yes | |
| QDC300 REG. ARM | No | Yes | No | Yes | Yes/2,3,5 | Yes/3 | Yes/3 | Yes | |
| QDC300 REG. ARM W/8Q00103 | Yes/4 | Yes/4 | Yes/4 | Yes/1,3 | Yes/1,3,5 | Yes/1,3 | Yes/1,3 | Yes/1 | |
| QDC300 PA ARM | Yes | Yes | Yes | No | No | No | No | No | |
| QDC300 TJ | No | No | Yes | No | No | No | No | No | |
| QDC300 TJ W/8Q00104 | Yes | Yes | Yes | Yes | No | No | Yes | Yes | |
FOR SOME PARALLEL ARM INSTALLATIONS "NO" IS LISTED BECAUSE THE LOCATION OF THE OVERHEAD HOLDER/STOP BRACKET WILL
2.Min 2-7/16" stop width reqd to install closer bracket & OH holder bracket in same location
- 3- For interference with Holder SNB and Closers/Back Plates, see ABH Template T-CC
- 4- Back plate inverted
- 5- For 7000 use SNB only REV 5/15
INTERFERE WITH THE PA BRACKET 1- Do not use SNB to mount back plates

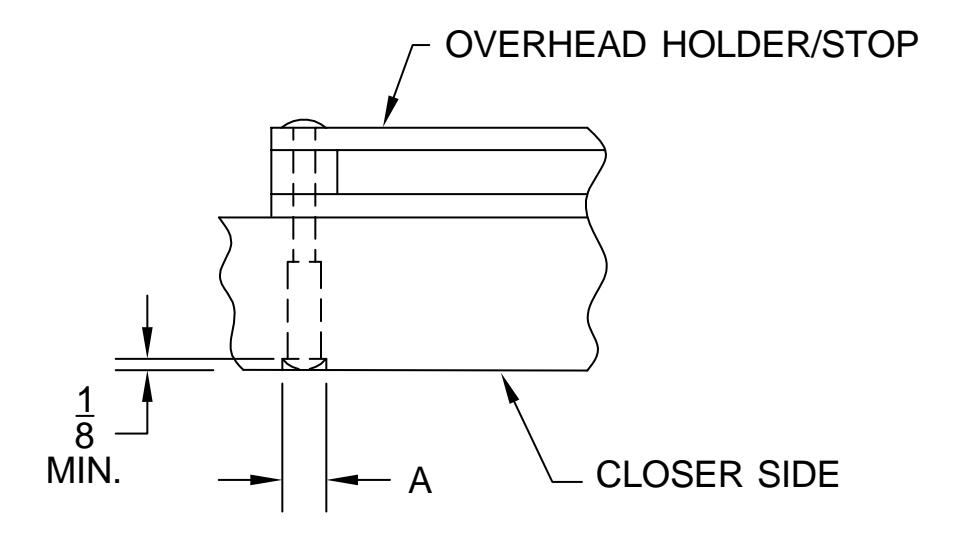

SNB HEAD RECESSED INTO WOOD DOOR WHEN CONFLICTS OCCUR
| MODEL | А |
|---|---|
| 3300ADJ, 4400, | 5/8" DIA. |
| 7000, 8000*, HD8000* | 11/16"DIA. |
| 9000, 9000ADJ | 7/8" DIA. |
*HOLD OPEN MODEL CANNOT BE MOUNTED ON PULL SIDE

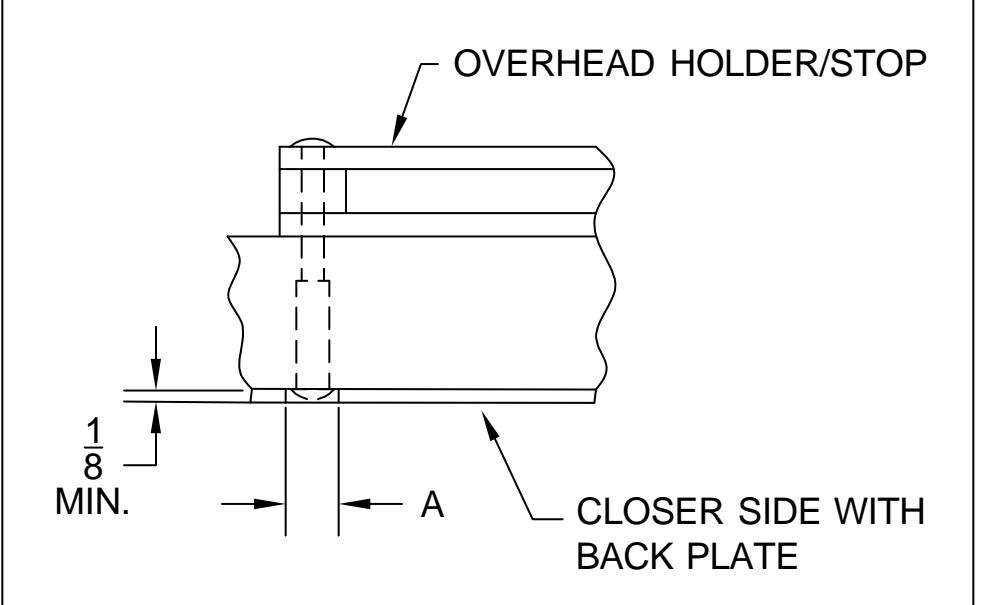

CLEARANCE HOLE IN BACK PLATE WHEN CONFLICTS OCCUR IN WOOD OR METAL DOOR
| MODEL | А |
|---|---|
| 3300ADJ, 4400, | 5/8" DIA. |
| 7000, 8000*, HD8000* | 11/16"DIA. |
| 9000, 9000ADJ | 7/8" DIA. |
*HOLD OPEN MODEL CANNOT BE MOUNTED ON PULL SIDE
www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
OVERHEAD HOLDERS WITH CLOSER-01.DWG
