AB3330, AB3331, AB3332

Models :

• AB3330 1.00" Diameter
• AB3331 1.25" Diameter
• AB3332 1.50" Diameter

Length Options:

• 12" 120" Lengths Available
• MP Mid Post Req. starting at 73" 120"

Finishes:

• US3, US32, US32D, US4, US9, US10, US10B
• Black Powder
• White Powder
• * Custom Powder Coating Available

Mounting Options:

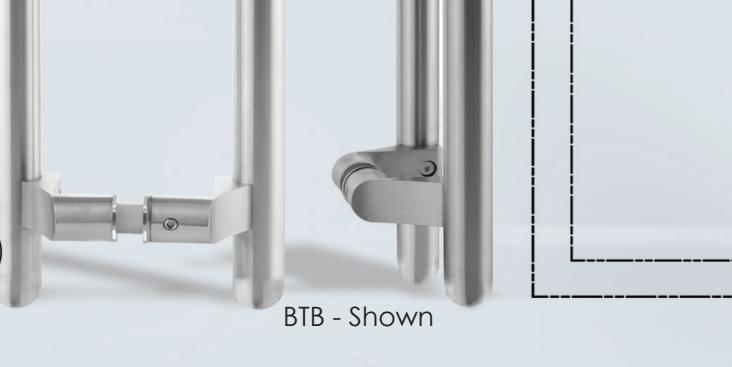

• BTB Back-to-Back Heavy Duty (Wood or Metal)
• Heavy Duty (Glass)
• S Single Side Mounting
• Thru Bolt Heavy Duty (Wood or Metal)
• Decorative Thru Bolt Heavy Duty (Glass)
• Surface Concealed Heavy Duty (Metal)

Engraving Options:

• BTB Push/Pull
• Push
• Pull
• Single Side Only
• Push
• Pull

Door Options:

• Glass, Wood, or Metal
• Door Thickness
• 1/2"
• 1-3/4"
• 2-1/4"
• * Custom Door Thickness Available

Mounting Options: Go to www.abhmfg.com for more mounting information

Thru Bolt - Type 1HD

Thru Bolt - Type 12HD

Concealed - Type 6HD

Concealed - Type 8HD

Back-to-Back - Type 5HD

Glass Door Thru Bolt Type 15HD

Glass Door Back-to-Back Type 13HD

ABH20201111-00
