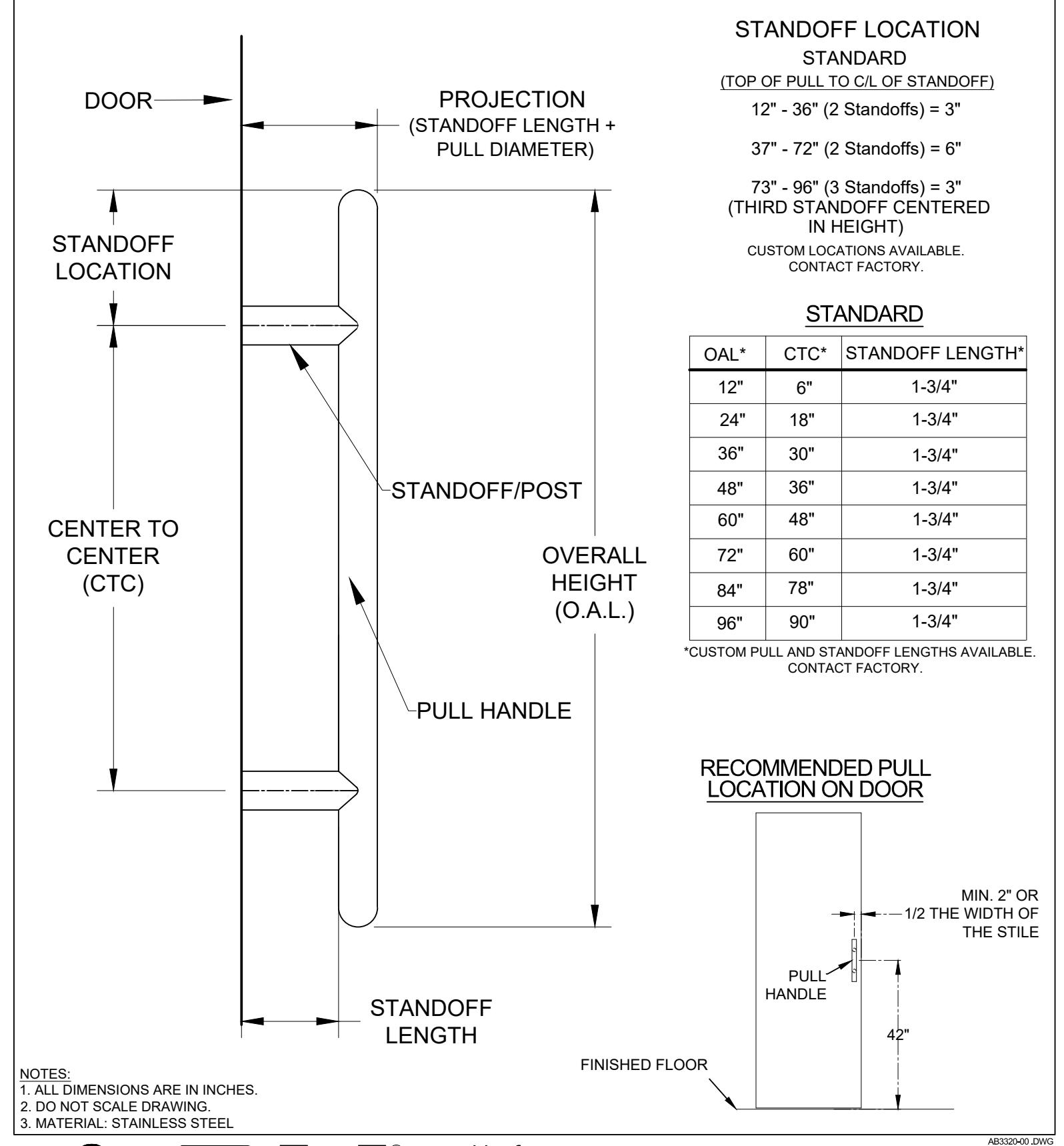

View PDFSTRAIGHT, ROUND END PULL HANDLE
AB3320 (Ø1), AB3321 (Ø1-1/4"), AB3322 (Ø1-1/2")
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
AB3320 PULL HANDLE PAGE 1 OF 2 ISSUED 4-14-22
c 2022 ABH Mfg., Inc.
STRAIGHT, ROUND END PULL HANDLE
AB3320 (Ø1), AB3321 (Ø1-1/4"), AB3322 (Ø1-1/2")

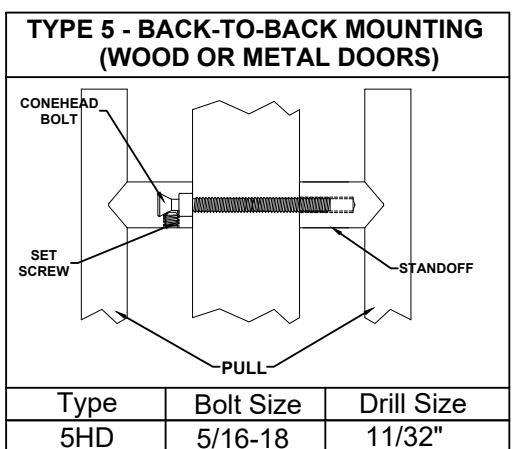

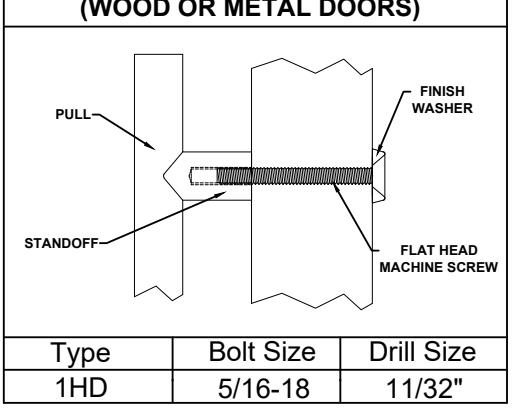

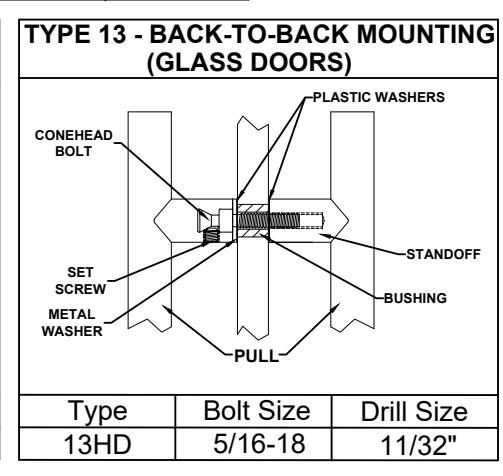

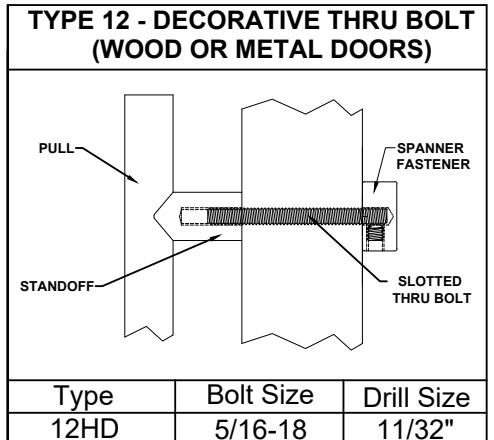

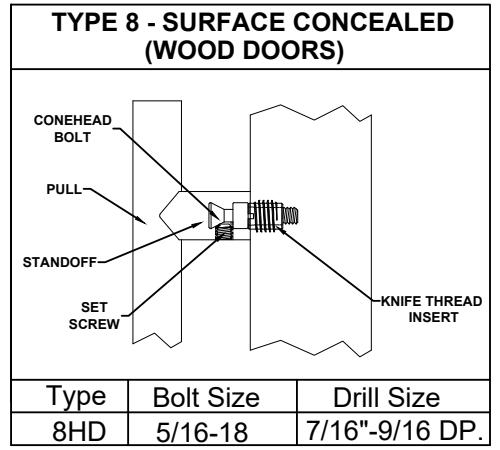

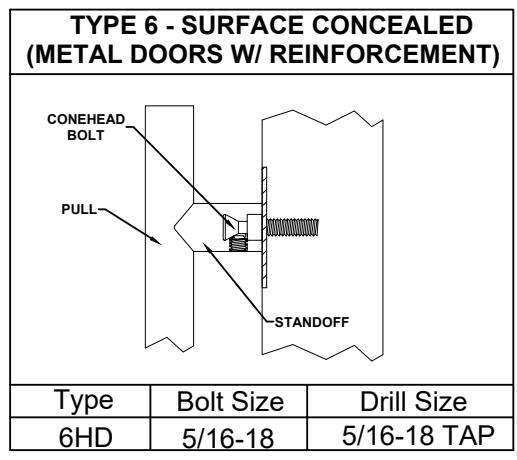

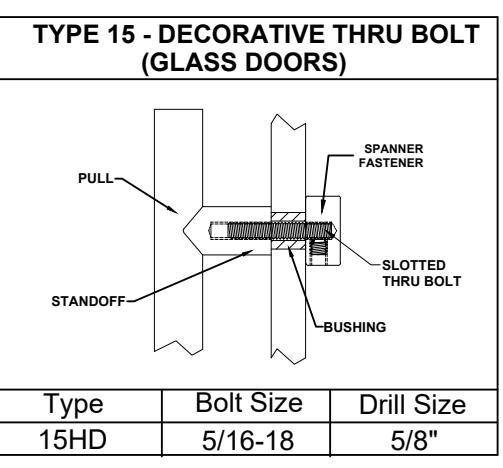

MOUNTING OPTIONS
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
AB3320 PULL HANDLE PAGE 2 OF 2 ISSUED 4-14-22
