ABH 2400LR Electromagnetic Door Holder – Cut Sheet

Ligature Resistant

Electromagnetic Door Holder

Ligature resistant electromagnetic hold open. For use in behavioral health facilities, hospitals, correctional facilities, or any institution where safety is of the highest priority.

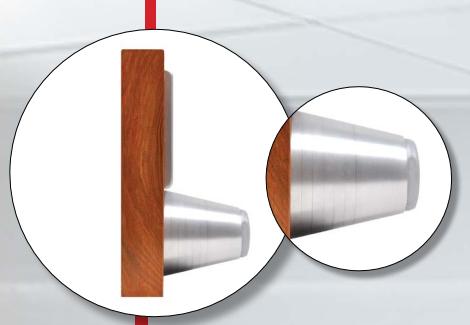

Sloped Door Armature Assembly with Extension Plates - 3" Projection

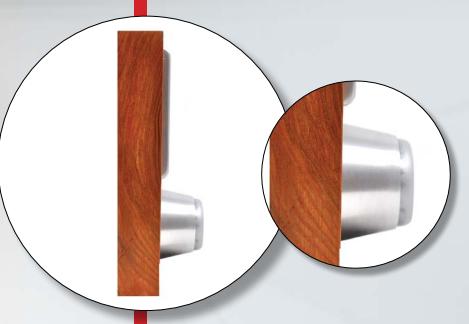

Sloped Door Armature Assembly without Extension Plates - 1-1/2" Projection

6 ° adjustment built

in for maximum flexibility for uneven wall conditions.

Technical Specifications:

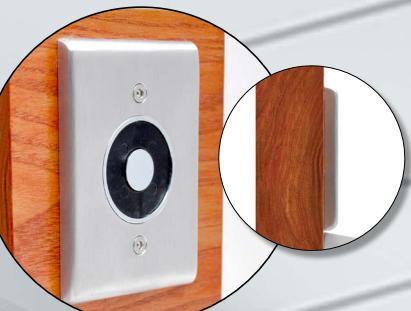

• Wall cover has 9/32" projection
• Standard 1-1/2" Door Armature with the option to add extensions
• (6) 1/4" ring extensions (provided)
• Door Armature Head has 6° adjustment built in for maximum flexibility for uneven wall conditions
• Wall Cover and Door Armature sloped to prevent objects from being tied or looped around them
• Available in US28, S1, S2, S3, S4, S5, S8 Finishes

Side View

Exploded Door Armature Assembly
