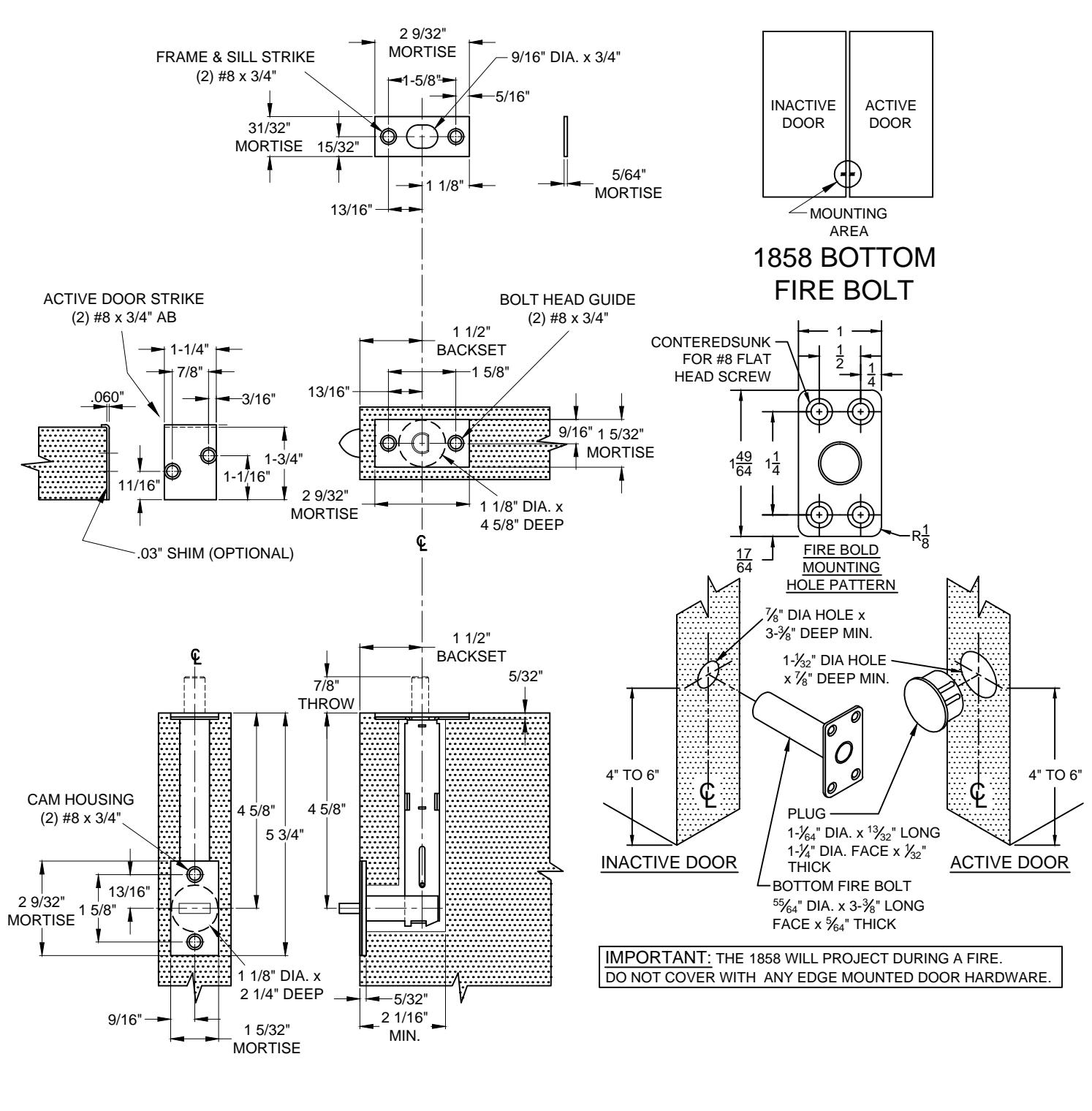

View PDF1869 AUTOMATIC FLUSH BOLT TOP BOLT ONLY WITH BOTTOM FIRE BOLT.
(WOOD & METAL DOOR APPLICATION)
SCREW DETAILS:
#8 - 32 x 3/4" AB - UNDERCUT FLAT COUNTERSUNK HEAD, DUAL PURPOSE MACHINE/TAPPING SCREW, TOTAL 12 PCS.
