ABH 1864P Template

1864P COMBINATION FLUSH BOLT SET CONSTANT LATCHING TOP & AUTOMATIC LATCHING BOTTOM. WOOD DOOR APPLICATION

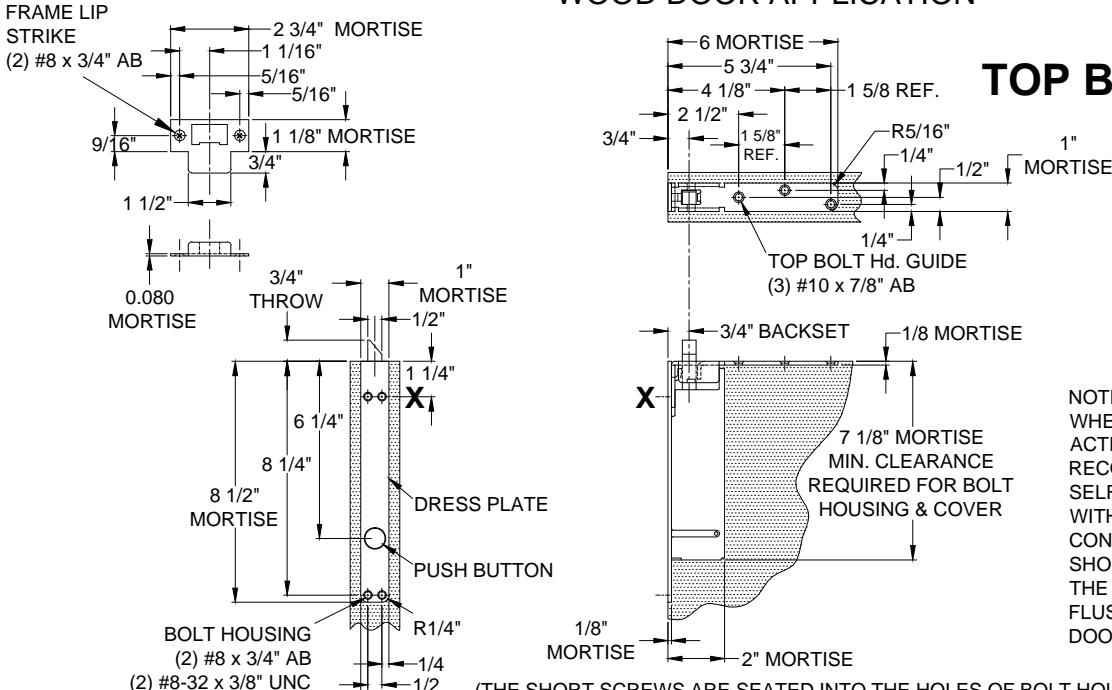

TOP BOLT SHOWN

NOTE:

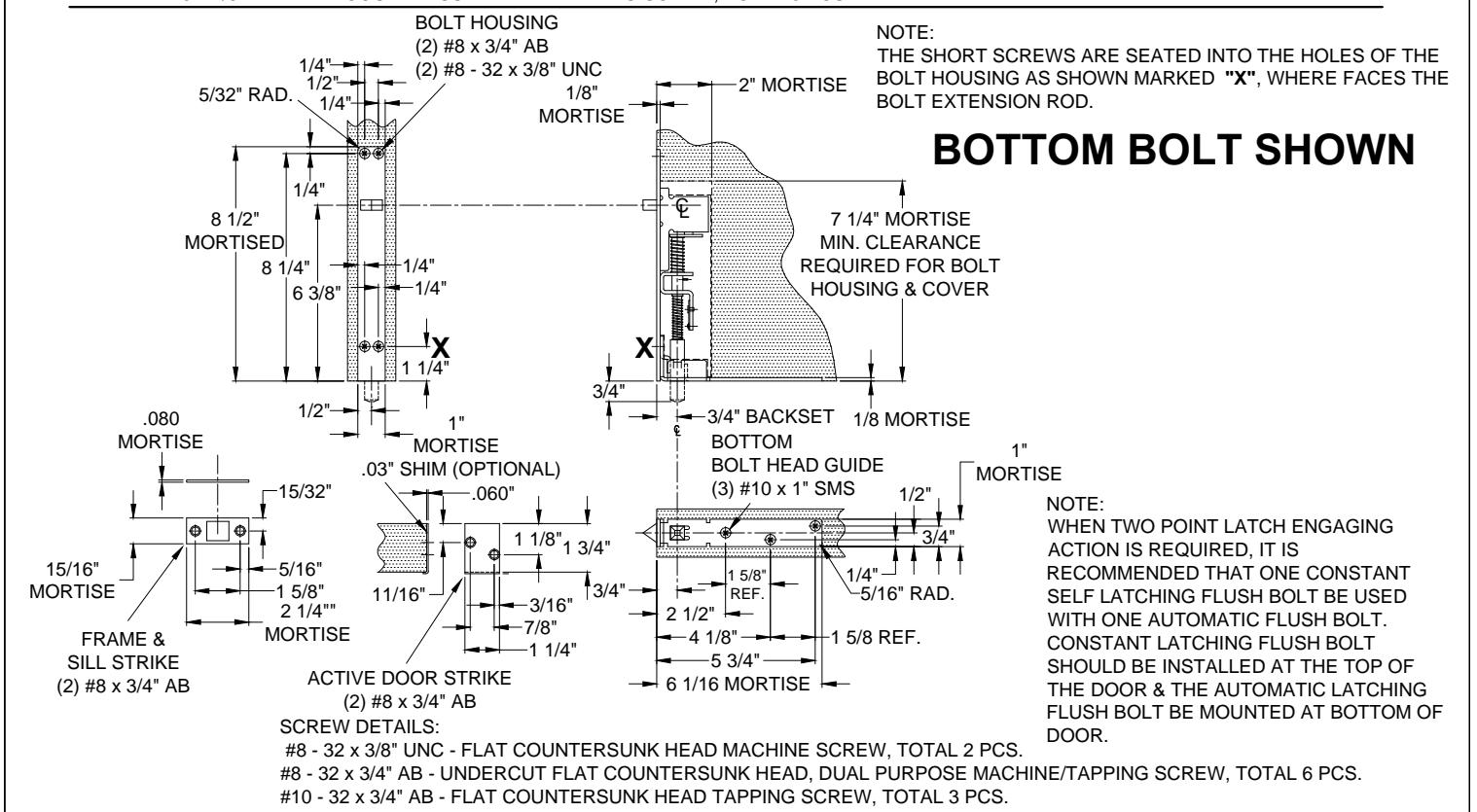

WHEN TWO POINT LATCH ENGAGING ACTION IS REQUIRED, IT IS RECOMMENDED THAT ONE CONSTANT SELF LATCHING FLUSH BOLT BE USED WITH ONE AUTOMATIC FLUSH BOLT. CONSTANT LATCHING FLUSH BOLT SHOULD BE INSTALLED AT THE TOP OF THE DOOR & THE AUTOMATIC LATCHING FLUSH BOLT BE MOUNTED AT BOTTOM OF DOOR.

(THE SHORT SCREWS ARE SEATED INTO THE HOLES OF BOLT HOUSING AS SHOWN MARKED BY AN "X" WHERE FACES THE BOLT EXTENSION ROD)

#8-32 x 3/8" UNC - FLAT COUNTERSUNK HEAD MACHINE SCREW, TOTAL 2 PCS. #8-32 x 3/4" AB - UNDERCUT FLAT COUNTERSUNK HEAD, DUAL PURPOSE MACHINE/TAPPING SCREW, TOTAL 4 PCS.

#10 x 7/8" AB - FLAT COUNTERSUNK HEAD TAPPING SCREW, TOTAL 3 PCS

SCREW DETAILS:

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2017 ABH Mfg., Inc. printed in USA

1864P

1864P-01.DWG

PAGE 1 OF 1 ISSUED 01-18-17
