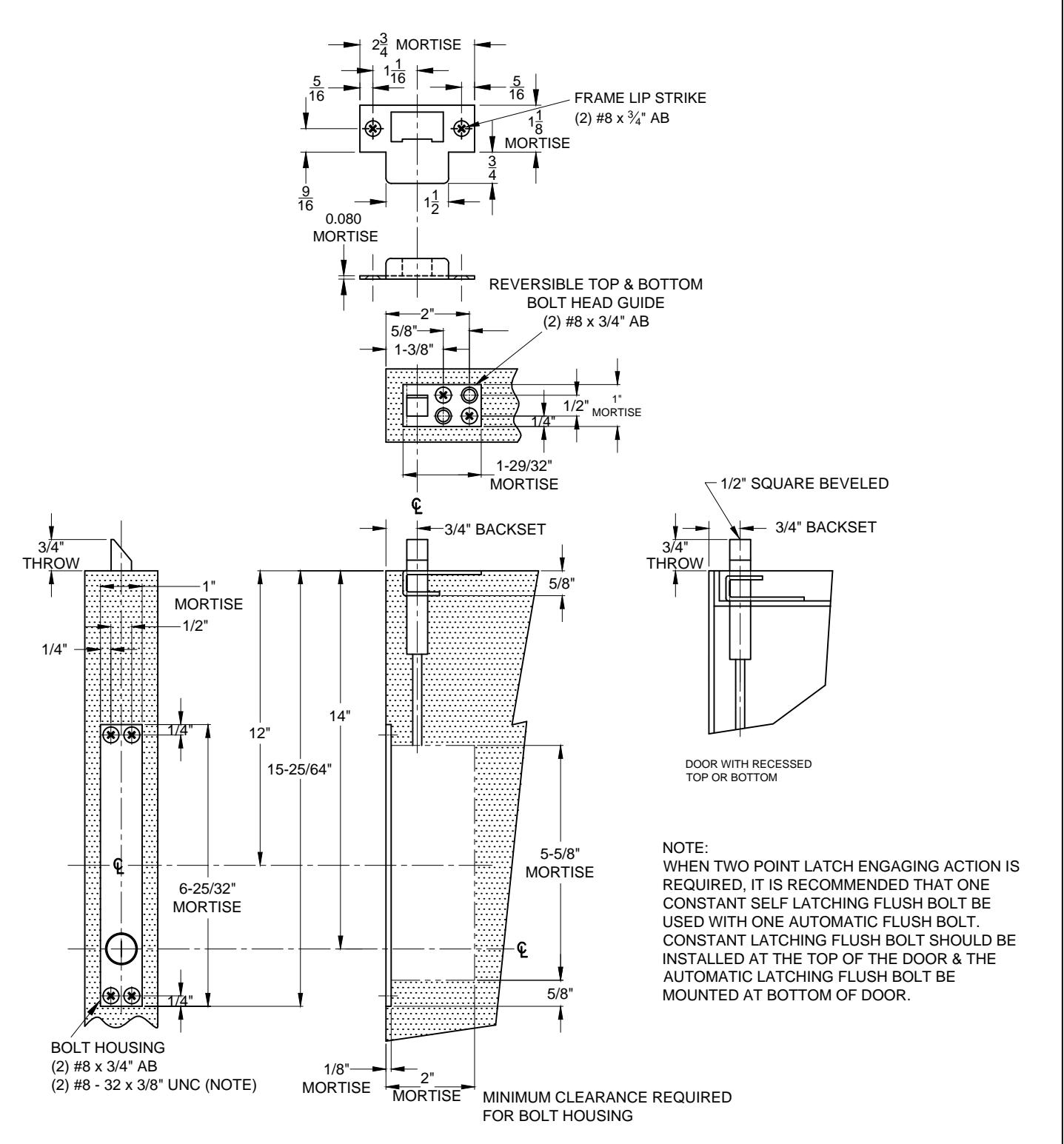

1863S CONSTANT LATCHING FLUSH BOLT TOP BOLT ONLY, METAL DOOR APPLICATION

SCREW DETAILS: #8 - $32 \times 3/8$ " UNC - FLAT COUNTERSUNK HEAD MACHINE SCREW, TOTAL 2 PCS. #8 - $32 \times 3/4$ " AB - UNDERCUT FLAT COUNTERSUNK HEAD, DUAL PURPOSE MACHINE/TAPPING SCREW, TOTAL 8 PCS.

R www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

1863S

PAGE 1 OF 1 ISSUED 06-08-16

1863S-00 DWG
