ABH 1863P Template

1863P COMBINATION FLUSH BOLT SET CONSTANT LATCHING TOP & AUTOMATIC LATCHING BOTTOM. METAL DOOR APPLICATION

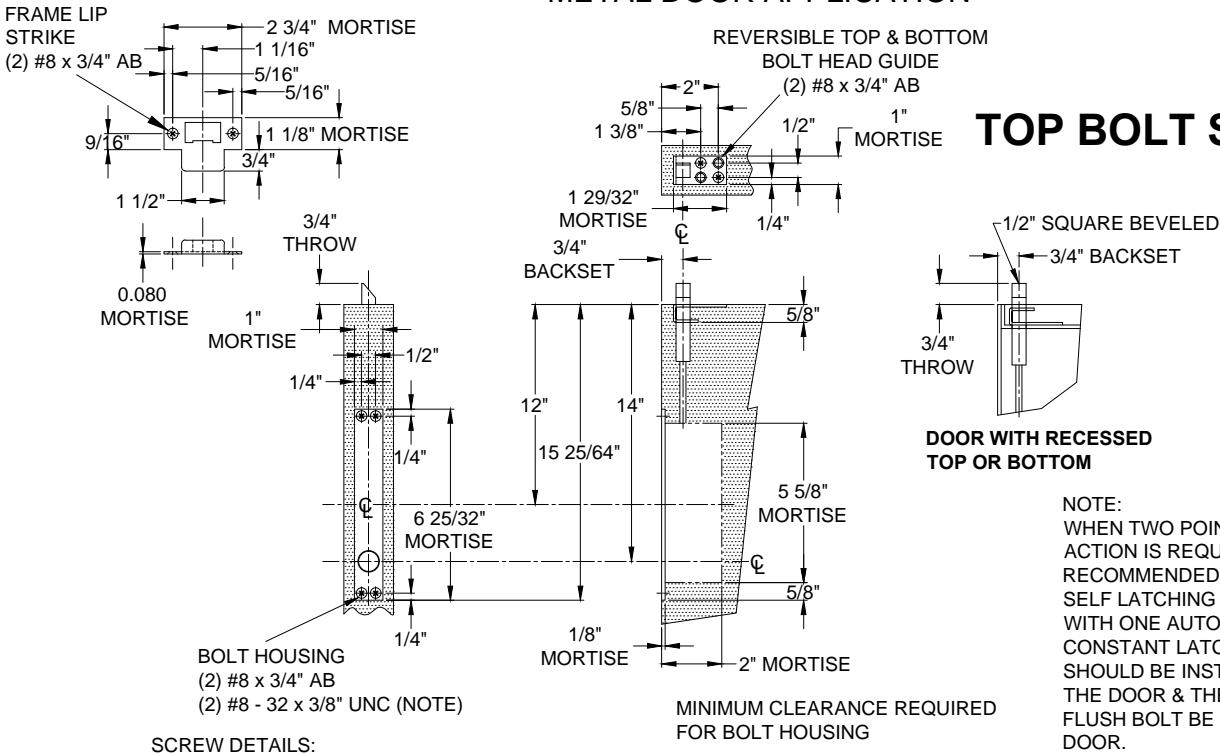

TOP BOLT SHOWN

NOTE:

3/4" BACKSET

WHEN TWO POINT LATCH ENGAGING ACTION IS REQUIRED. IT IS RECOMMENDED THAT ONE CONSTANT SELF LATCHING FLUSH BOLT BE USED WITH ONE AUTOMATIC FLUSH BOLT. CONSTANT LATCHING FLUSH BOLT SHOULD BE INSTALLED AT THE TOP OF THE DOOR & THE AUTOMATIC LATCHING FLUSH BOLT BE MOUNTED AT BOTTOM OF DOOR.

#8 - 32 x 3/8" UNC - FLAT COUNTERSUNK HEAD MACHINE SCREW, TOTAL 2 PCS.

#8 - 32 x 3/4" AB - UNDERCUT FLAT COUNTERSUNK HEAD, DUAL PURPOSE MACHINE/TAPPING SCREW, TOTAL 8 PCS.

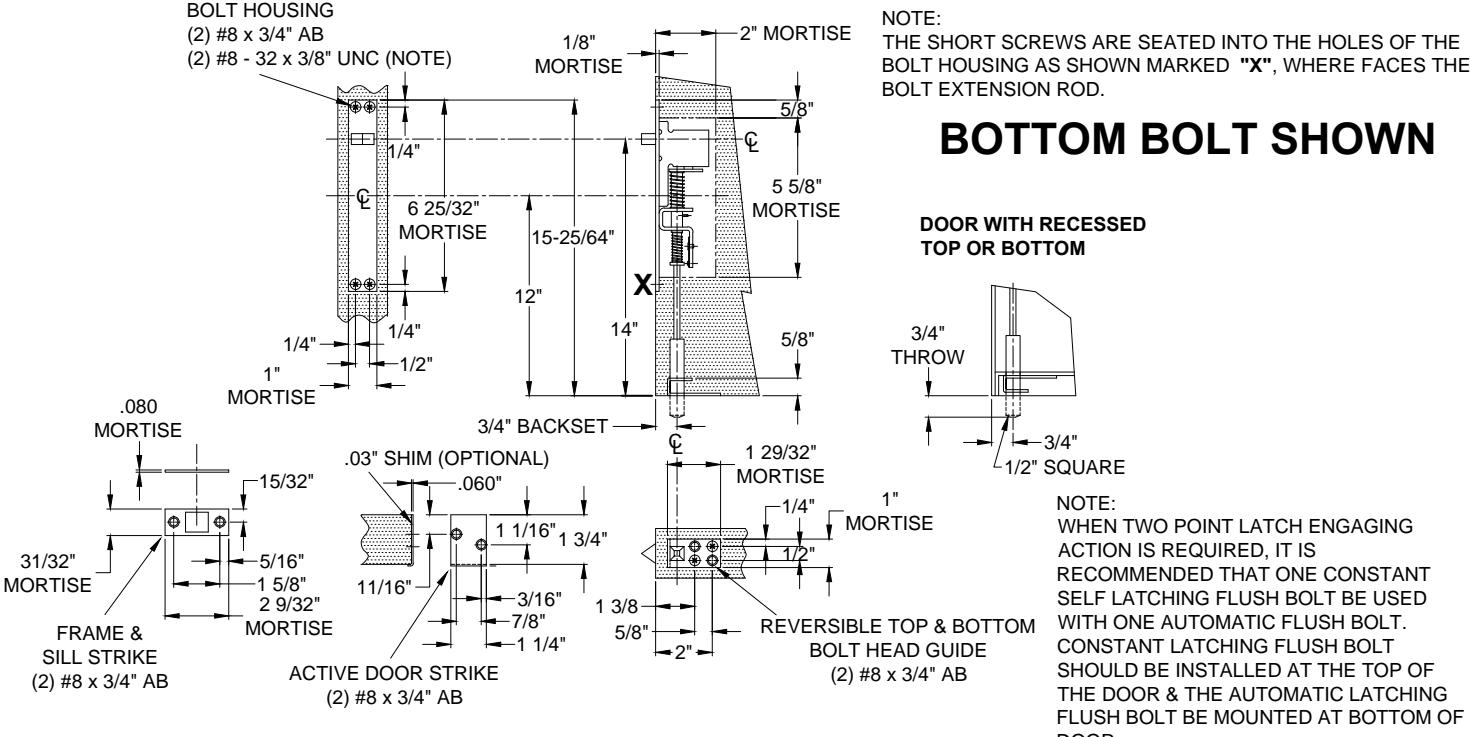

WHEN TWO POINT LATCH ENGAGING ACTION IS REQUIRED, IT IS RECOMMENDED THAT ONE CONSTANT SELF LATCHING FLUSH BOLT BE USED WITH ONE AUTOMATIC FLUSH BOLT. CONSTANT LATCHING FLUSH BOLT SHOULD BE INSTALLED AT THE TOP OF THE DOOR & THE AUTOMATIC LATCHING FLUSH BOLT BE MOUNTED AT BOTTOM OF DOOR.

SCREW DETAILS:

#8 - 32 x 3/8" UNC - FLAT COUNTERSUNK HEAD MACHINE SCREW, TOTAL 2 PCS.

#8 - 32 x 3/4" AB - UNDERCUT FLAT COUNTERSUNK HEAD, DUAL PURPOSE MACHINE/TAPPING SCREW, TOTAL 8 PCS

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2017 ABH Mfg., Inc. printed in USA

1863P-01.DWG

1863P

PAGE 1 OF 1 ISSUED 01-18-17
