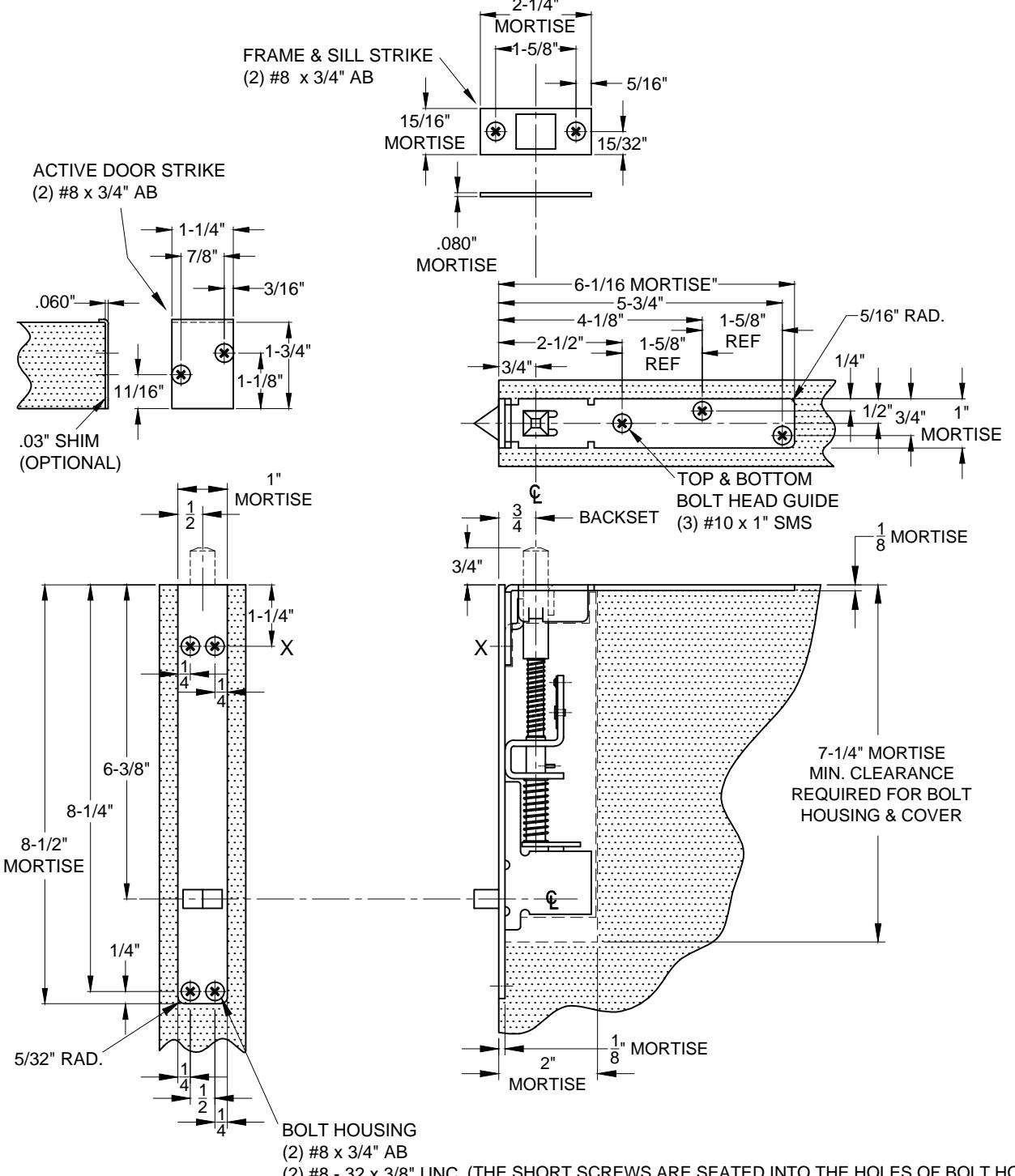

View PDF1862S AUTOMATIC FLUSH BOLT TOP BOLT ONLY, WOOD DOOR APPLICATION
(2) #8 - 32 x 3/8" UNC (THE SHORT SCREWS ARE SEATED INTO THE HOLES OF BOLT HOUSING AS SHOWN MARKED BY AN "X" WHERE FACES THE BOLT EXTENSION ROD)
SCREW DETAILS:
#8 - 32 x 3/8" UNC - FLAT COUNTERSUNK HEAD MACHINE SCREW, TOTAL 2 PCS.
#8 - 32 x 3/4" AB - UNDERCUT FLAT COUNTERSUNK HEAD, DUAL PURPOSE MACHINE/TAPPING SCREW, TOTAL 6 PCS.
#10 - 32 x 3/4" AB - FLAT COUNTERSUNK HEAD TAPPING SCREW. TOTAL 3 PCS.
www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
© 2016 ABH Mfg., Inc. printed in USA
1862S-00.DWG 1862S
PAGE 1 OF 1 ISSUED 06-08-16
