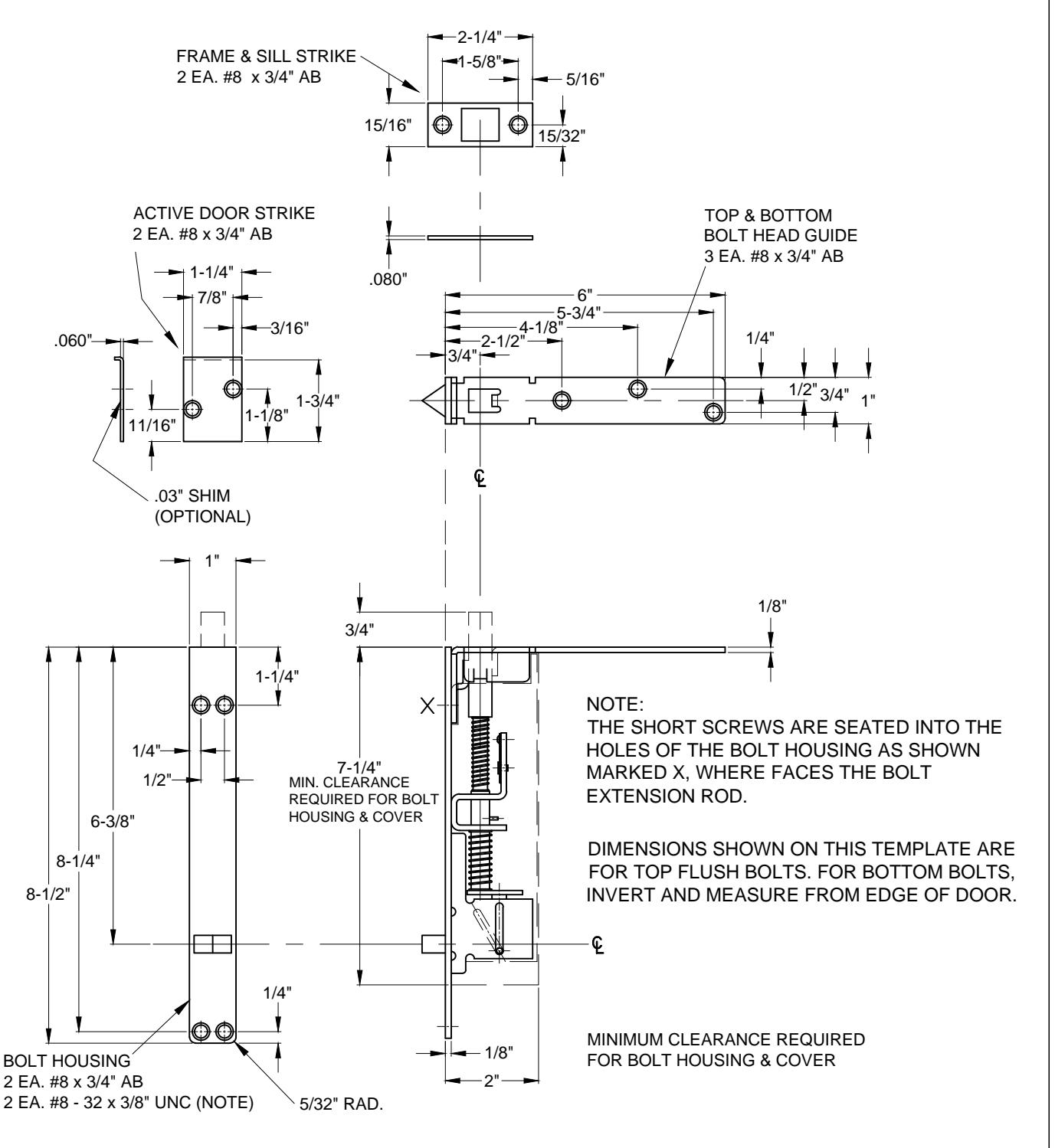

1862 AUTOMATIC FLUSH BOLTS WOOD DOOR APPLICATION

SCREW DETAILS: #8 - 32 x 3/8" UNC - FLAT COUNTERSUNK HEAD MACHINE SCREW, TOTAL 2 PCS. #8 - 32 x 3/4" AB - UNDERCUT FLAT COUNTERSUNK HEAD, DUAL PURPOSE MACHINE/TAPPING SCREW, TOTAL 6 PCS. #10 - 32 x 3/4" AB - FLAT COUNTERSUNK HEAD TAPPING SCREW, TOTAL 3 PCS.
