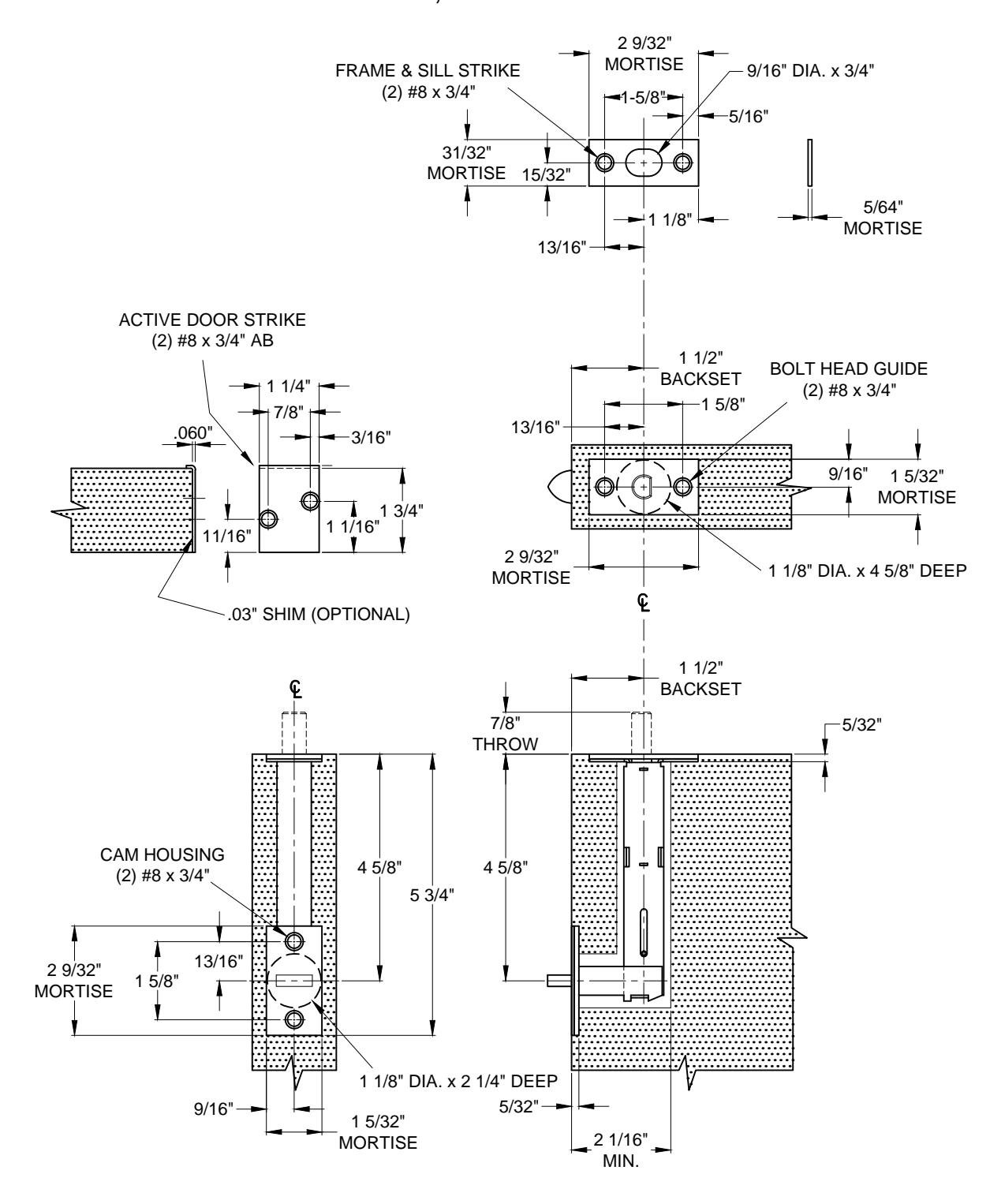

1861S AUTOMATIC FLUSH BOLT TOP BOLT ONLY, WOOD & METAL DOOR APPLICATION

SCREW DETAILS:

#8 - 32 x 3/4" AB - UNDERCUT FLAT COUNTERSUNK HEAD, DUAL PURPOSE MACHINE/TAPPING SCREW, TOTAL 8 PCS.

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2016 ABH Mfg., Inc. printed in USA

1861S-00.DWG

PAGE 1 OF 1 ISSUED 01-24-17
