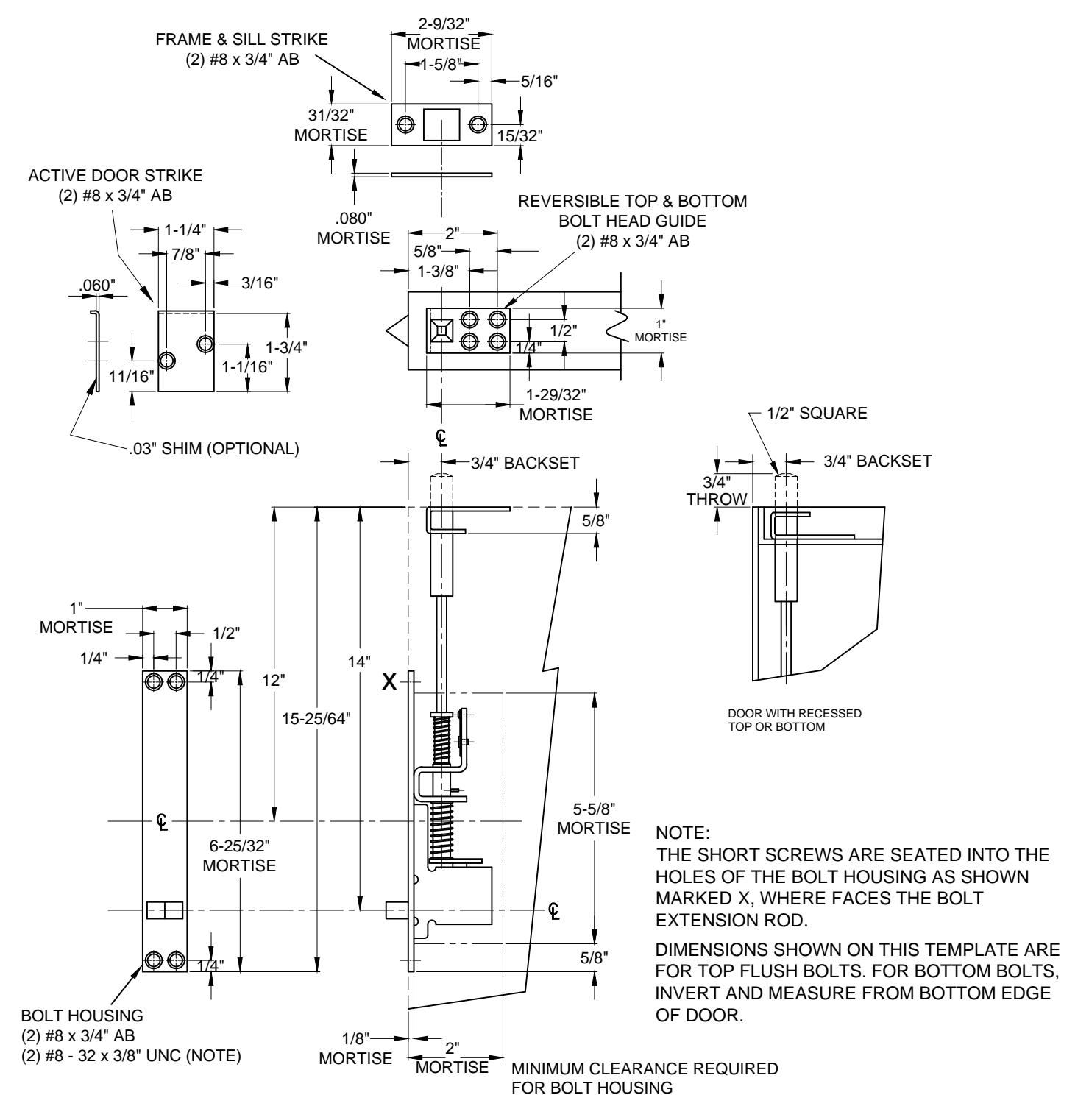

1860S AUTOMATIC FLUSH BOLT TOP BOLT ONLY, METAL DOOR APPLICATION

SCREW DETAILS: #8 - $32 \times 3/8$ " UNC - FLAT COUNTERSUNK HEAD MACHINE SCREW, TOTAL 2 PCS. #8 - $32 \times 3/4$ " AB - UNDERCUT FLAT COUNTERSUNK HEAD, DUAL PURPOSE MACHINE/TAPPING SCREW, TOTAL 8 PCS.
