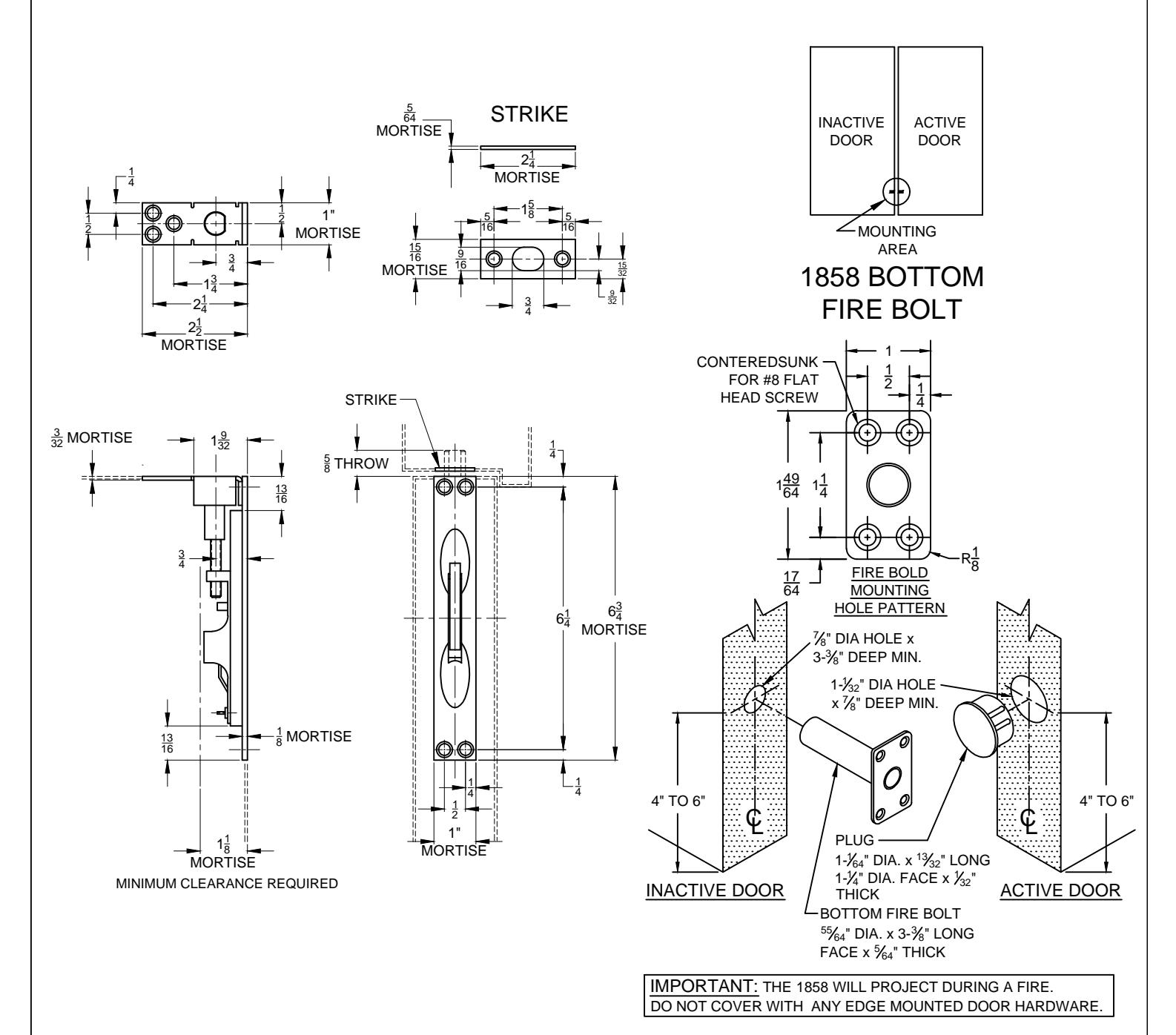

1856 MANUAL FLUSH BOLT TOP BOLT ONLY WITH FIRE BOLT (WOOD DOOR APPLICATION)

SCREW DETAILS: BOLT HOUSING - (5) 8-32 x 1-1/2" F.H. COMB SCREW STRIKE - (2) 8-32 x 11/16" F.H. COMB SCREW
