ABH 1842 Ligature Resistant Large Conical Wall Stop Cut Sheet

Ligature Resistant Heavy Duty Wall Stop

Heavy Duty Ligature Resistant wall stop, to be used in behavioral health areas and facilities, designed to protect walls from excessive force and prevent patients from causing self harm.

Features & Specifications

• Projection 1¾" projection from face of wall
• 3-⅝" Diameter Plate
• Wall Plate supplied with chamfered edges to prevent ligature attachment
• Material High Density Rubber Stop; 304 Stainless Steel Plate
• "SEC" Security fasteners provided standard

Available Finishes

• US3 Bright Brass
• US4 Satin Brass
• US10 Satin Bronze
• US10B Satin Dark Bronze
• US32 Bright Stainless
• US32D Satin Stainless Steel

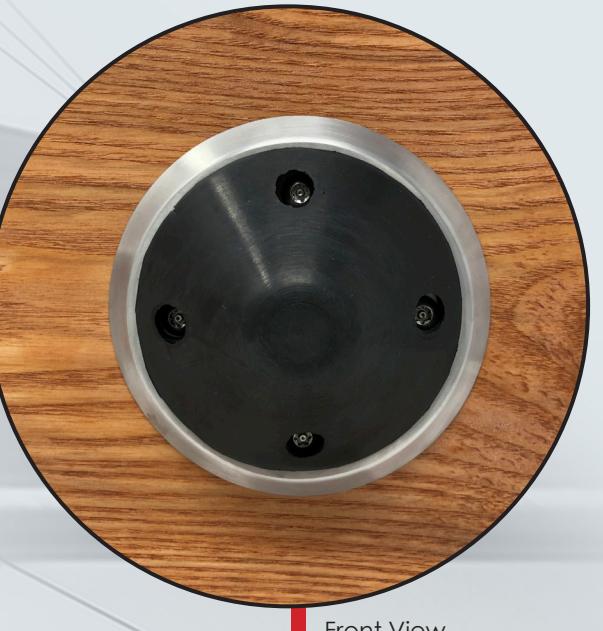

Front View

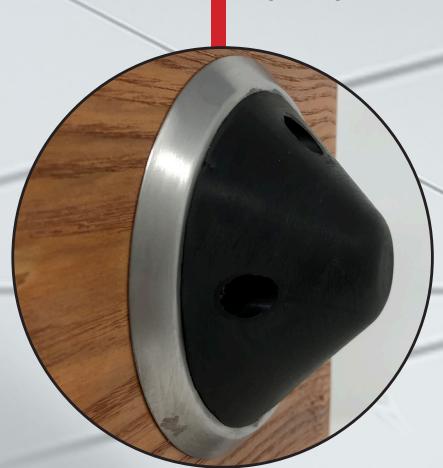

Side View
