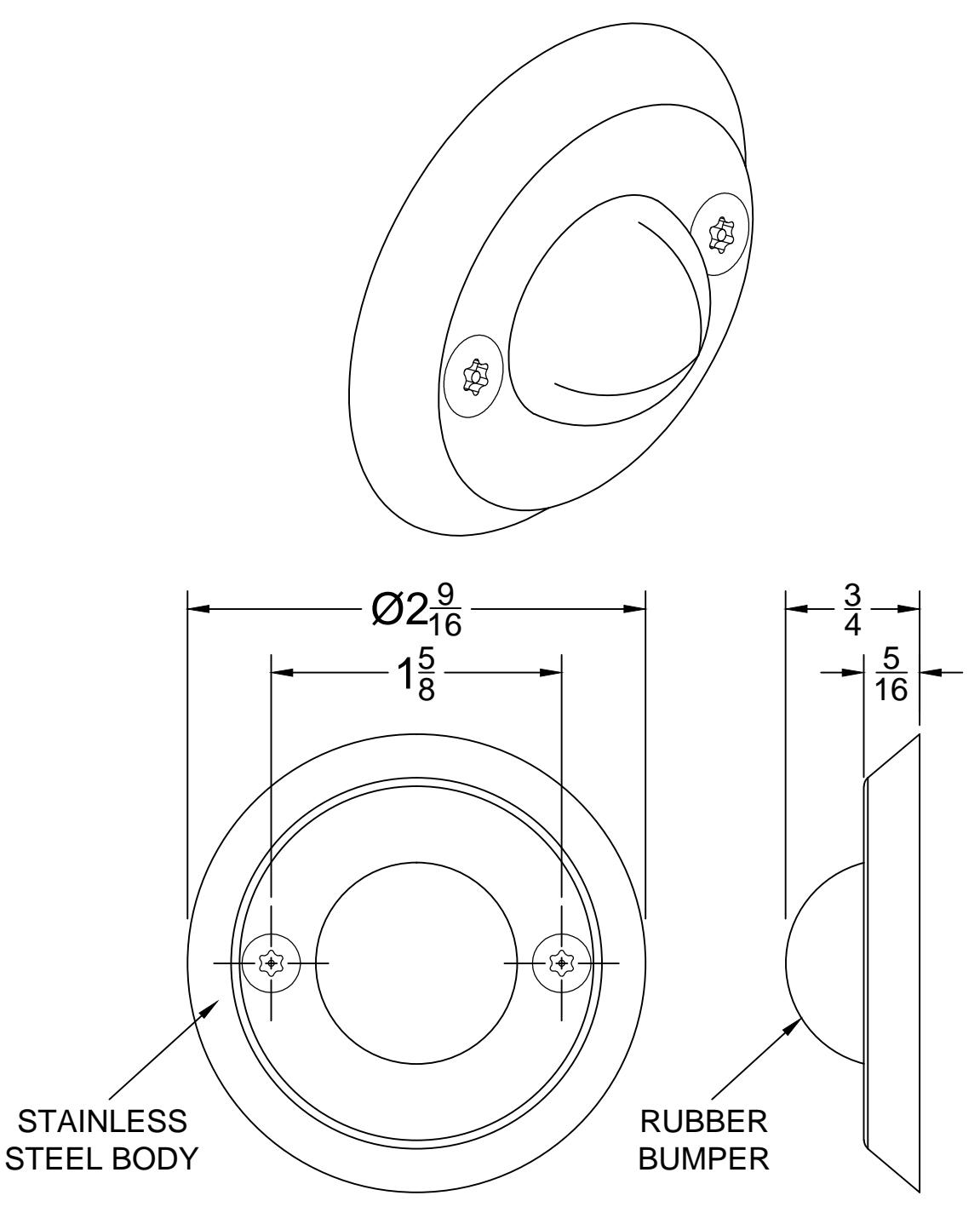

ABH 1841 Ligature Resistant Wall Bumper Line Drawing

Open the original PDF document

View PDF

1841 DOOR STOP WALL MOUNT LIGATURE - RESISTANT

(2) #8 x 1"S.S. PIN TORX FLAT HEAD SHEET METAL SCREWS

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

PAGE 1 OF 1 ISSUED 08-10-18

1841.DWG

1841
