ABH 1841 Ligature Resistant Wall Bumper Cut Sheet

Open the original PDF document

Ligature Resistant Wall Stop

Wall protection from door to be used in behavioral health areas and facilities, designed to protect walls from excessive force and prevent patients from causing self harm.

Features & Specifications

Low Projection 1" projection from face of wall
2-1/2" Diameter Plate
Wall Plate supplied with chamfered edges to prevent ligature attachment
Material High Density Rubber Stop; 304 Stainless Steel Plate
Stainless Steel Other finishes by request
"SEC" Security fasteners provided standard

Available Finishes

US3 Bright Brass
US4 Satin Brass
US10 Satin Bronze
US10B Satin Dark Bronze
US32 Bright Stainless
US32D Satin Stainless Steel

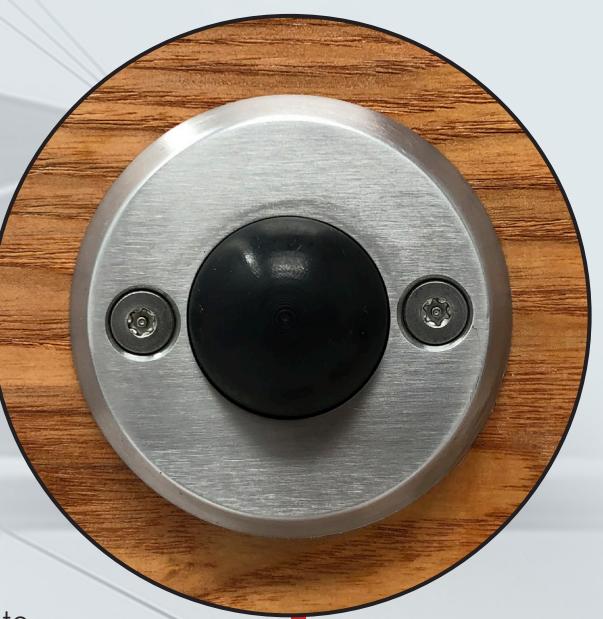

Front View

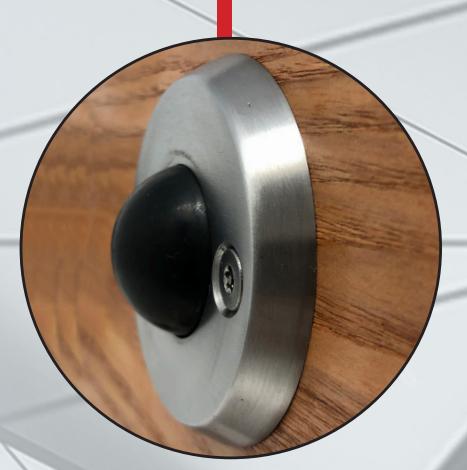

Side View

https://omh.ny.gov/omhweb/patient_safety_standards/guide.pdf
