Decorative

Vertical Straight Solid Door Pull

Standard Features:

• Comes standard with thru-bolt screws and decorative washers
• 1-1/2" to 1-3/4"
• Accessory package available for 2" and 2-1/4" thick doors
• •Optional mounting hardware available
• * Mounting hardware for custom door thicknesses available

Finishes:

• US3, US32, US32D, US4, US5, US9, US10, US10B
• Black Powder
• White Powder
• * Custom Finishes and Powder Coating Available

Additional Information

• Specify back to back machined pull or single
• Wood or Glass

Mounting Options: Go to www.abhmfg.com

for more mounting information.

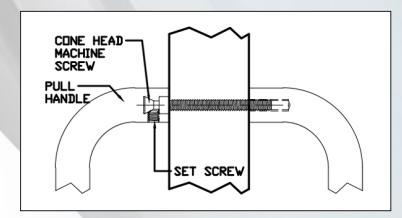

Thru Bolt - Type 1HD

Concealed - Type 6HD

Back-to-Back - Type 5HD

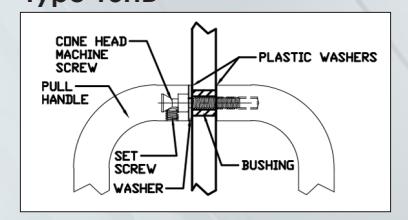

Glass Door Back-to-Back Type 13HD
