A955 Cam Lift Template

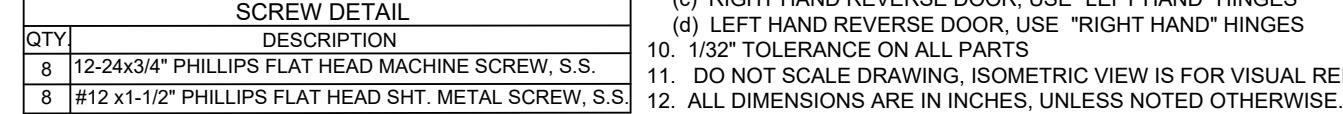

A955 CAM LIFT HINGE - HANDED, 3/16" LIFT ø.560 ø.560 4.500 4.500 .125 1.000 .188 1.000 LIFT .508 $(\backslash oplus)$ .508 RIGHT HAND RIGHT HAND DOOR SIDE FRAME SIDE 1.125 1.125 $(\backslash oplus)$ $(\backslash bullet)$ 1.234 ABH ABH 1.234 4.500 $(\; \backslash bigcirc\; )$ $\backslash bigoplus$ $(\backslash bullet)$ $\backslash oplus$ 1.125 1.125 .508 .508 R.031 TYP. COUNTERSINK COUNTERSINK FOR #12 SCREW FOR #12 SCREW (8 PLACES) FRONT VIEW FRONT VIEW LEFT HAND HINGE RIGHT HAND HINGE LEFT HAND DOOR SIDE 4.500 2.250 .125 .188 $(\backslash bullet)$ $(\backslash bullet)$ (<del>+</del>) 90° open close 180° open $(\backslash bullet)$ position position position 4.500 4.500 $\backslash odot$ NOTES: $\backslash odot$ 1. CAM LIFT PIVOT HINGE IS STAINLESS STEEL HINGE, DESIGNED TO BE INSTALLED MORTISE. 2. WHEN SWING OPEN THE DOOR RISES TO MAX. HEIGHT OF 3/16" AT 180°. $\backslash odot$ 3. DOOR RATING (1-1/2 PAIRS) UP TO 200 lbs. 4. MINIMUM CLEARANCE AT HEAD OF FRAME IS 3/16", FOR DOOR GREATER THAN 1-3/4", CLEARANCE IS 1/4". 5. CAN BE USED ON HOLLOW METAL OR WOOD FRAMES & DOORS. 6. SCREW DETAILS ARE GIVEN BELOW. REAR VIEW 7. FOR USE WITH EMI/RFI & SOUND INSULATING DOORS UTILIZING RIGHT HAND HINGE SHOWN ACOUSTICAL SEALS. LEFT HAND OPPOSITE 8. THE CAM FUNCTION IMPROVES THE SEALING CHARACTERISTICS ALONG THE DOOR PERIMETER, LIFTING AND LOWERING THE DOOR WITH THE SWING. 9. HINGES ARE HANDED. SEE ABOVE PICTURE FOR RIGHT HAND & LEFT HAND. (a) LEFT HAND DOOR, USE "LEFT HAND" HINGE (b) RIGHT HAND DOOR, USE "RIGHT HAND" HINGE (c) RIGHT HAND REVERSE DOOR, USE "LEFT HAND" HINGES

A955 CAM LIFT PIVOT HINGE-01.DWG

A955 CAM LIFT PIVOT HINGE

www.abhmfg.com

DO NOT SCALE DRAWING, ISOMETRIC VIEW IS FOR VISUAL REPRESENTATION

(d) LEFT HAND REVERSE DOOR, USE "RIGHT HAND" HINGES
