Full Surface Thru Wire Hinge

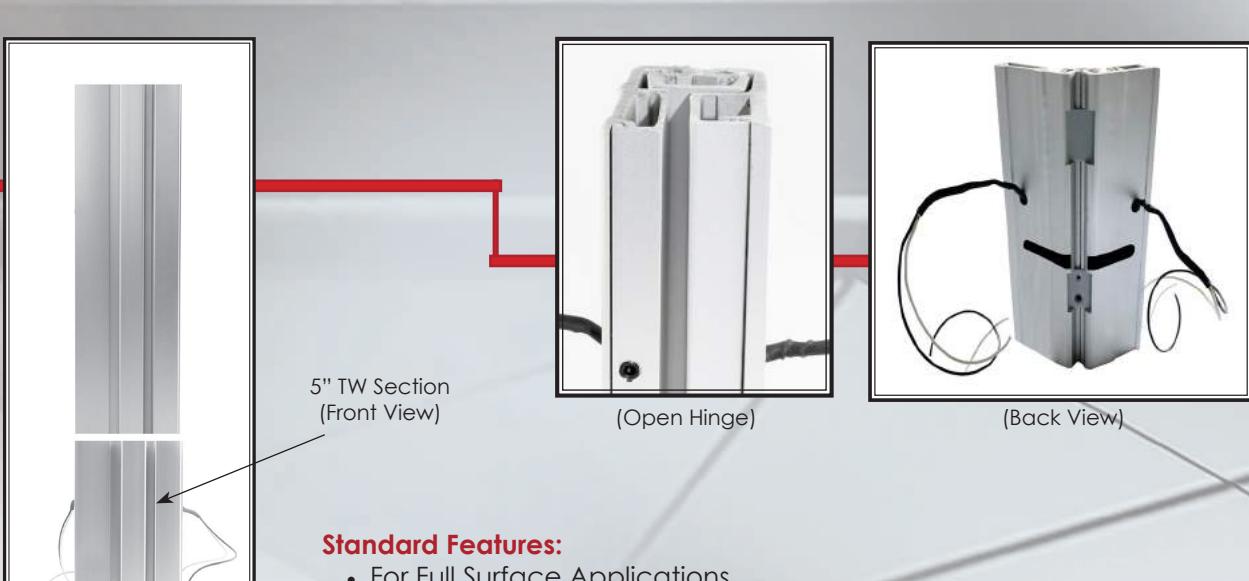

Introducing ABH's New Electrified Full Surface Hinge with concealed thru wires to carry electrical current between the frame and door. This 5" removable section is used with our Full-Length Full Surface Models, A570 & A571.

  • For Full Surface Applications
  • 5" Removable Section For ease of installation
  • 2 (22ga.) Super Flex Wire Standard
  • Available in Standard Finishes
    • Clear Anodized
    • Dark Bronze Anodized
    • Black Anodized

Specifications

Discription: Single Conductor #22 AWG miniature hook-up

Wire for applications requiring exreme flexibility.

Conductor: #22 AWG 168/44 (0.002") Soft Bare Copper LHL.

Insulation: Proprietary formulation PVC 0.010" NOM. Wall meets

VW-1 Flame requirements.

Diameter: 0.053" + 0.003"

Resistance: 16.7 OHMS MAX. @ 20◦C, per 1000 ft. Voltage Rating: 600 Volts RMS, depending on specification.

Available as RoHS Compliant.

ABH20201201
