www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A570-AHT OPTION, ADVANCED HOSPITAL TIP-1-01.DWC

A570 - "AHT" OPTION ADVANCED HOSPITAL TIP

PAGE 1 OF 2 ISSUED 01-31-20

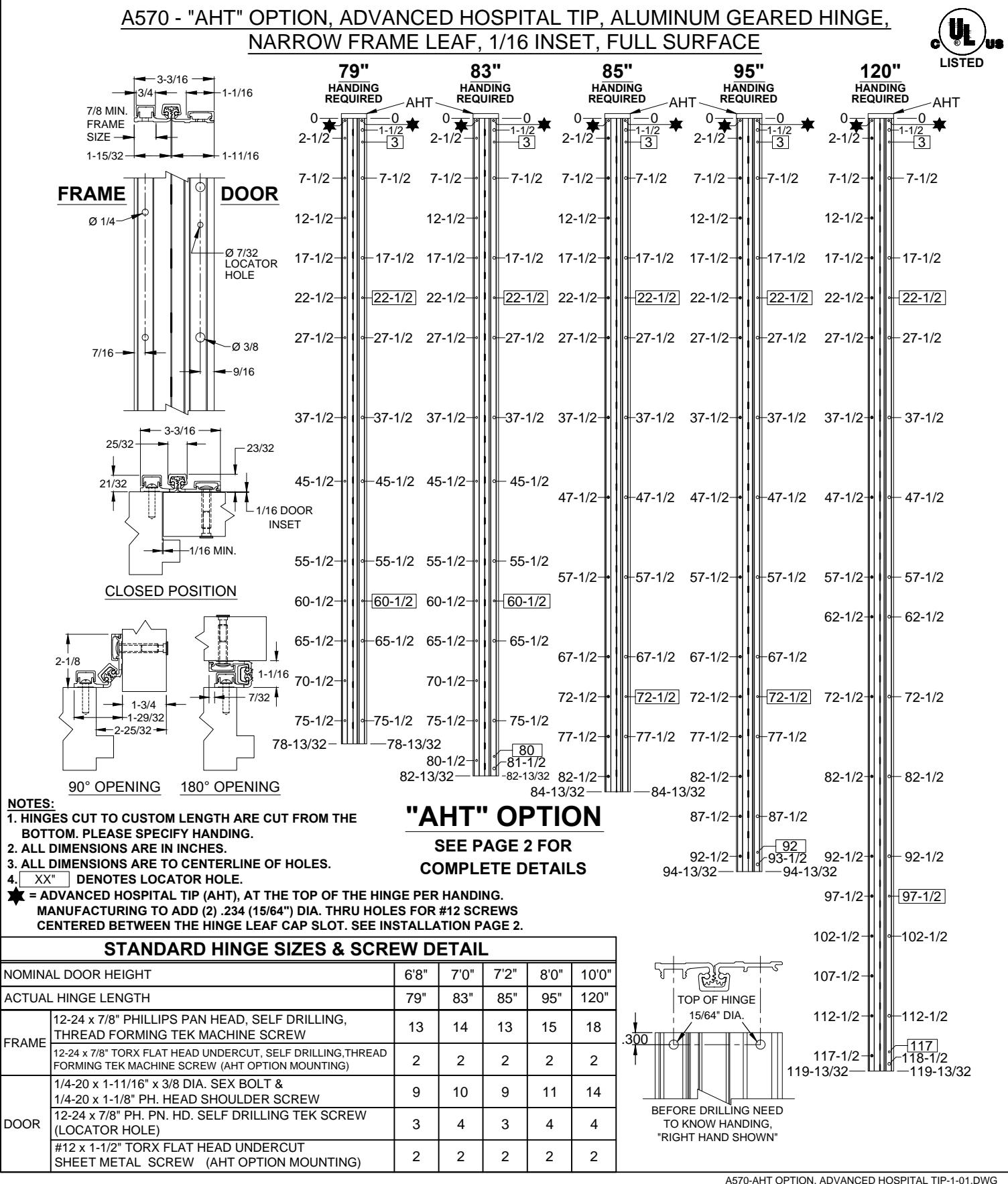

A570 - "AHT" OPTION, ADVANCED HOSPITAL TIP, ALUMINUM GEARED HINGE, NARROW FRAME LEAF, 1/16 INSET, FULL SURFACE

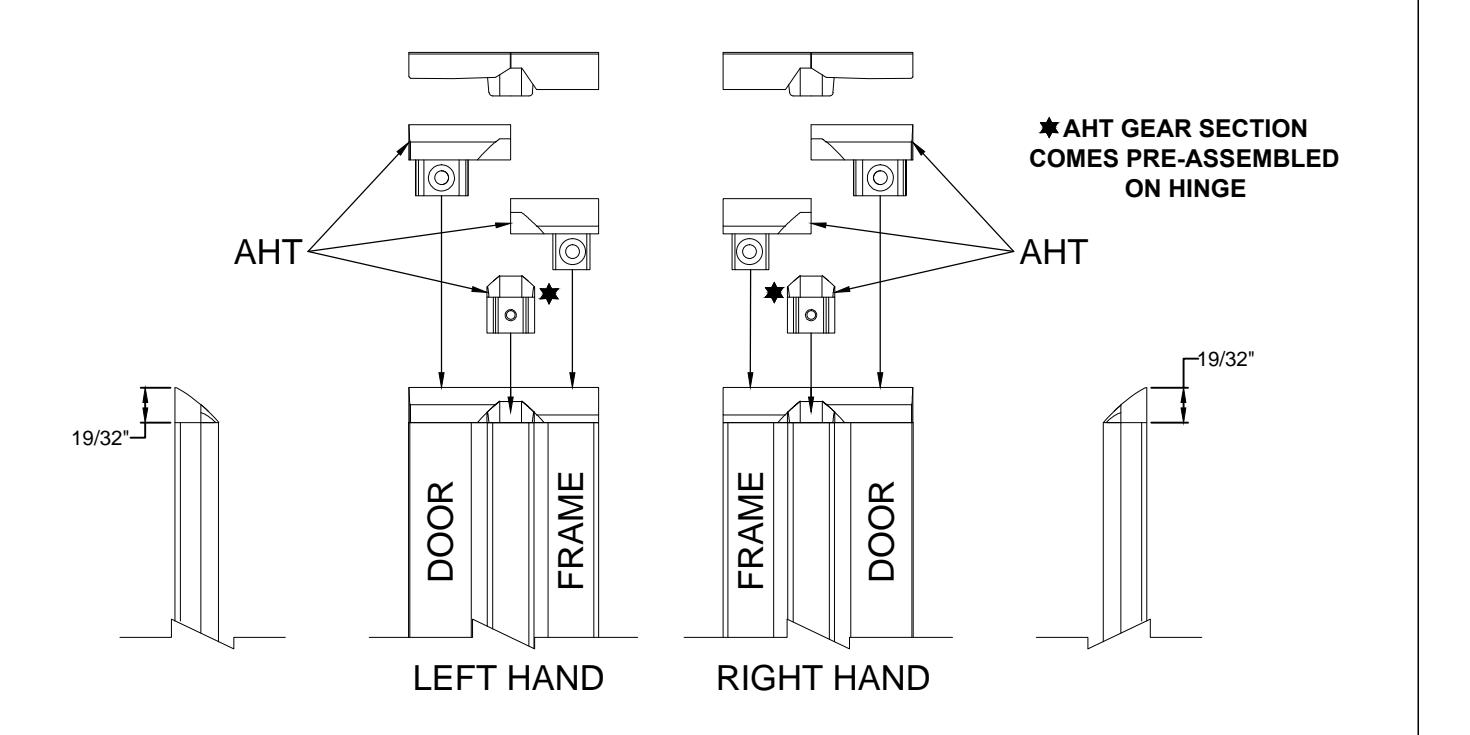

A570 AHT (ADVANCED HOSPITAL TIP) INSTALLATION INSTRUCTIONS

1. /E^d>>dKWK&,/E'ϭϵͬϯϮ͟&ZKDd,dKWK&d,KKZ
2. BEFORE INSTALLING DOOR AND FRAME LEAF COVERS, FASTEN DOOR AND FRAME SIDE HOSPITAL TIP SECTIONS

3. INSTALL DOOR SIDE AHT SECTION

a. SLIDE AHT SECTION INTO SLOT ON HINGE LEAF, THIS WILL LINE UP WITH THE PREDRILLED HINGE LEAF THRU-HOLE
ď͘&KZDd>KKZ^͕DZ<,K>>Kd/KE͕d,EZ/>>E&^dEd,,d^d/KEh^/E'WZKs/ϭϮͲϮϰyϳͬϴ͟dKZy&>d,͕hEZhd͕ SELF-DRILLING, THREAD FORMING TEK MACHINE SCREW
Đ͘&KZtKKKKZ^͕DZ<,K>>Kd/KEEZ/>>ϯͬϭϲ͟W/>Kd,K>͕&^dE,d^d/KEh^/E'WZKs/ηϭϮyϭͲϭͬϮ͟dKZy&>d,͕ UNDERCUT WOOD SCREW

4. INSTALL FRAME SIDE AHT SECTION

a. SLIDE AHT SECTION INTO SLOT ON HINGE LEAF, THIS WILL LINE UP WITH THE PREDRILLED HINGE LEAF THRU-HOLE
ď͘&KZDd>&ZD^͕DZ<,K>>Kd/KE͕d,EZ/>>E&^dEd,,d^d/KEh^/E'WZKs/ϭϮͲϮϰyϳͬϴ͟dKZy&>d,͕hEZhd͕ SELF-DRILLING, THREAD FORMING TEK MACHINE SCREW
Đ͘&KZtKK&ZD^͕DZ<,K>>Kd/KEEZ/>>ϯͬϭϲ͟W/>Kd,K>͕&^dE,d^d/KEh^/E'WZKs/ηϭϮyϭͲϭͬϮ͟dKZy&>d,͕ UNDERCUT WOOD SCREW
5. BEFORE TIGHTENING THE SCREWS DOWN COMPLETELY, DOOR AND FRAME AHT SECTIONS SHOULD BE FLUSH WITH THE TOP OF THE DOOR.
6. INSTALL DOOR AND FRAME LEAF COVERS

A570-AHT OPTION, ADVANCED HOSPITAL TIP-2-01.DWG

A570 - "AHT" OPTION ADVANCED HOSPITAL TIP

ISSUED 01-31-20 PAGE 2 OF 2
