A570 TW2-R Option, for electrical modification – Template

A570HD - "R" REMOVABLE OPTION, FOR ELECTRICAL MODIFICATION NARROW FRAME LEAF, 1/16 INSET, FULL SURFACE

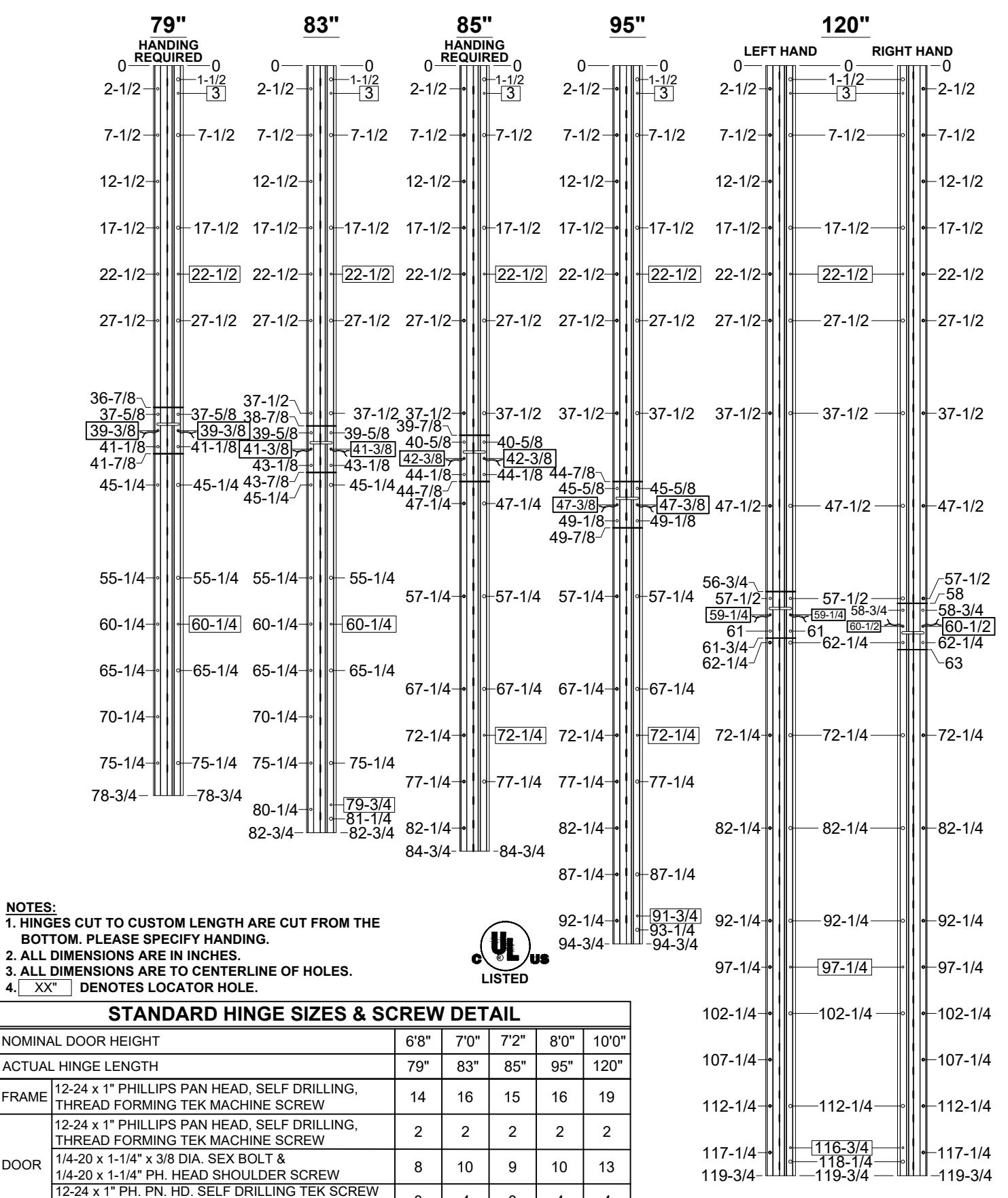

NOTES:

4. XX"

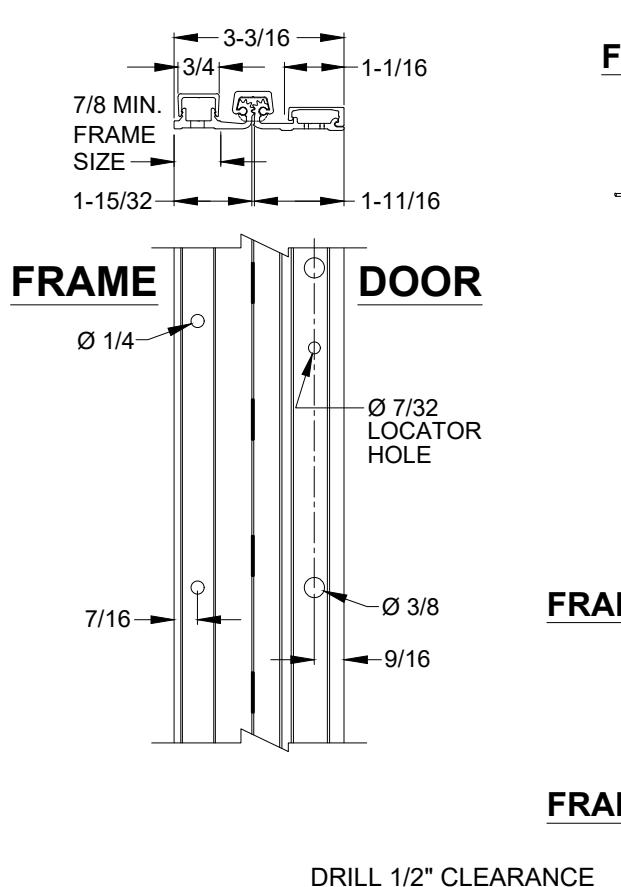

FRAME

DOOR

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

3

4

4

3

A570-R OPTION, FOR ELECTRICAL MODIFICATION-1-00.DWG

A570HD - "R" OPTION FOR ELECTRICAL MODIFICATION

© 2021 ABH Mfg., Inc. printed in USA

PAGE 1 OF 2 ISSUED 03-01-21

A570HD - "R" REMOVABLE OPTION, FOR ELECTRICAL MODIFICATION NARROW FRAME LEAF, 1/16 INSET, FULL SURFACE

SPECIFICATION:

DESCRIPTION: SINGLE CONDUCTOR #22 AWG MINIATURE HOOK-UP

WIRE FOR APPLICATIONS REQUIRING EXTREME FLEXIBILITY.

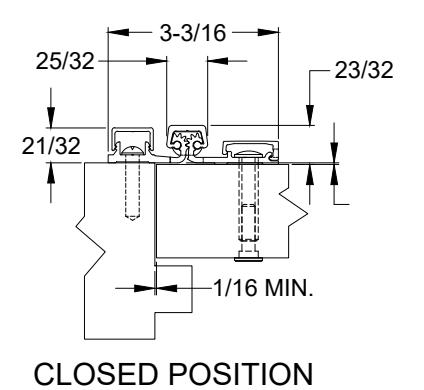

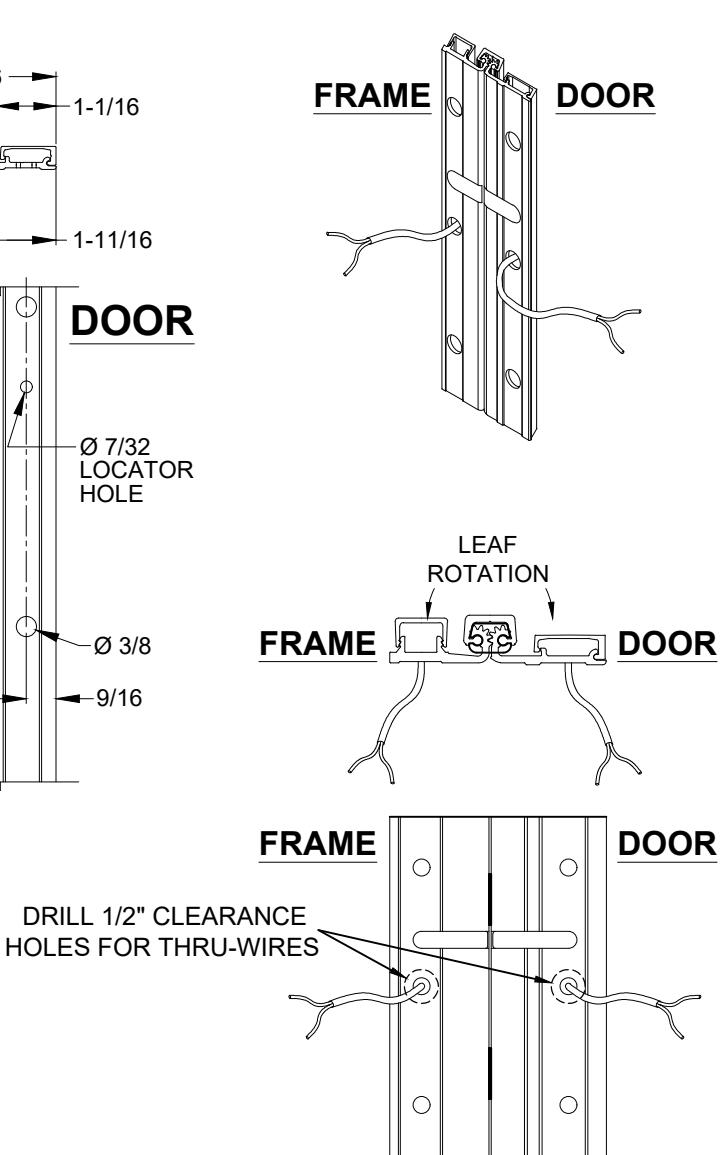

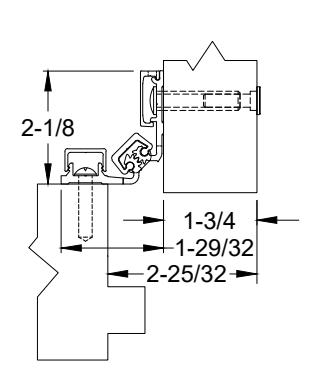

WIRE TRANSFER VIEW

CONDUCTOR: #22 AWG 168/44 (0.002") SOFT BARE COPPER LHL.

INSULATION: PROPRIETARY FORMULATION PVC 0.010" NOM. WALL MEETS

VW-1 FLAME REQUIREMENT.

DIAMETER: 0.053" ± 0.003".

16.7 OHMS MAX. @ 20°C, PER 1000 FT. RESISTANCE:

VOLTAGE RATING: 600 VOLTS RMS, DEPENDING ON SPECIFICATION.

AVAILABLE AS ROHS COMPLIANT.

MANUFACTURING INC.

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc.

1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A570-R OPTION, FOR ELECTRICAL MODIFICATION-2-00.DWG

A570HD - "R" OPTION FOR ELECTRICAL MODIFICATION

© 2021 ABH Mfg., Inc. printed in USA

PAGE 2 OF 2 ISSUED 03-01-21
