A561 Self Closing Hinge – Cut Sheet

A561

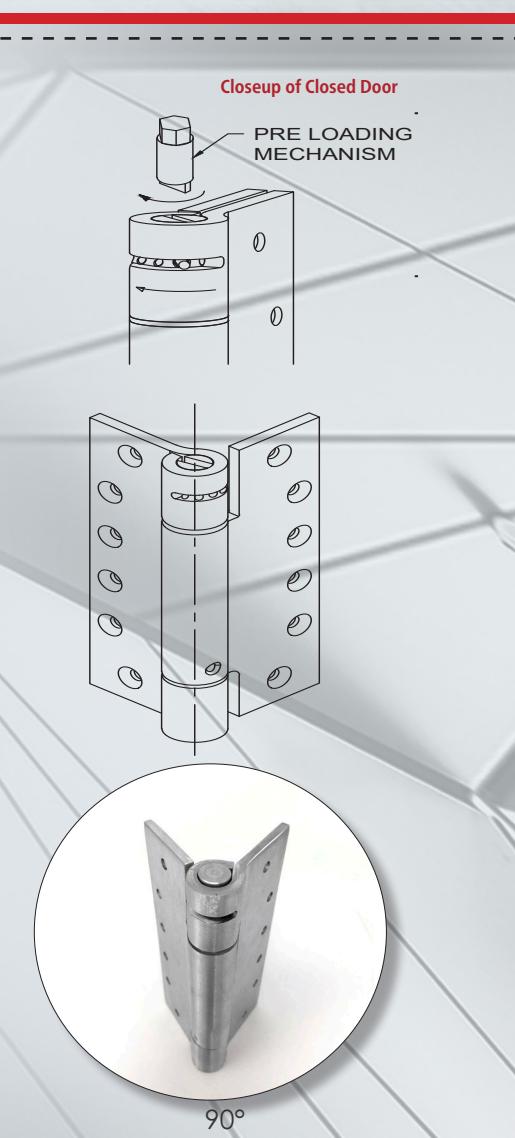

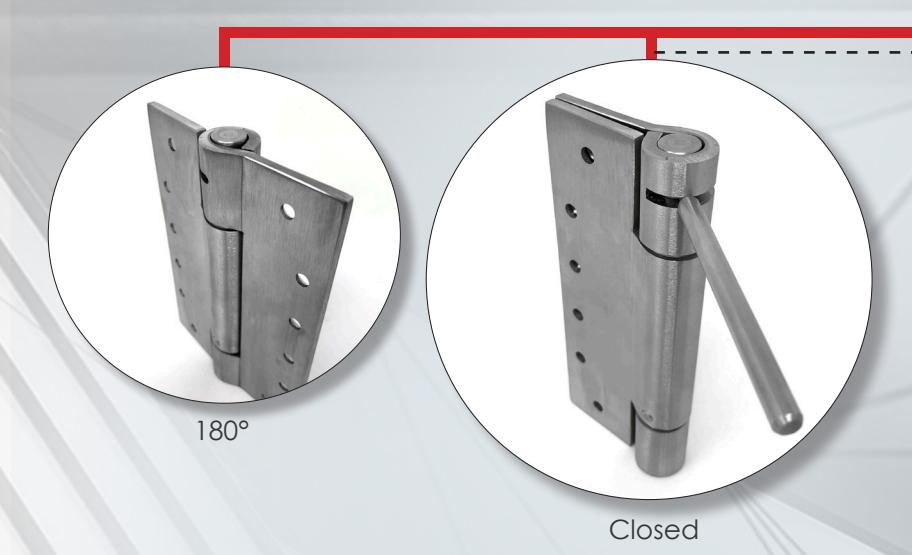

Spring Gate Hinge Full Mortise

Type: Full Mortise Spring Hinge LS Option: Less Spring (A561LS)

Material Thickness: 0.1875' (3/16") Stainless Steel

Door Width: 48" (maximum). Consult the ABH template for hinge quantity requirments.

Weigt Capacity: 600 lbs. (maximum). Consult the ABH template or hinge quantity requirments.

Material: (304) Stainless Steel

Spring Adjustability: Between 3 and 14 lbs.

Cycle Test: 2,500,000

Finishes: US3, US4, US9, US10, US10B, US32, US32D

Contact factory for custom finishes

Notes

*Product ships as single, assembled piece.

*Not listed for fire-rated doors.
