A561 LS (LESS SPRING) HINGE-Full Mortise-00 – Template
Open the original PDF document
View PDF

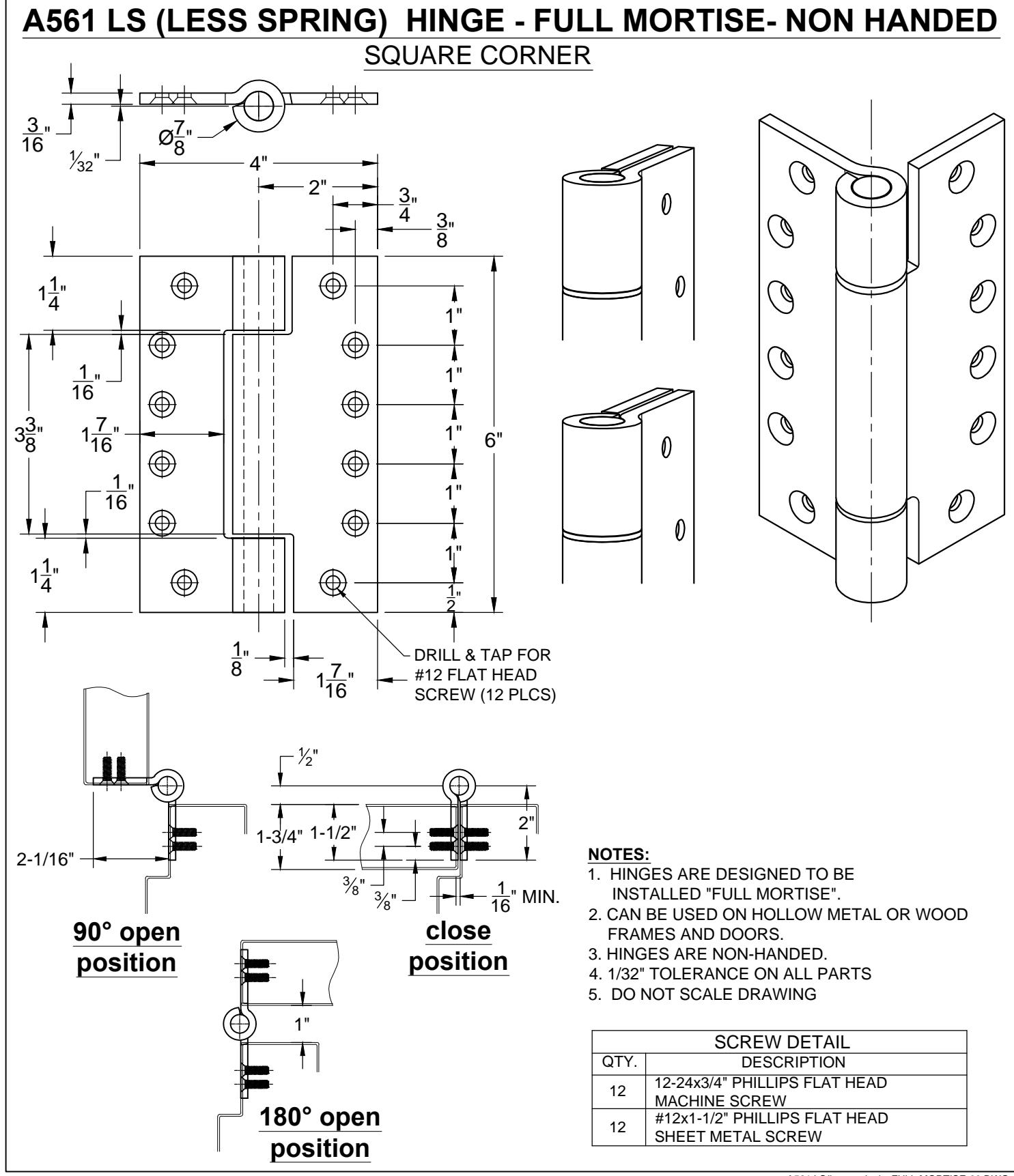

A561 LS(less spring) - FULL MORTISE-00.DWG
A561 LS (LESS SPRING) FULL MORTISE
© 2019 ABH Mfg., Inc. printed in USA
PAGE 1 OF 1 ISSUED 06-26-19
Open the original PDF document
View PDF
A561 LS(less spring) - FULL MORTISE-00.DWG
A561 LS (LESS SPRING) FULL MORTISE
© 2019 ABH Mfg., Inc. printed in USA
PAGE 1 OF 1 ISSUED 06-26-19
