Stainless Steel Continuous Pin & Barrel Hinges

Innovation, Quality, Customer Service...

Full Concealed

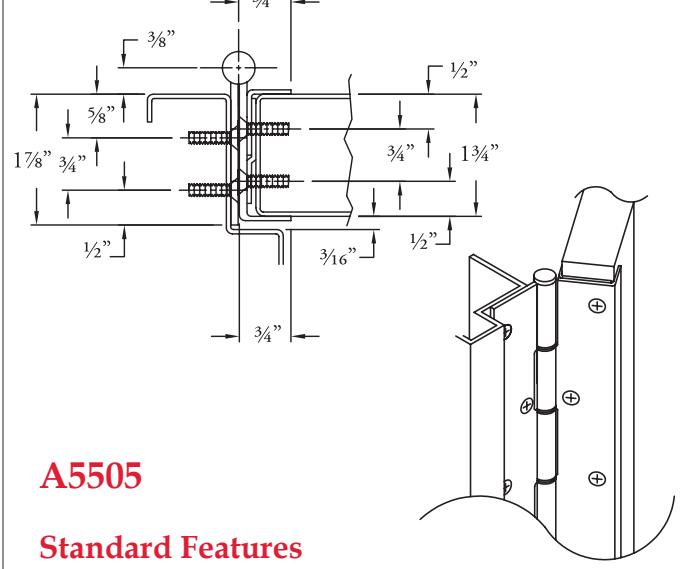

Standard Features

• Full concealed, extra heavy duty
• 12 gauge 304 grade stainless steel material
• •
• Welded hospital tip provided standard
• Door edge guard on stop side only
• 48" door width maximum
• 900 lbs. door weight maximum
• • Fasteners : 12-24 x ½" undercut machine screws, stainless steel
• • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

Options Available

• availability and details

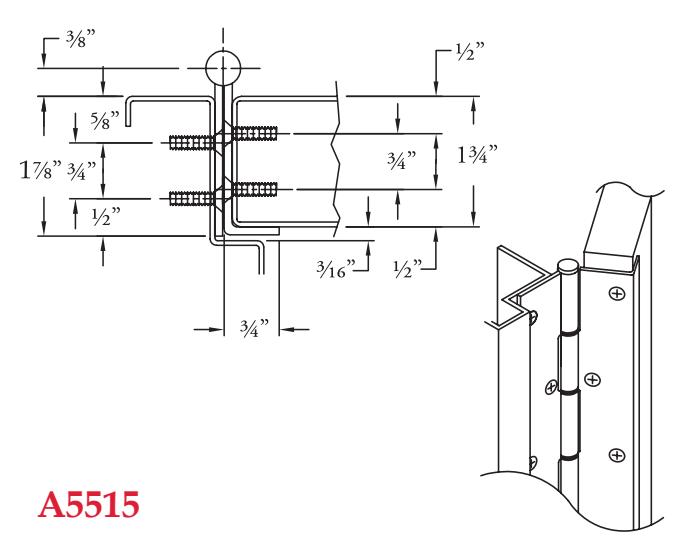

• Full concealed, heavy duty
• 12 gauge 304 grade stainless steel material for hinge leaves
• 16 gauge 304 stainless steel material for edge guard angle bracket
• •
• Welded hospital tip provided standard
• Door edge guards on both faces of the door
• 48" door width maximum
• 900 lbs. door weight maximum
• • Fasteners : 12-24 x ½" undercut machine screws, stainless steel
• • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

Options Available

• availability and details
