Stainless Steel Edge Guards

A548 - Three-Sided with Astragal

Standard Features

• Integral astragal provides additional security by protecting the latch from intruders or vandalism
• .050" material thickness 304 stainless steel
• Finishes available US32D, US32, US10*, US10B*, US3* and US4*
• Fasteners provided #6 x ⅝" head, undercut sheet metal screws
• Specify any length up to 120"
• For use on 1-¾" door
• Specify handing and either active or inactive door when ordering

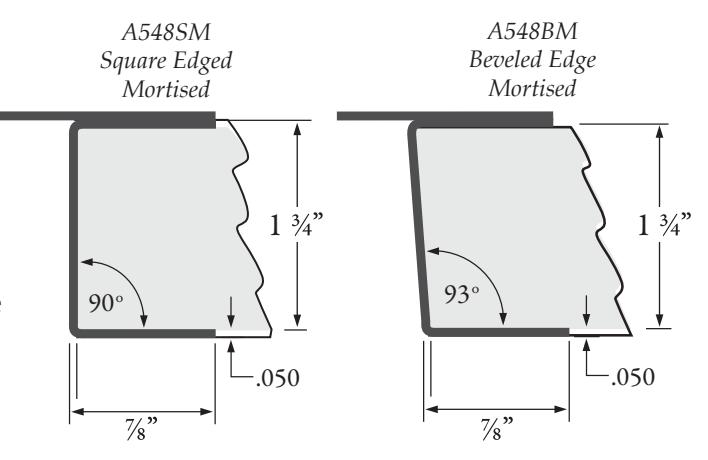

.050 1 90o A548S Square Edged Non-mortised A548B Beveled Edge Non-mortised .050 93o 1

Fire Rating

ABH edge guards come standard UL

• Wood or plastic-covered wood composite 1-½ hours
• Hollow metal, steel-covered, composite type

Options

• • Cut-Outs ABH offers numerous cut-outs for door hardware – see page H-5 and H-6 for details. Contact factory for custom cut-outs.
• • LL Lead Lined Astragal
• • AS Adjustable Studs allow for up to ⅜"alignment correction
• • SEC Security fasteners
• Custom leg sizes available
• Custom door thicknesses available
