Stainless Steel Edge Guards

Innovation, Quality, Customer Service...

A538 - Three-Sided

Standard Features

• .050" material thickness 304 stainless steel
• US10*, US10B*, US3* and US4*
• Fasteners provided #6 x ⅝" head, undercut sheet metal screws
• Specify any length up to 120"
• For use on 1-¾" door

Fire Rating

for use on:

• doors rated up to and including 1-½ hours
• Hollow metal, steel-covered, composite type

Options

• Cut-Outs ABH offers numerous cut-outs for door hardware – see pages H-6 to H-7 for details. Contact factory for custom cut-outs.
• AS Adjustable Studs allow for up to ⅜"alignment correction
• SEC Security fasteners
• Custom leg sizes available
• Custom door thicknesses available

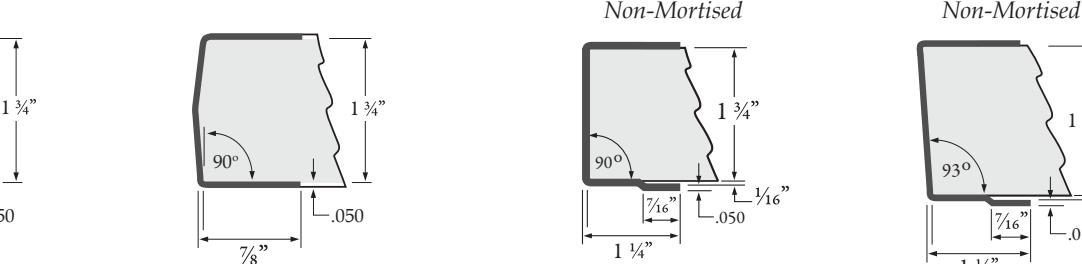

A538R

A538SM Square Edged Mortised

A538BM Beveled Edge Mortised

A538SO Square Edged Overlapping – Both Sides Non-Mortised

A538BO Beveled Edge Overlapping – Both Sides Non-Mortised

A538SO-1 Square Edged Overlapping – One Side

A538BO-1 Beveled Edge Overlapping – One Side Non-Mortised

Architectural Builders Hardware Manufacturing, Inc. 1222 Ardmore Avenue, Itasca, IL 60143 Tel: 630-875-9900 • Fax: 630-875-9918 / 800-932-9224 Web: www.abhmfg.com • Email: abhinfo@abhmfg.com
