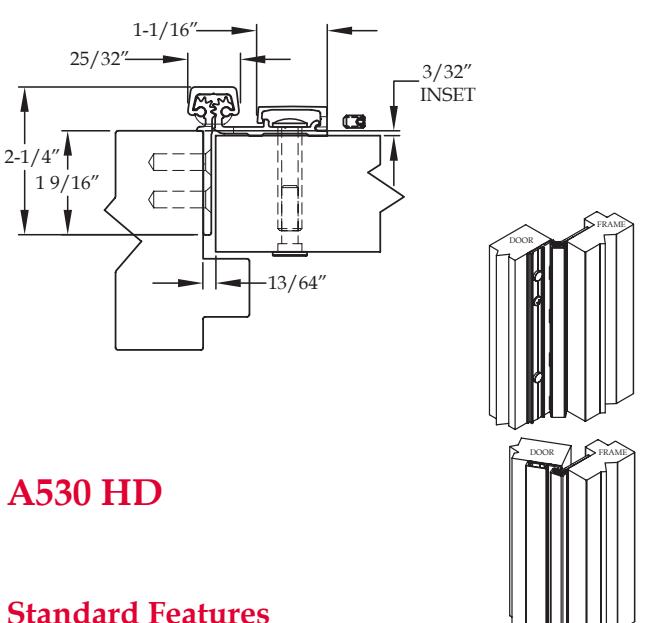

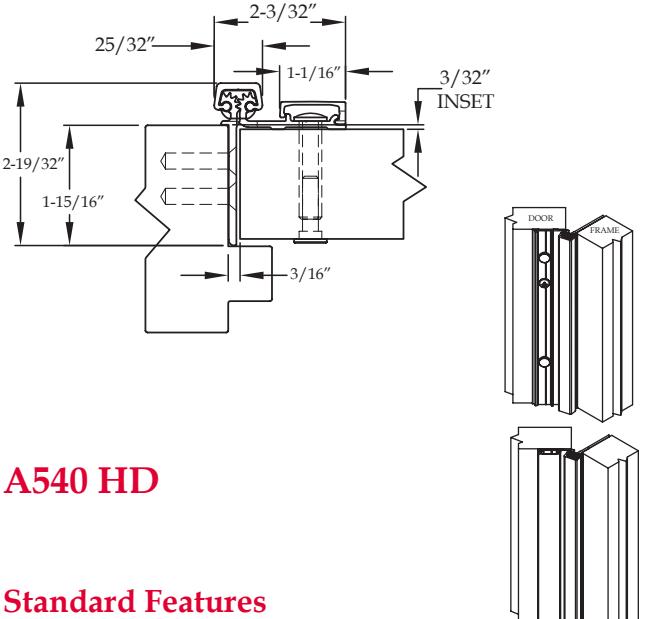

Aluminum Continuous Geared Hinges

Half Surface

• Standard Features
• Half surface, heavy duty • door inset
• 48" door width maximum
• 450 lbs. door weight maximum
• • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws for frame and ¼-20 sex bolts and shoulder bolts for door
• • Standard lengths : 79", 83", 85", 95" and 120"
• • Finishes : Clear, dark bronze and black anodized
• • Fire Rating
  • Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
  • Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details

• Half surface, heavy duty
• door inset
• 48" door width maximum
• 450 lbs. door weight maximum
• • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws for frame and ¼-20 sex bolts and shoulder bolts for door
• • Standard lengths : 79", 83", 85", 95" and 120"
• • Finishes : Clear, dark bronze and black anodized
• • Fire Rating
  • Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
  • Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details
