Stainless Steel Edge Guards

A528 - Two-Sided

Standard Features

• .050" material thickness 304 stainless steel
• US10*, US10B*, US3* and US4*
• Fasteners provided #6 x ⅝" head, undercut sheet metal screws
• Specify any length up to 120"
• For use on 1-¾" door

.050 1 90o Non-Mortised

A528S Square Edged

A528B

Fire Rating

for use on:

• Wood or plastic-covered wood composite 1-½ hours
• Hollow metal, steel-covered, composite 3 hours

A528SM Square Edged Mortised .050 1 90o

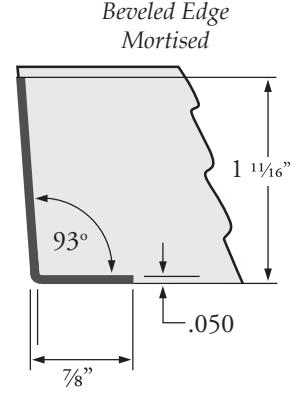

A528BM

Options

• Cut-Outs ABH offers numerous cut-outs for door hardware – see pages H-5 to H-7 for details. Contact factory for custom cut-outs.
• SEC Security fasteners
• Custom leg sizes available
• Custom door thicknesses available
