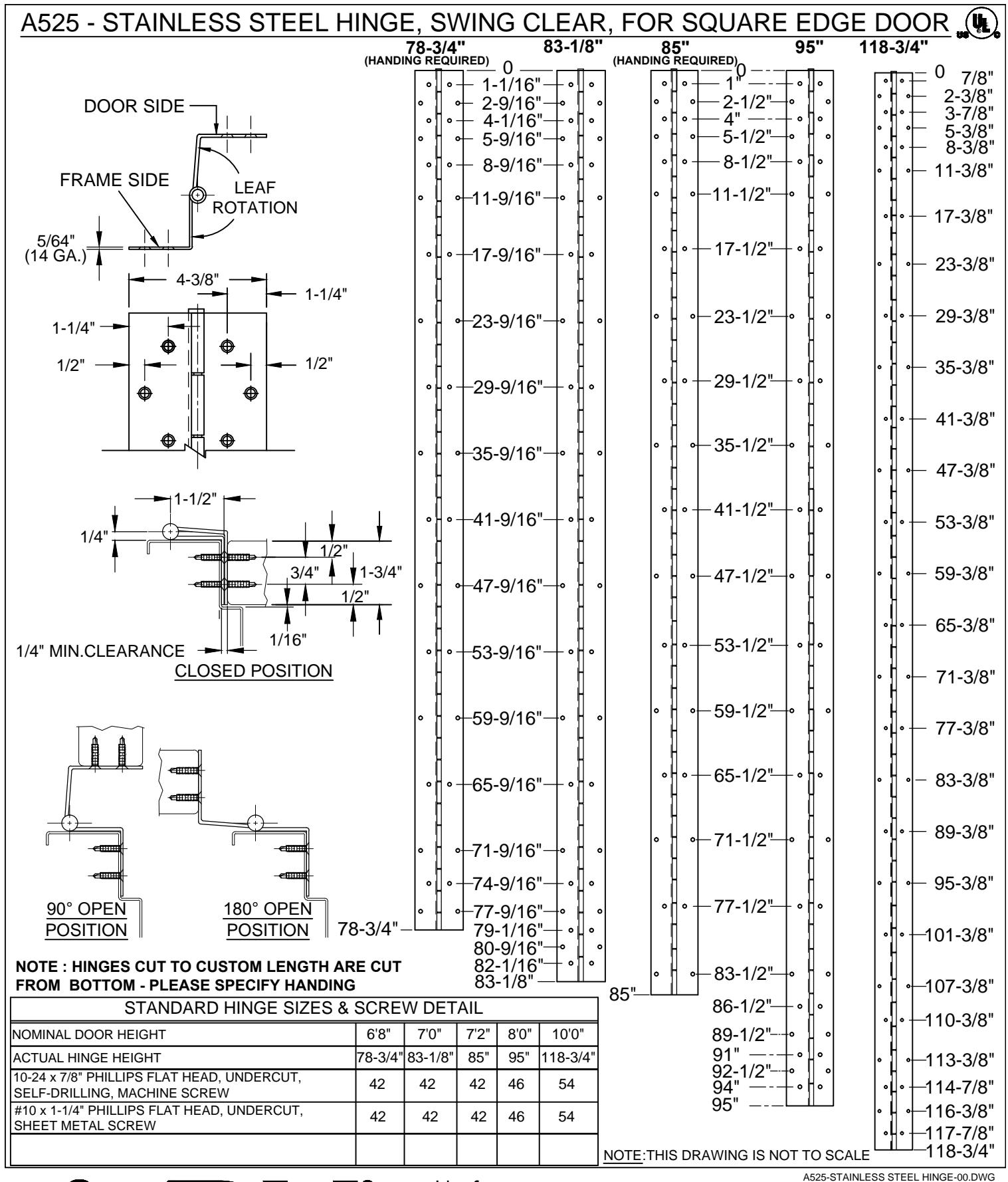

A525 Stainless Steel Barrel Continuous Hinges Full Mortise – Template
Open the original PDF document
View PDF
www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630,875,9900: FAX 800,9FAXABH (932,9224)
A525 STAINLESS STEEL HINGE
© 2019 ABH Mfg., Inc. printed in USA
PAGE 1 OF 1 ISSUED 08-26-19
