A511 Stainless Steel Pin & Barrel Continuous Hinge – Template
Open the original PDF document
View PDF
www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

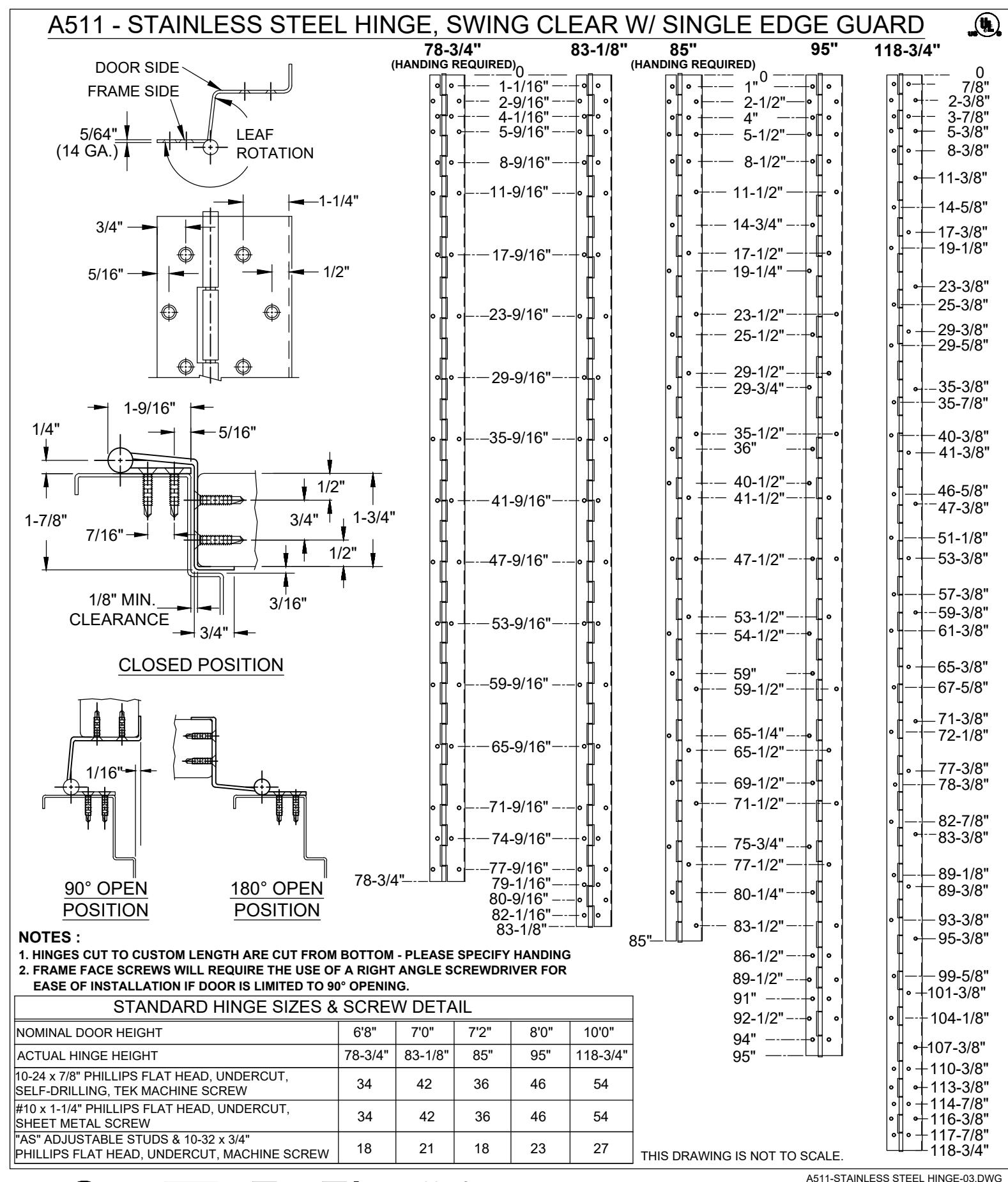

A511 STAINLESS STEEL HINGE
© 2021 ABH Mfg., Inc. printed in USA
PAGE 1 OF 1 REVISED12-20-21
