A509 Stainless Steel Pin and Rescue Stop – Cut Seet

Stainless Steel Pin & Barrel Rescue Stop

For use in behavioral health facilities, hospitals, correctional facilities, or any institution where it is needed to have the door swing in the opposite direction if something or someone obstructs the normal swing of the door. Used in conjunction with a double acting hinge like the A507 or A508 Hinges.

In an emergency situation the stop is manually pulled back to allow the door to move in the opposite direction. The emergency rescue stop comes standard with a Welded Hospital Tip

Features

• Stainless Steel provides a more durable finish and cleaner look than aluminum

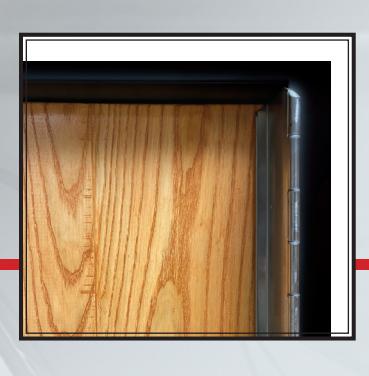

• Can be installed on a cased open frame or standard frame
• Locking Options Available
• Welded Hospital Tip Standard
• Used with ABH A507 or A508 Hinges

Technical Specifications

Hinge Material: 304 Stainless Steel

Finishes: Satin Stainless – Other Finishes by Request

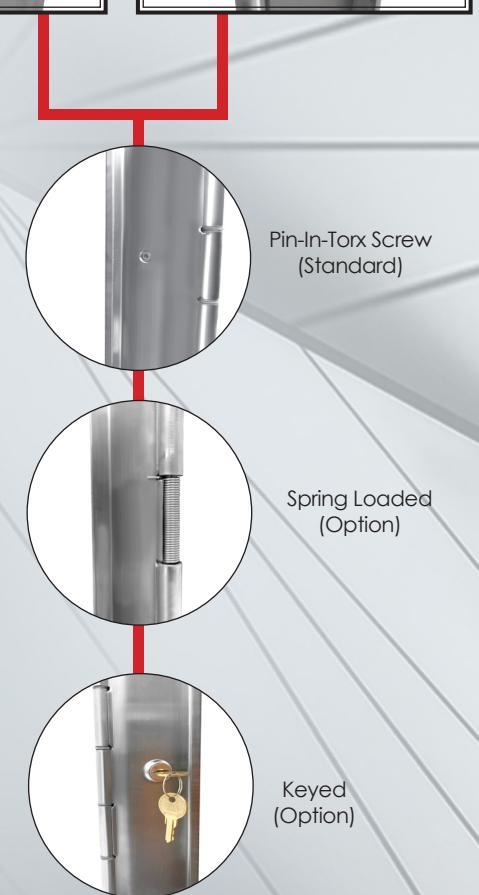

Fasteners: Pin-In-Torx Screws

BHMA: Meets ANSI/BHMA 156.26

Notes:

Behavioral health product applications are intended to provide a safer solution than traditional applications, they do not

eliminate risk.

ABH2020218
