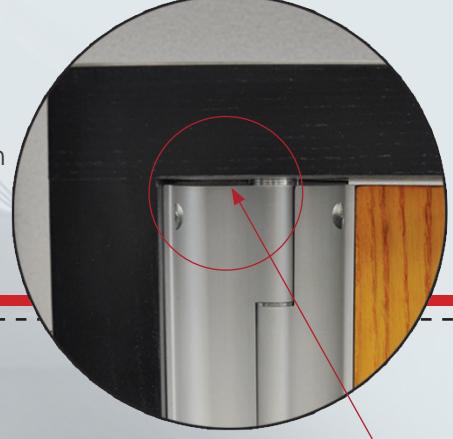

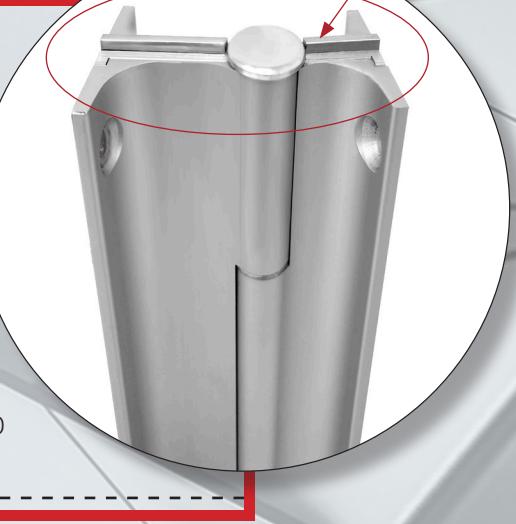

Standard No Gap Top

Anti-Ligature Aluminum Double Swing Hinge

For use in behavioral health facilities, hospitals, correctional facilities, or any institution where it is needed to have the door swing in the opposite direction if something or someone obstructs the normal swing of the door. Used in conjunction with a stop that can be moved out of the way of the door like the ABH A509.

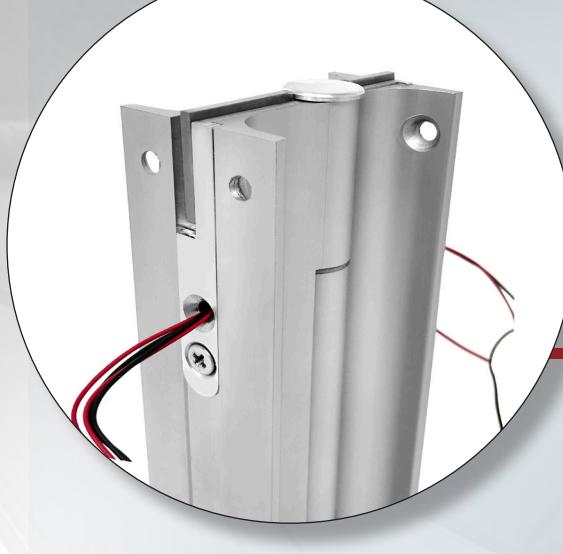

Alarm Switch Option

Options

• Alarm Switch Option
• Self Closing Option

Notes

• Center Mount
• Mounted Flush to the Inside face of door
• "No see through" design
• CMS Compliant

Technical Information

Hinge Material: Finishes: 6063-T6 Extruded Aluminum Clear, Dark Bronze, Black

Fasteners: Pin-In-Torx Screws

BHMA: ADA: Meets ANSI/BHMA 156.26 Grade 1 Meets barrier free reqirements of

ICC/ANSI A117.1-2009 and ADAAG-2010

Notes:

Behavioral health product applications are intended to provide a safer solution than traditional applications, they do not eliminate risk.

https://omh.ny.gov/omhweb/patient_safety_standards/guide.pdf
