A505RB CT Concealed Electrical Thru-Wire and Monitor Switch
Open the original PDF document
View PDF
www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900: FAX 800.9FAXABH (932,9224)

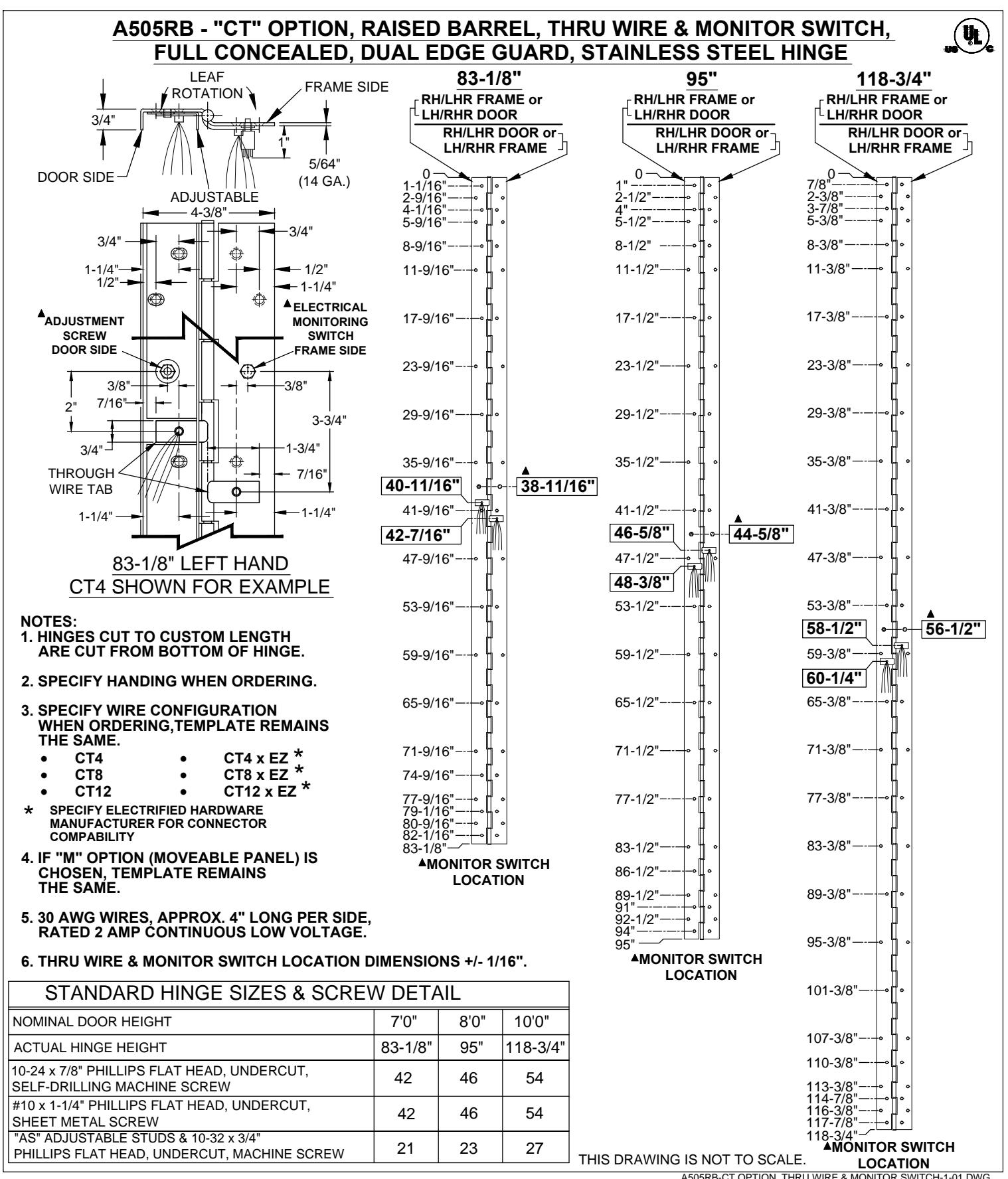

A505RB - "CT" OPTION THRU WIRE & MONITOR SWITCH
© 2018 ABH Mfg., Inc. printed in USA
PAGE 1 OF 2 REVISED 11-14-16
www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900: FAX 800.9FAXABH (932,9224)

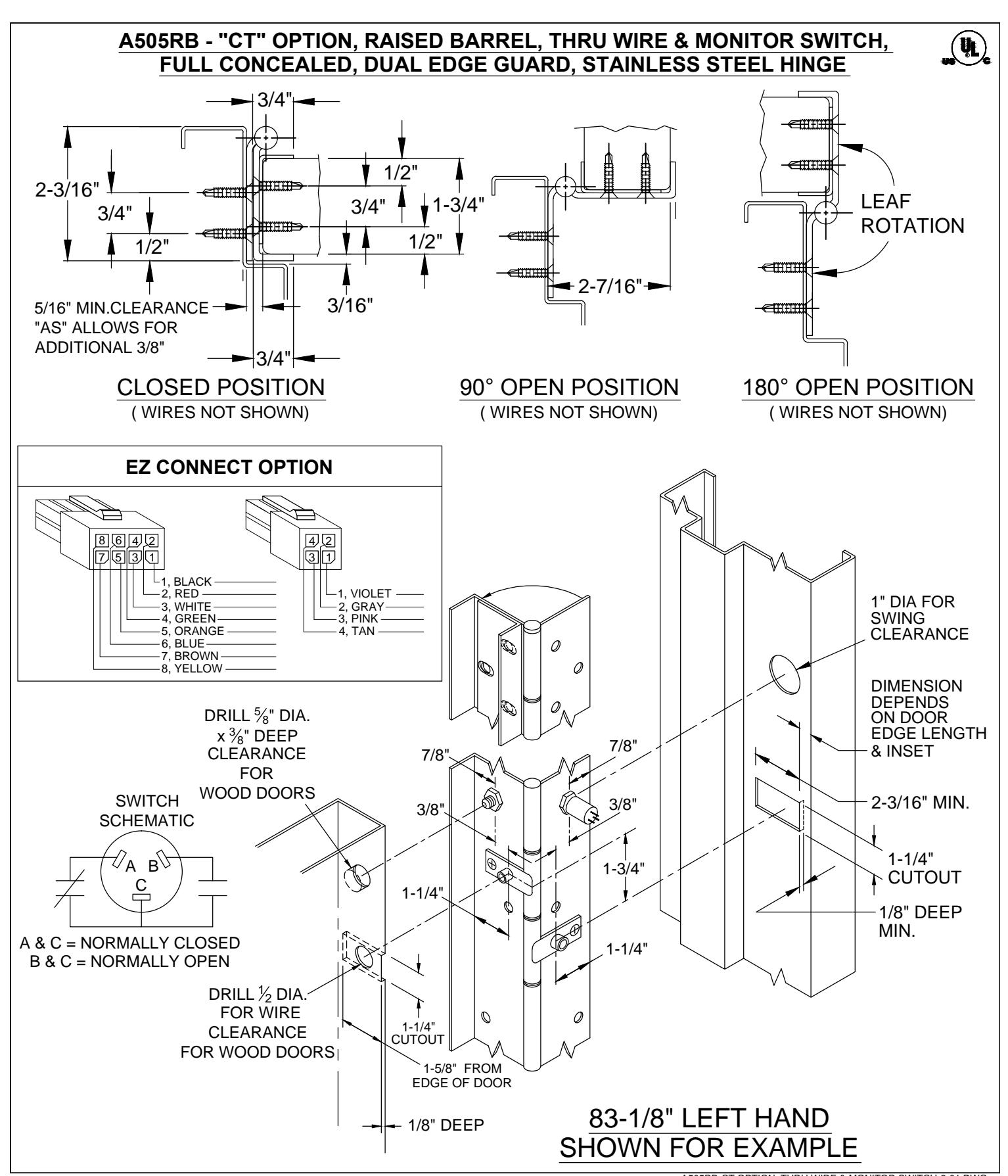

A505RB-CT OPTION, THRU WIRE & MONITOR SWITCH-2-01.DWG
A505RB - "CT" OPTION THRU WIRE & MONITOR SWITCH
© 2018 ABH Mfg., Inc. printed in USA
PAGE 2 OF 2 REVISED 11-14-16
