Stainless Steel Continuous Pin & Barrel Hinges

Innovation, Quality, Customer Service...

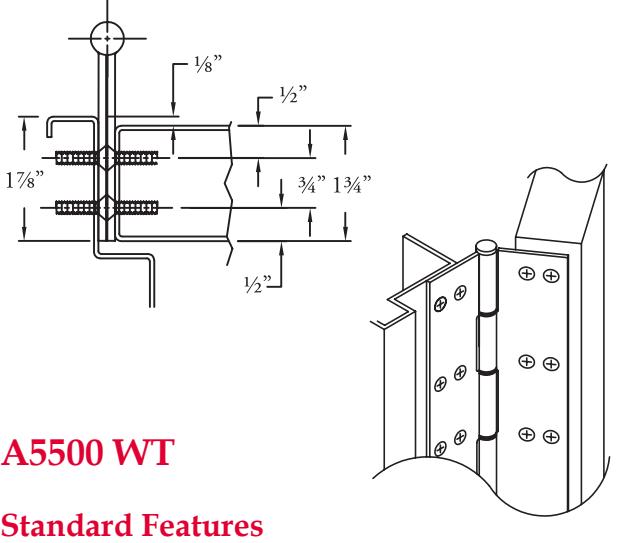

Full Concealed

• Full concealed, heavy duty
• 12 gauge 304 grade stainless steel material
• ⅛" door inset
• Wide throw for applications that need extra clearance for the door or the frame - 5" maximum from center of barrel to edge of hinge leaf
• The use of a caster on the lock side of tall or heavier doors is recomended to help carry to offset load
• 48" door width maximum
• 600 lbs. door weight maximum
• • Fasteners : 12-24 x ¹ undercut machine screws, /2" stainless steel
• • Lengths : 78-¾", 83-⅛", 85"and 95"
• • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

A505 Standard Features • Full concealed, heavy duty

• •
• Door edge guard on both faces of door
• 48" door width maximum
• 600 lbs. door weight maximum
• • Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼" undercut wood screws, stainless steel
• • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

Options Available

• availability and details

Options Available

• availability and details
