Stainless Steel Continuous Pin & Barrel Hinges

Innovation, Quality, Customer Service...

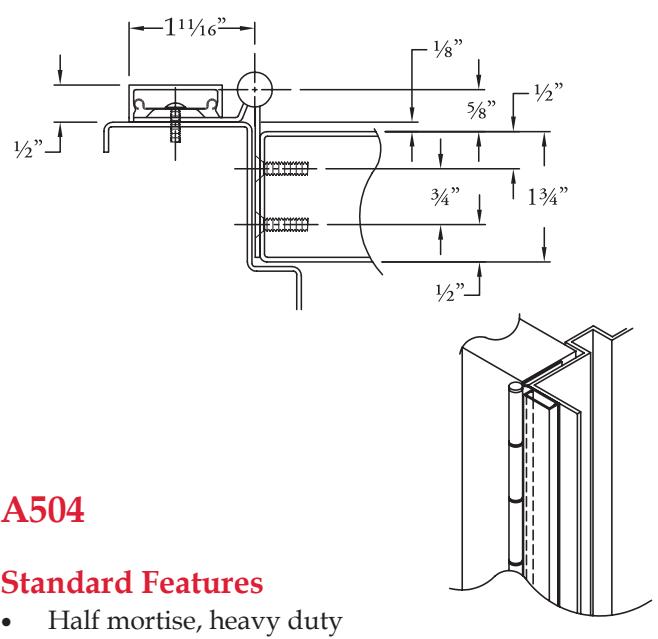

Half Mortise

• ⅛" door inset
• 48" door width maximum
• 600 lbs. door weight maximum
• Frame leaf fastener cover is clear anodized aluminum
• • Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel for door and ¼-20 x ¾" round head selfdrilling tek machine screws, zinc plated for frame
• • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

Options Available

• availability and details

• •

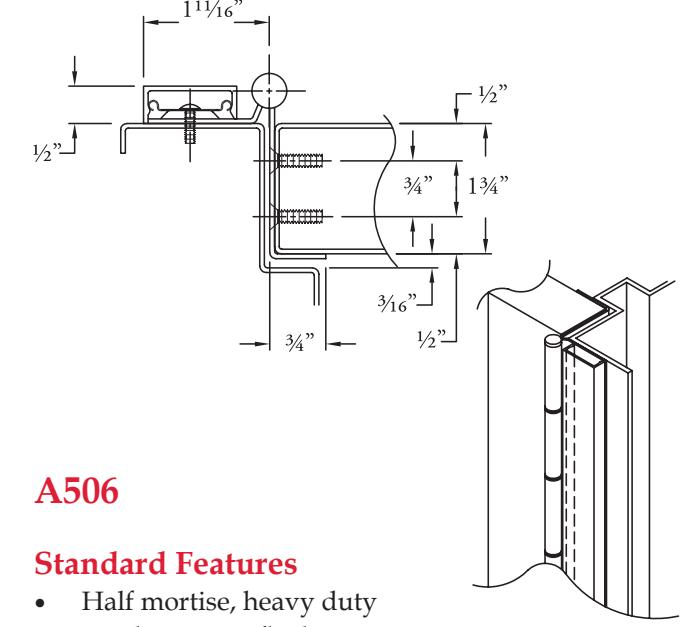

• Door edge guard on stop side only
• 48" door width maximum
• 600 lbs. door weight maximum
• Frame leaf fastener cover is clear anodized aluminum
• • Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel for door and ¼-20 x ¾" round head selfdrilling tek machine screws, zinc plated for frame
• • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

Options Available

• availability and details
