Stainless Steel Continuous Pin & Barrel Hinges

Half Surface & Full Surface

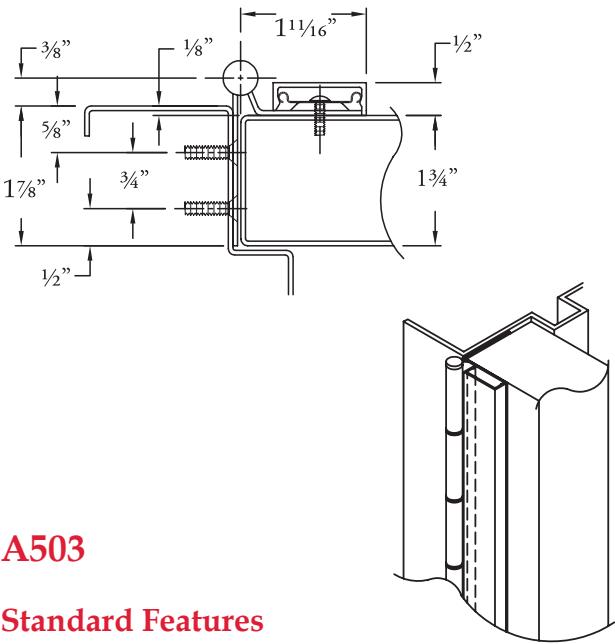

• Half surface, heavy duty
• ⅛" door inset
• 48" door width maximum
• 600 lbs. door weight maximum
• Door leaf fastener cover is clear anodized aluminum
• • Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel for frame and ¼-20 x ¾" round head selfdrilling tek machine screws, zinc plated for door
• • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

Options Available

• availability and details

A502

Standard Features

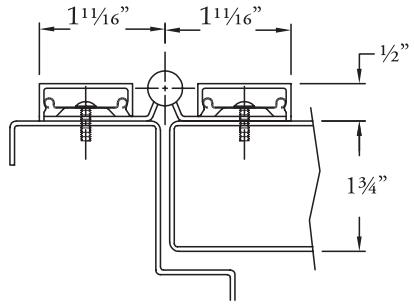

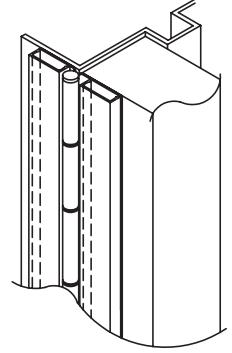

• Full surface, heavy duty
• •
• 48" door width maximum
• 600 lbs. door weight maximum
• Frame and door leaf fastener covers are clear anodized aluminum
• • Fasteners : ¼-20 x ¾" round head self-drilling, thread-forming tek machine screws, zinc plated
• • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

Options Available

• availability and details
