A501 Partition Door Hinge – Cut Sheet

Open the original PDF document

Partition Door Full Surface Hinge

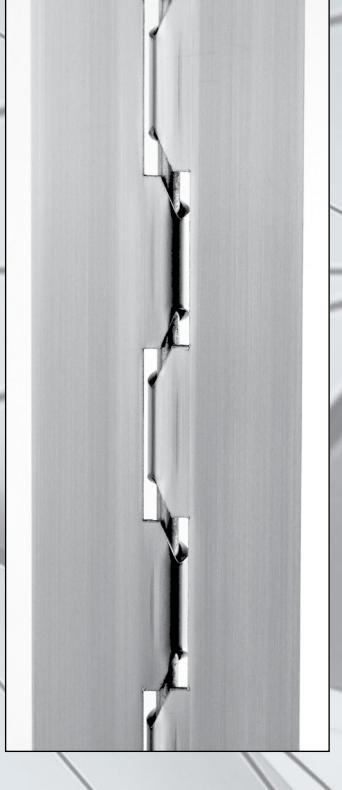

The ABH A501 Partition Door Stainless Steel Hinge is a Full Surface Hinge designed to be used in restrooms stalls or other similar applications. This hinge will keep the door open at 20° so the user knows there is nobody in the restroom stall and the hinge leaf's are angle cut so your door will close with the camming action.

Standard Features:

Full Surface, Heavy Duty
12 Guage 304 Stainless Steel
20° Open Rest Position-Standard
(3) Custom Stops Provided for 100° Opening
48" Door Width Maximum

Finishes:

US32D- Satin Stainless Steel
Custom Powder Coating Available

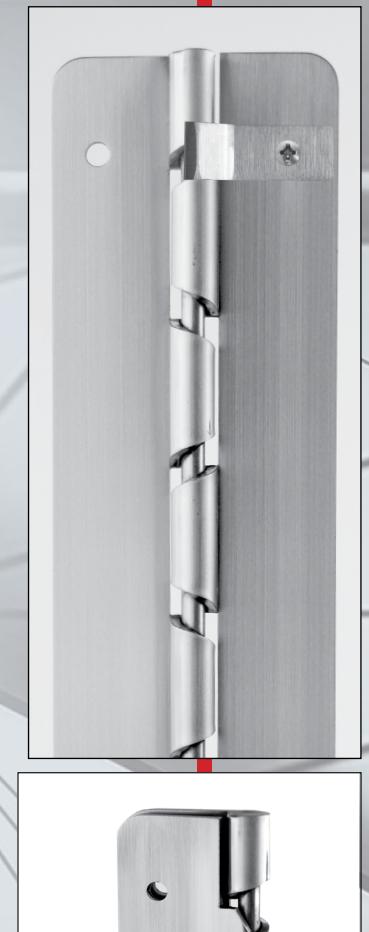

Add-on Stop
