A500 Stainless Steel Pin & Barrel Continuous Hinges Full Mortise – Template
Open the original PDF document
View PDF
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

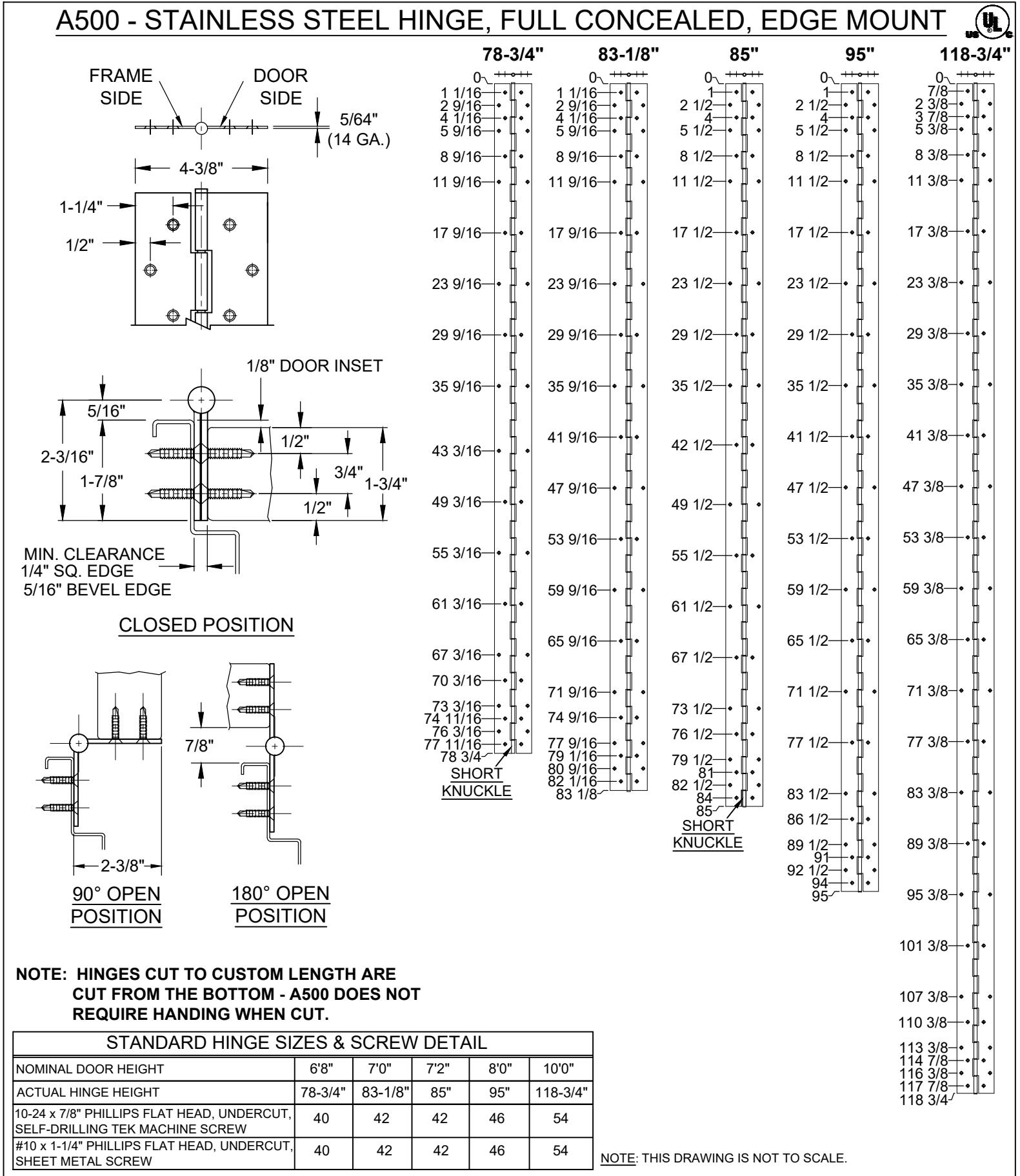

A500-STAINLESS STEEL HINGE-01.DWG
A500 STAINLESS STEEL HINGE
© 2020 ABH Mfg., Inc. printed in USA
PAGE 1 OF 1 ISSUED 03-25-20
