Stainless Steel Continuous Pin & Barrel Hinges

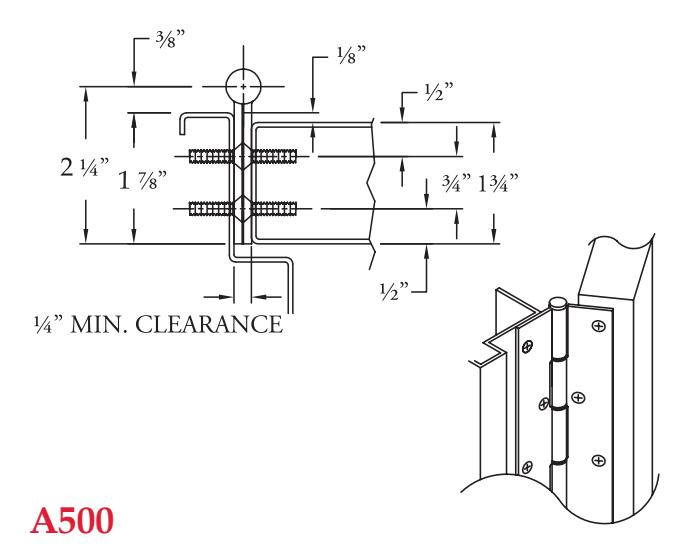

Full Concealed

Standard Features

• Full concealed, heavy duty
• ⅛" door inset
• 48" door width maximum
• 600 lbs. door weight maximum
• • Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼" undercut wood screws, stainless steel
• • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

Options Available

• availability and details

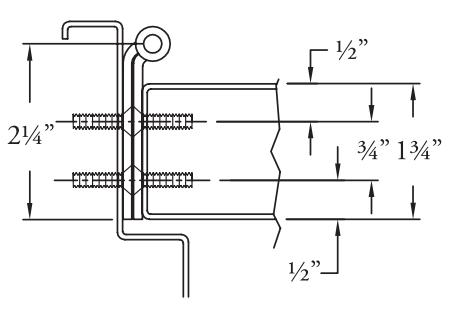

A500RB

Standard Features

• Raised barrel (swaged) for door set back in deep reveals
• Full concealed, heavy duty
• 48" door width maximum
• 600 lbs. door weight maximum
• • Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼" undercut wood screws, stainless steel
• • Lengths: 78-¾", 83-⅛", 85", 95" and 118-¾"
• • Finishes: US32D Satin Stainless Steel or US32 Bright Stainless Steel
• • Fire Rating (U.S.A. and Canada) on 4'0" x 10'0" doors, based on the following
  • 20 minutes wood doors
  • 90 minutes hollow metal and composite
  • 3 hours hollow metal doors

Options Available

• availability and details
