A211HD & A213HD Aluminum Continuous Gear Hinges Half Surface – Cut Sheet

Open the original PDF document

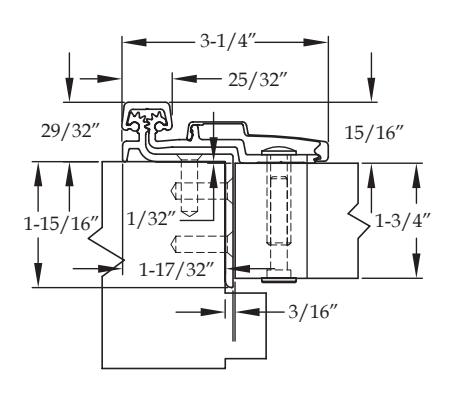

Aluminum Continuous Geared Hinges

Half surface, heavy duty
door inset
Swing clear application
48" door width maximum
450 lbs. door weight maximum
• Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws for frame and ¼-20 sex bolts and shoulder bolts for door
• Standard lengths : 79", 83", 85", 95" and 120"
• Finishes : Clear, dark bronze and black anodized
• Fire Rating
- Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
- Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

• See pages F-7 to F-8 for option availability and details

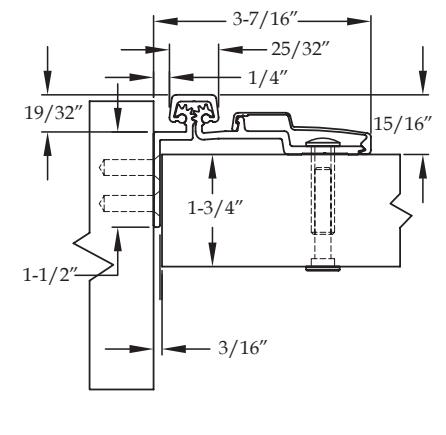

Half surface, heavy duty
guards require a long reach
48" door width maximum
450 lbs. door weight maximum
• Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws for frame and ¼-20 sex bolts and shoulder bolts for door
• Standard lengths : 79", 83", 85", 95" and 120"
• Finishes : Clear, dark bronze and black anodized
• Fire Rating
- Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
- Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

• See pages F-7 to F-8 for option availability and details
