A210 - "AHT" OPTION ADVANCED HOSPITAL TIP

PAGE 1 OF 2 REVISED 8-11-21

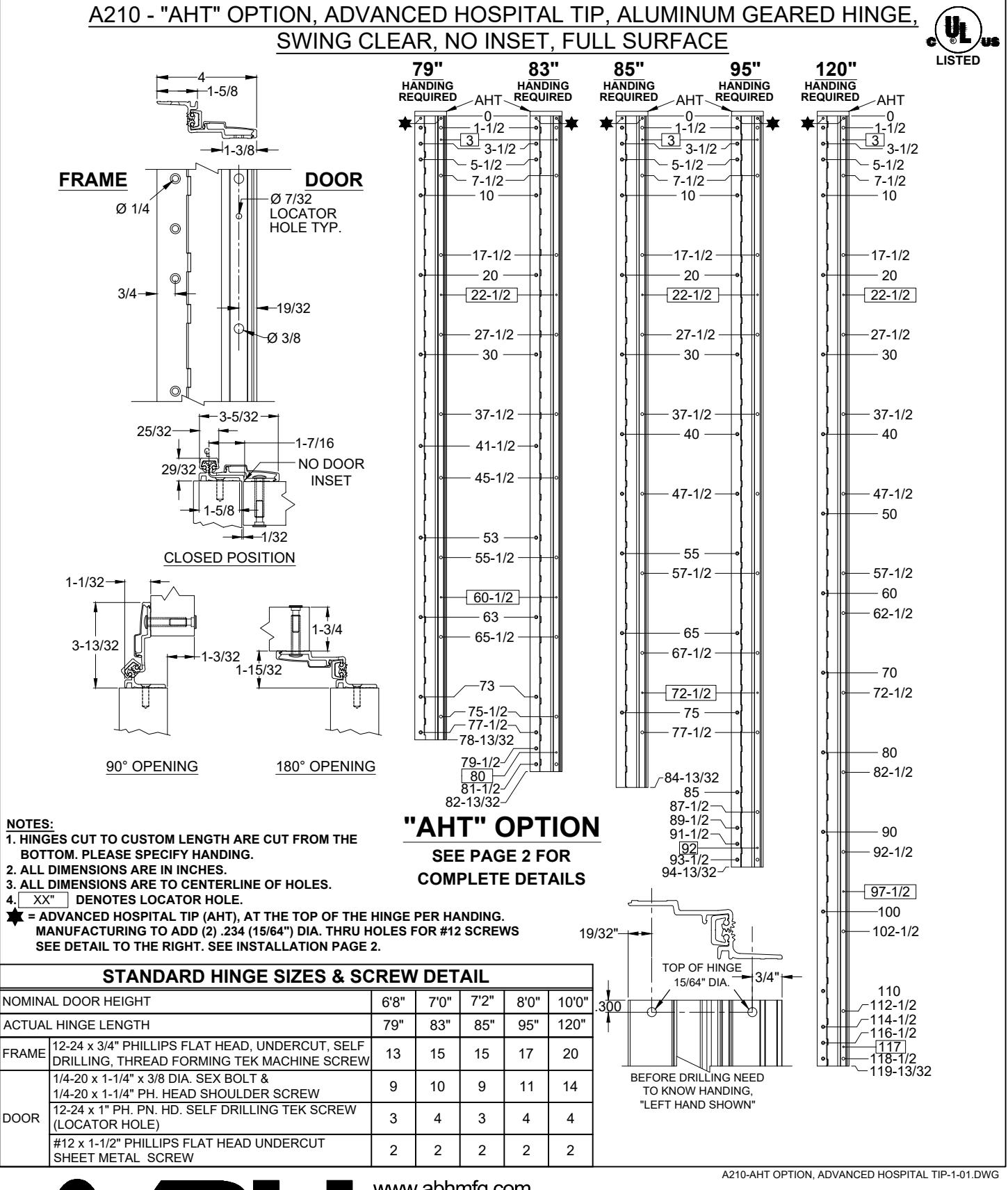

A210 - "AHT" OPTION, ADVANCED HOSPITAL TIP, ALUMINUM GEARED HINGE, SWING CLEAR, NO INSET, FULL SURFACE

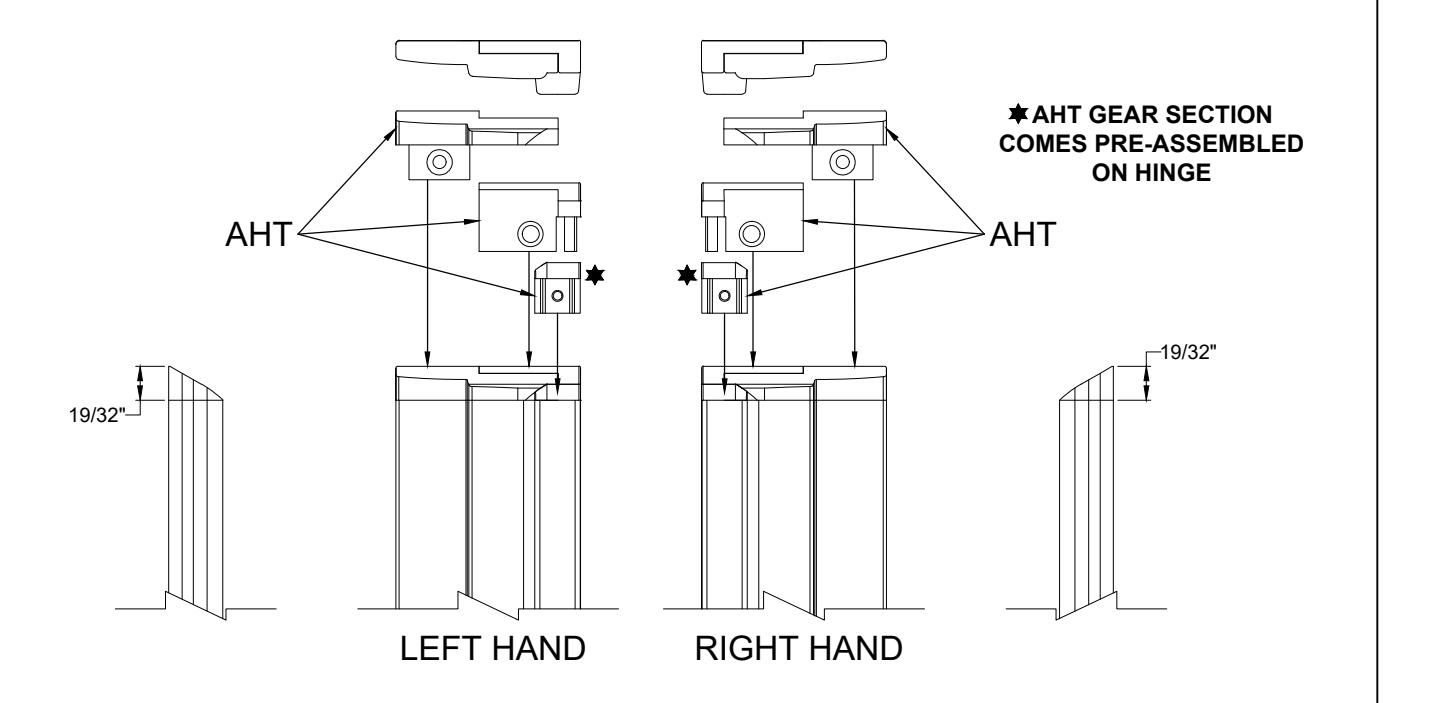

A210 AHT (ADVANCED HOSPITAL TIP) INSTALLATION INSTRUCTIONS

1. INSTALL TOP OF HINGE 19/32" FROM THE TOP OF THE DOOR
2. BEFORE INSTALLING DOOR LEAF COVER, INSTALL FRAME AND THEN DOOR SIDE HOSPITAL TIP SECTIONS

3. INSTALL FRAME SIDE AHT SECTION

a. SLIDE AHT SECTION OVER HINGE LEAF, THIS WILL LINE UP WITH THE PREDRILLED HINGE LEAF THRU-HOLE
b. FOR METAL FRAMES, MARK HOLE LOCATION, THEN DRILL AND FASTEN THE AHT SECTION USING PROVIDED 12-24 X 7/8" PH FLAT HEAD, UNDERCUT, SELF-DRILLING, THREAD FORMING TEK MACHINE SCREW
c. FOR WOOD FRAMES, MARK HOLE LOCATION AND DRILL 3/16" PILOT HOLE, FASTEN AHT SECTION USING PROVIDED #12 X 1-1/2"PH FLAT HEAD , UNDERCUT WOOD SCREW

4. INSTALL DOOR SIDE AHT SECTION

a. SLIDE AHT SECTION INTO SLOT ON HINGE LEAF, THIS WILL LINE UP WITH THE PREDRILLED HINGE LEAF THRU-HOLE
b. FOR METAL DOORS, MARK HOLE LOCATION, THEN DRILL AND FASTEN THE AHT SECTION USING PROVIDED 12-24 X 7/8" PH FLAT HEAD, UNDERCUT, SELF-DRILLING, THREAD FORMING TEK MACHINE SCREW
c. FOR WOOD DOORS, MARK HOLE LOCATION AND DRILL 3/16" PILOT HOLE, FASTEN AHT SECTION USING PROVIDED #12 X 1-1/2"PH FLAT HEAD , UNDERCUT WOOD SCREW
5. BEFORE TIGHTENING THE SCREWS DOWN COMPLETELY, DOOR AND FRAME AHT SECTIONS SHOULD BE FLUSH WITH THE TOP OF THE DOOR.
6. INSTALL DOOR LEAF COVER.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A210-AHT OPTION, ADVANCED HOSPITAL TIP-2-01.DWG

printed in USA

PAGE 2 OF 2 A210 - "AHT" OPTION ADVANCED HOSPITAL TIP c 2019 ABH Mfg., Inc.
