A210HD & A570HD AHT Advanced Hospital Tip – Cut Sheet

Advanced Hospital Tips Full Surface

ABH Advanced Hospital Tips (AHT) are designed for use in behavioral health facilities, hospitals, correctional facilities or any institution where there are ligature risks. While most hospital tips are designed to work only in the closed position, the AHT works whether the hinge is open or closed. Each AHT has been designed to work with the specific hinge needed for the door and frame application at hand.

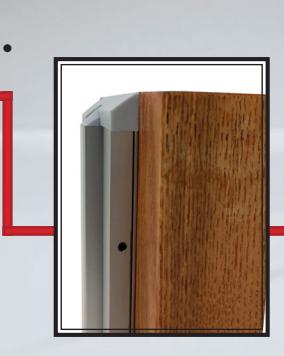

Possible ligature points present without the use of Hospital Tips

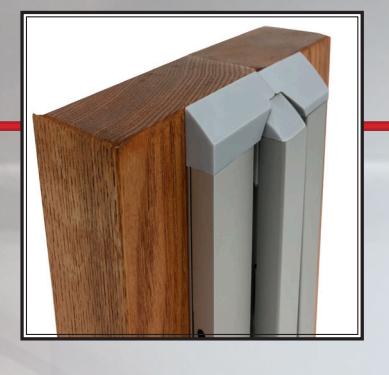

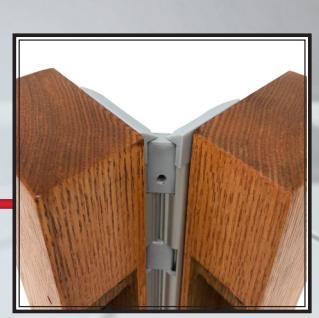

Ligature points eliminated with the use of Hospital Tips

Possible ligature points present without the use of Hospital Tips

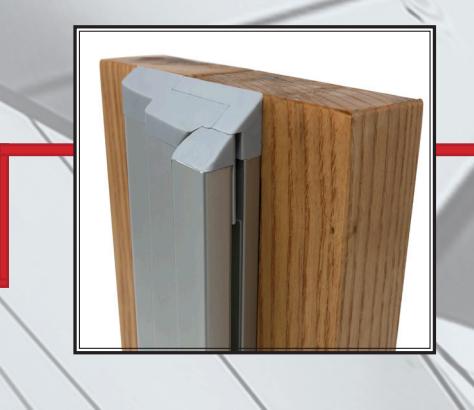

Ligature points eliminated with the use of Hospital Tips

*Note: Thickness of the door must be specified before ordering hinges.

ABH2020311
