9805_9806 4-Wh Hanger Parts Bag for 9628CS_9629CS_9631CS_9850HD_9852HD – I-SD00431-Rev01

Contents:		Qty:
1.	4-wheel Roller	2
2.	Hanger Plate	2	1.
3.	Floor Guide (9883CS)	2		3.	4.
4.	M5.5 x 32mm PPHW Hanger Plate Screw	4
5.	M4.2 x 13mm Washer PHW Floor Guide Screw	2				6.
6.	Hanger Wrench	1	2.		5.

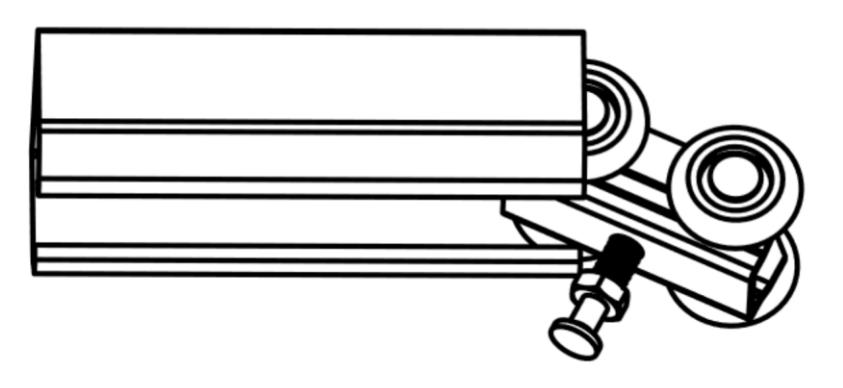

1 Insert the Rollers

• Insert both 4-wheel rollers into the track

Figure 1

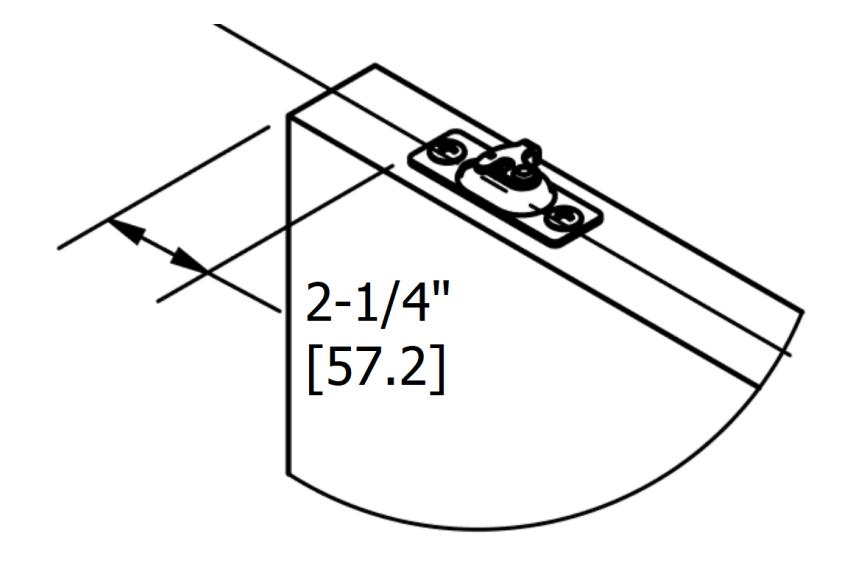

2 Install the Hanger Plates

• Position both hanger plates center of the top door edge thickness. One 2-1/4" from the left door edge and the other 2-1/4" from the right door edge. Make sure the slots on both hanger plates are facing the pocket side door edge. See Figure 2.
• Create pilot holes using a 7/64" drill bit and the hanger plates as templates
• • Install the hanger plates using the M5.5 x 32mm Pan Phillips Head Wood Screws

Figure 2

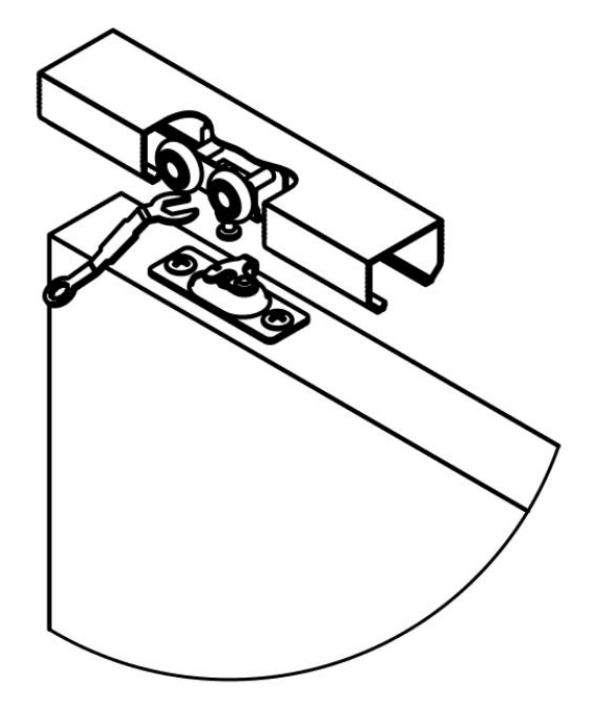

3 Latch and Adjust the Door Hangers

• Unlatch the hanger plates
• Slide the hanger plates' slot onto the 4-wheel rollers' bolt
• Latch the hanger plates
• Use the hanger wrench provided to adjust the door hangers. Note: There is about half an inch of adjustment that can be made with the door hangers

Figure 3

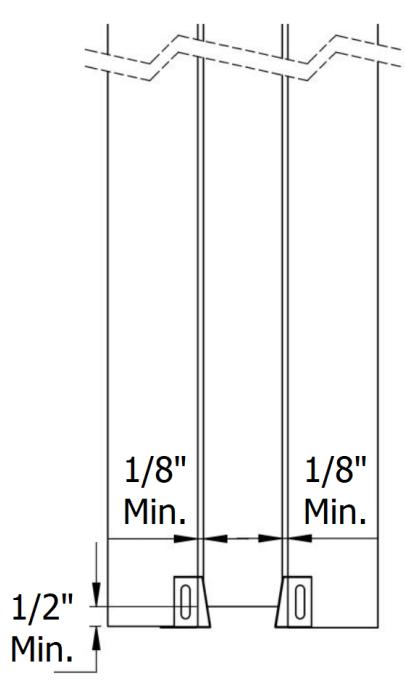

4 Install Floor Guide

• Create pilot holes to the finish split jamb using a 5/64" drill bit and the Floor Guide as templates. See Figure 4.
• • Install the Floor Guide using the M4.2 x 13mm Washer Phillips Head Wood Screw

Figure 4
