9804,9813,9815,9816 Exit Device x thru bolted trim

SARGENT & COMPANY

NEW HAVEN 9, CONN.

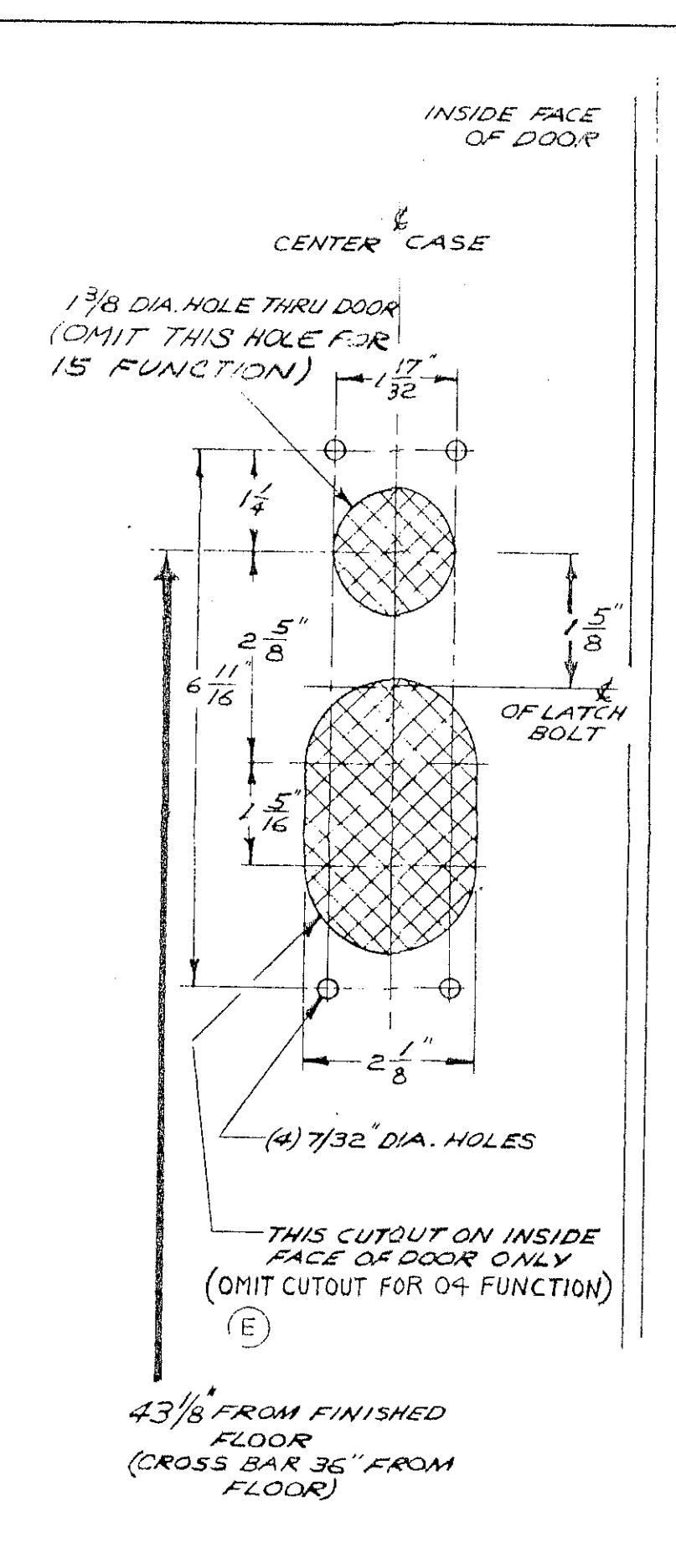

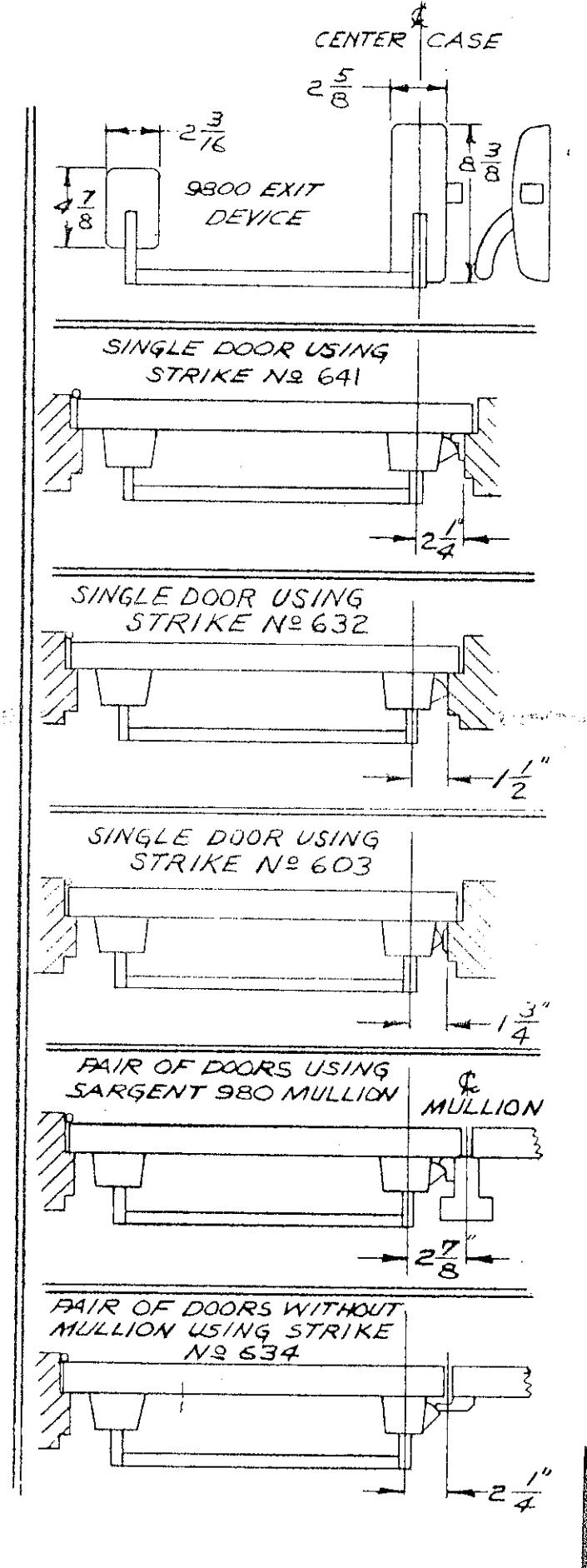

METAL DOOR TEMPLET FOR EXIT DEVICES Nº 9804,9813,9815 ¢9816 BY THRU BOLIED OUTSIDE TRIM

RELEASE DATE 20NOV 89 TEMPLET NO. 4-017 F

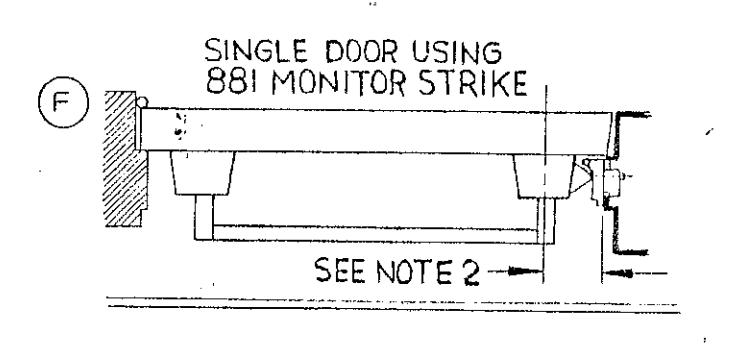

FOR MOUNTING LOCATION & RELATED INFO. OF 881 MONITOR STRIKE SEE TEMPLATE 4386.
